Description:

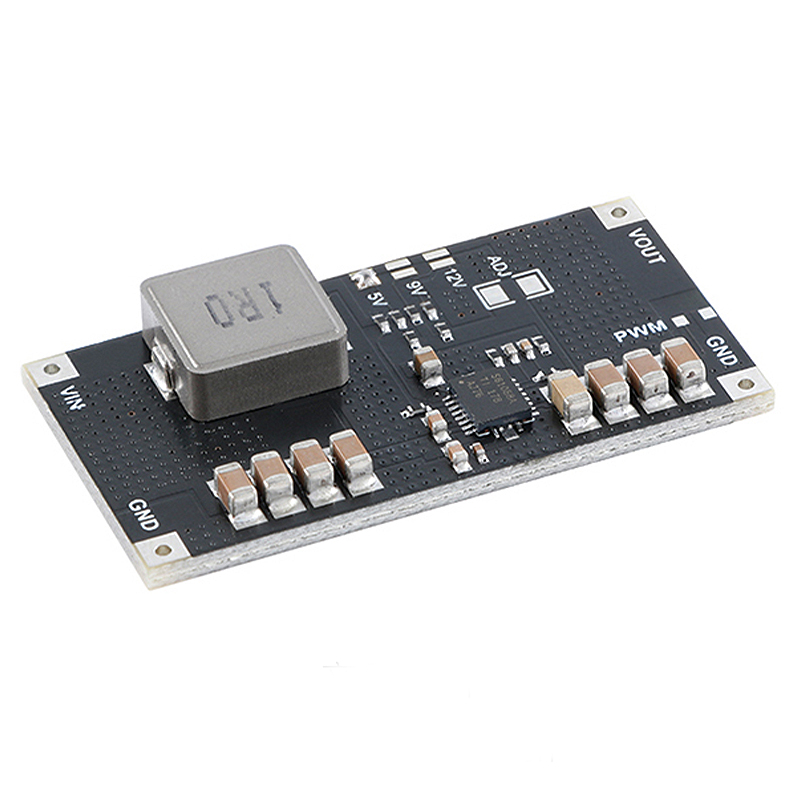

This module adopts the power chip scheme of TI TPS61088, which has stable performance, small ripple and 10A switching current capability, and the switching frequency is about 1MHZ. The module provides PWM and PFM working modes, which can be adjusted by users themselves (the default PFM low power consumption mode is shipped). The high-quality tantalum capacitor (adjustable version) and high-current inductor are on board, and the high-quality components adopted further improve the performance and stability of the module.
When the module outputs high power, it still has the stability that most other booster modules can't match. It is a good choice for users to use multiple lithium batteries in parallel to boost the high current applied to 5V voltage 4A/5A. It is also not a problem to boost the voltage to 9V/12V, and the output power can reach 30W, 9V and 12V.
Voltage output, high current occasions, users only need to do a good job of heat dissipation to obtain good on-load output ripple.
Specifications:
Module type: Switching power supply, boost power supply

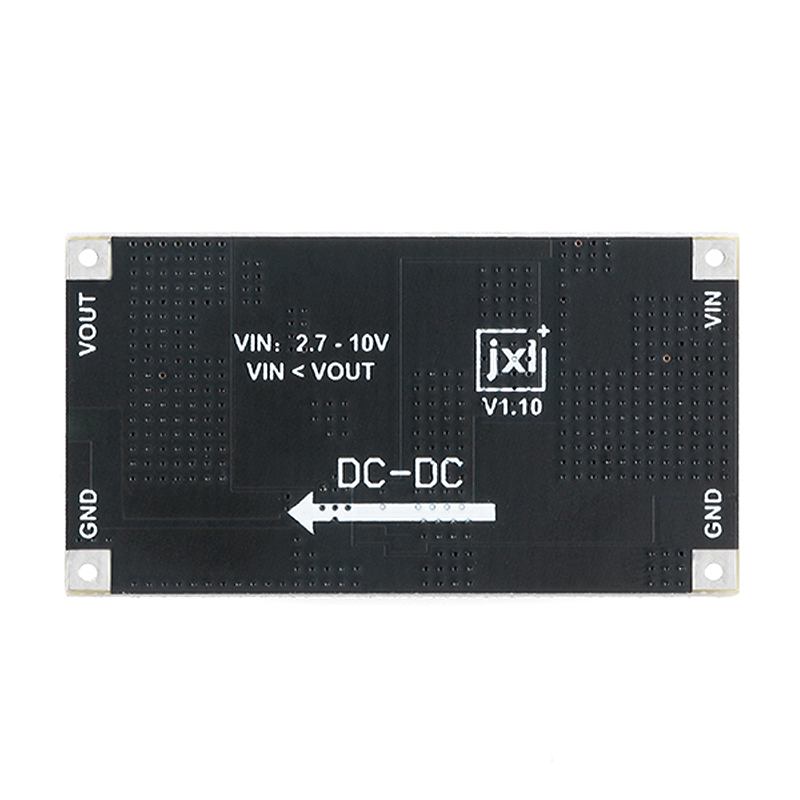

Input voltage: DC2.7-12V
Input current: 9A (max)
Output current: determined by input
Output voltage: DC4.5-12.6V
Output power: 30W (max), requiring heat dissipation measures
Switching frequency: approximately 1MHz
Working mode: PWM/PFM
Features:

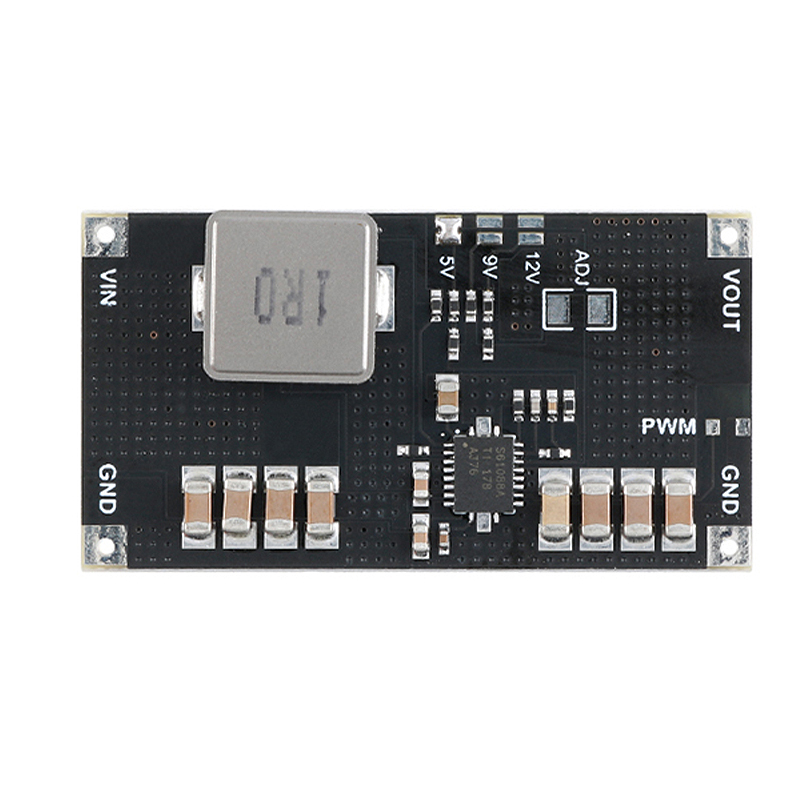

1.Power chip: TPS61088
2.The product is made of high-quality materials with guaranteed quality
3.The product has stable performance, small ripple, and 10A switching current capability
4.Fixed voltage 5V/9V/12V optional
5.Perfect for DIY enthusiasts
Package Include:
1x Module Board
