Product Parameters:
(1)Programming software: ArduinoIDE
(2)Voltage: 7.2~8.4V
(3)ESP32-S3-WROOM-1-N16R8 module and Renesas P7FA4M1AB3CFM#AA0 microcontroller are adopted.
(4)Built-in ESP32-S3 series SoC, Xtensa® dual-core 32-bit LX7 microprocessor
(5) 16MB Flash, 8MB PS RAM, 384kB ROM

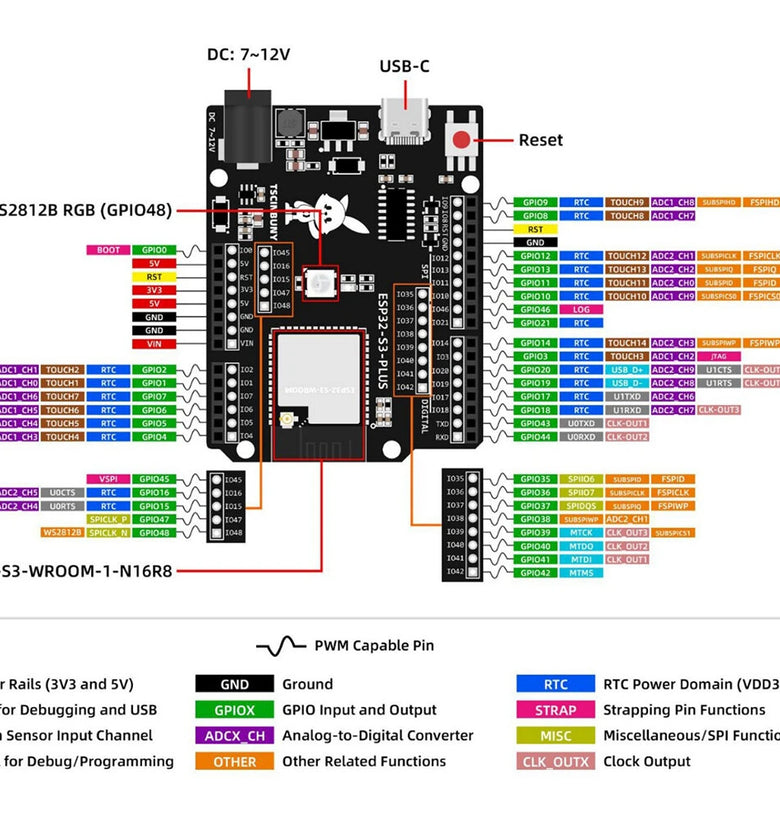

(6)36 GPIO ports
(7)On-board PCB antenna, support external antenna
(8)Support 802.11b/g/n standard 2.4GHz Wi-Fi, Bluetooth 5.0
(9) Data rate 150Mbps
(10) ADC, GPIO, I²C, I²S, SPI, PWM, UART, USB
(11) Operating Temperature -40°C ~ 65°C (TA)
(12)Communication mode: UART/WIFI
(13)Product Size: 20cm*13cm*4.5cm
(14)Weight 460g
Package Include:

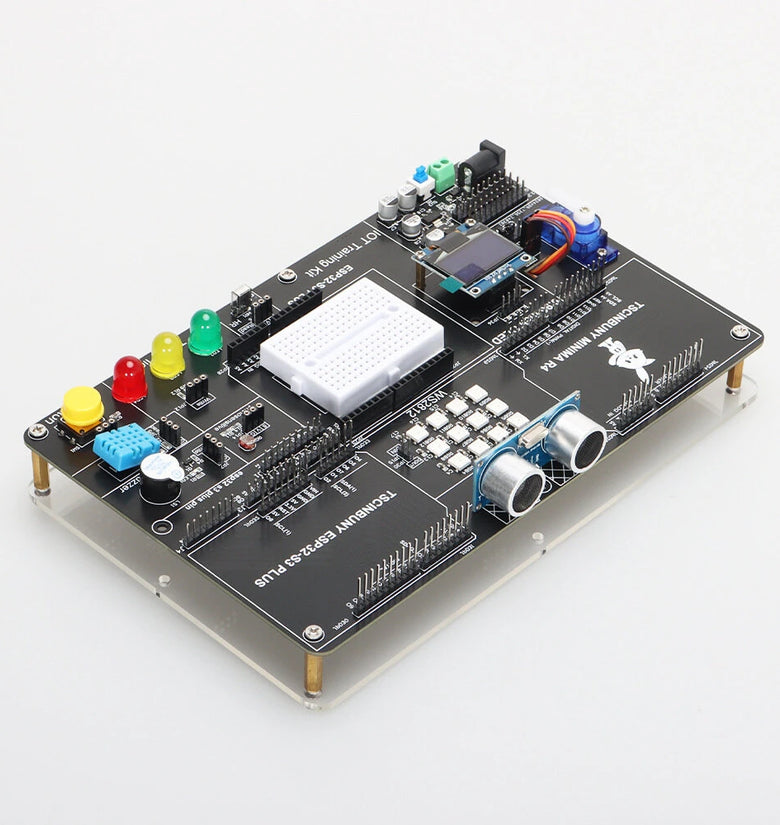

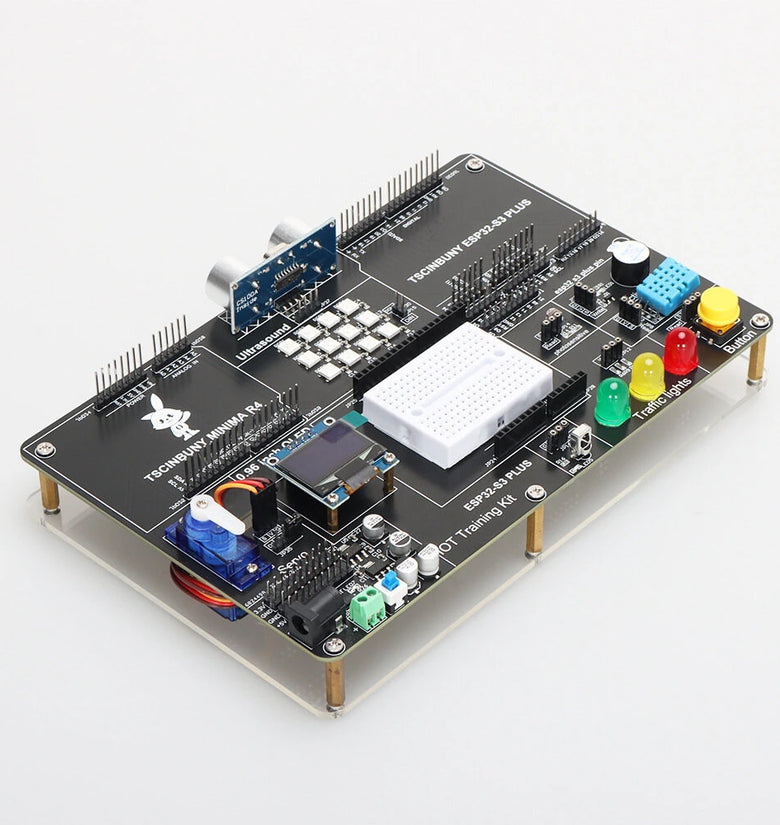

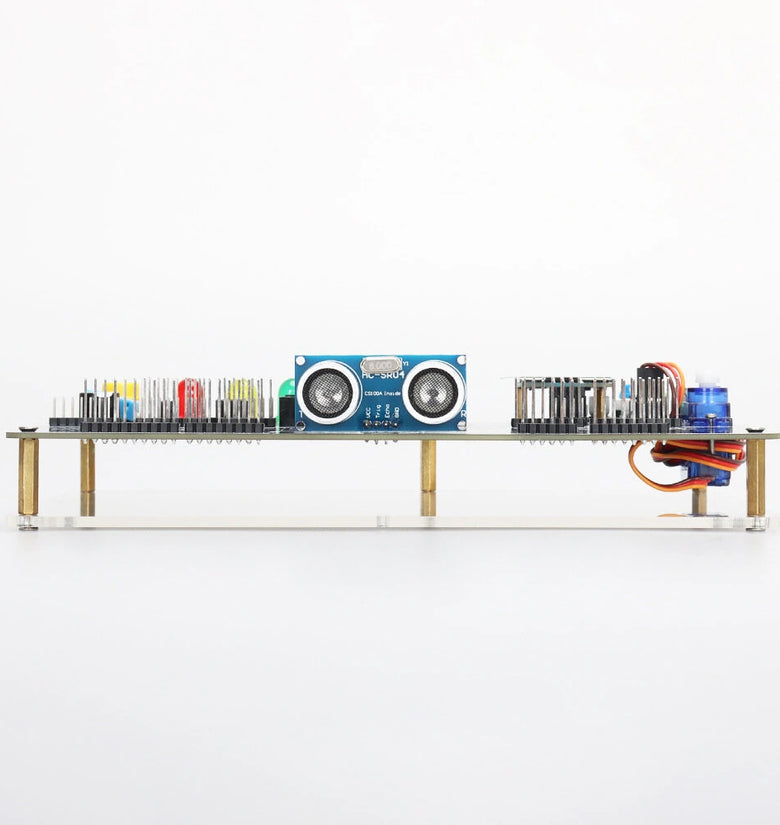

1x Module Board
(The other items are not includes, for reference only)
