Description:

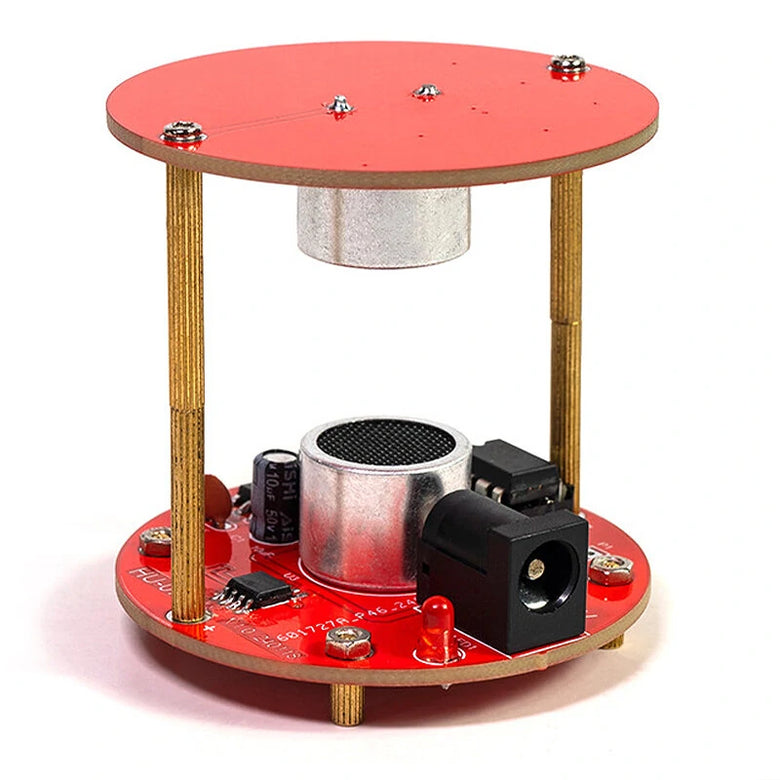

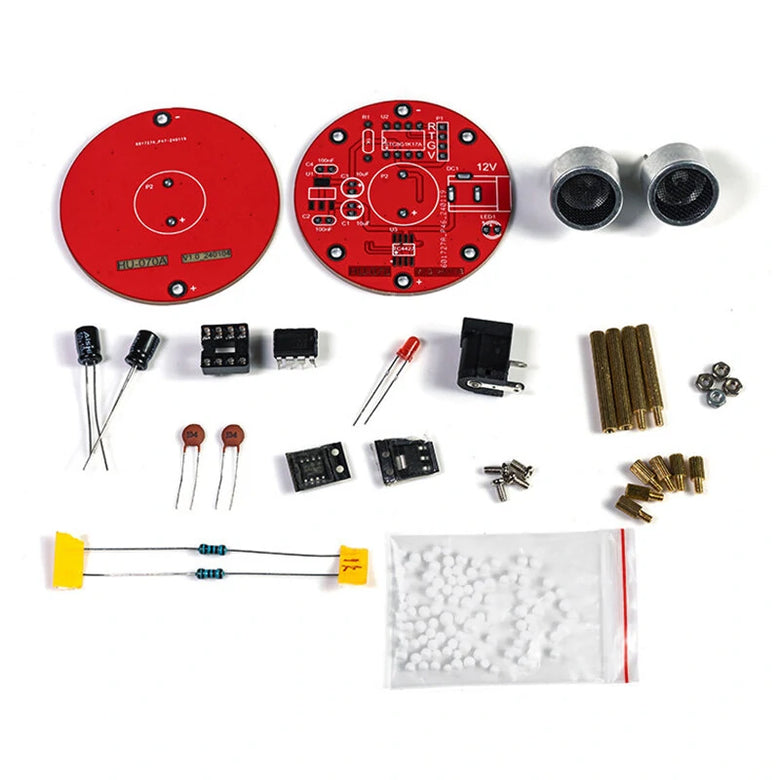

1. This is a mini ultrasonic levitation standing wave controller production kit that can levitate light objects. The kit includes an ultrasonic transmitter, receiver, control circuit board and most of the selected in-line components, which has a higher welding success rate.
The kit mainly provides users with an experimental platform to help them understand and explore ultrasound
2. The application of technology in the field of suspension control, as well as the principle and application of standing wave effect.
Specifications:
Kit name: HU-070 ultrasonic levitation standing wave controller production kit
Power supply: DC 9~ 12V
Working voltage: 9V or 12V
Operating current: 9V is 36mA, 12V is 45mA
PCB length: for radius 25MM, purely manual measurement, there is an error of 1-2mm
Kit height: 46MM or 46+5MM freely adjustable

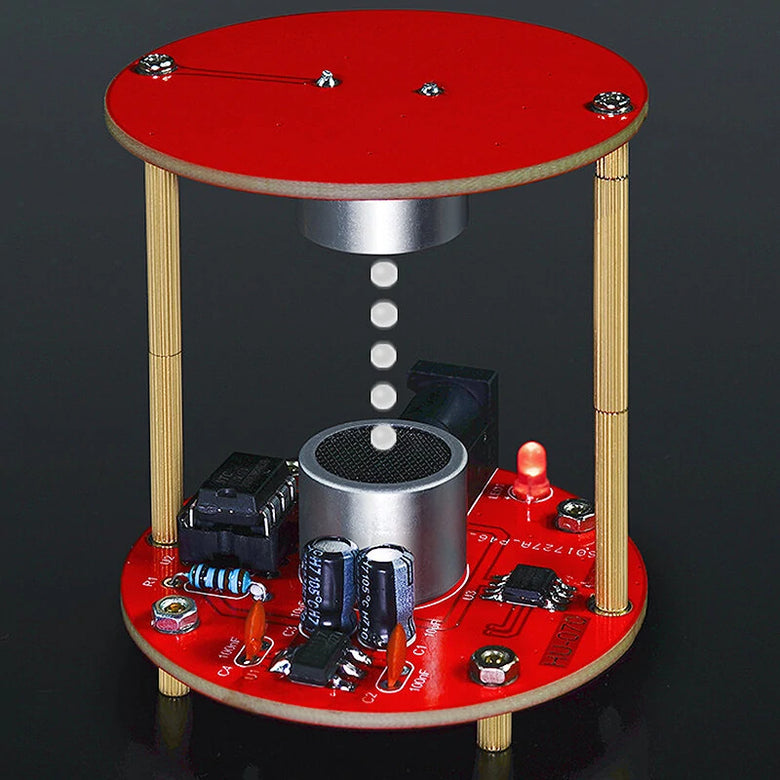

Can suspend light objects, such as foam, etc. for a long time
Double-layer circuit board design, simple circuit and easy to solder.
NOTE: This is a DIY assembly kit, you will need to solder.
>>>Manual: Click here to open<<<
Package Includes:
1x Accessory Kit
1x US plug Power Adapter(Optional)
