Description:

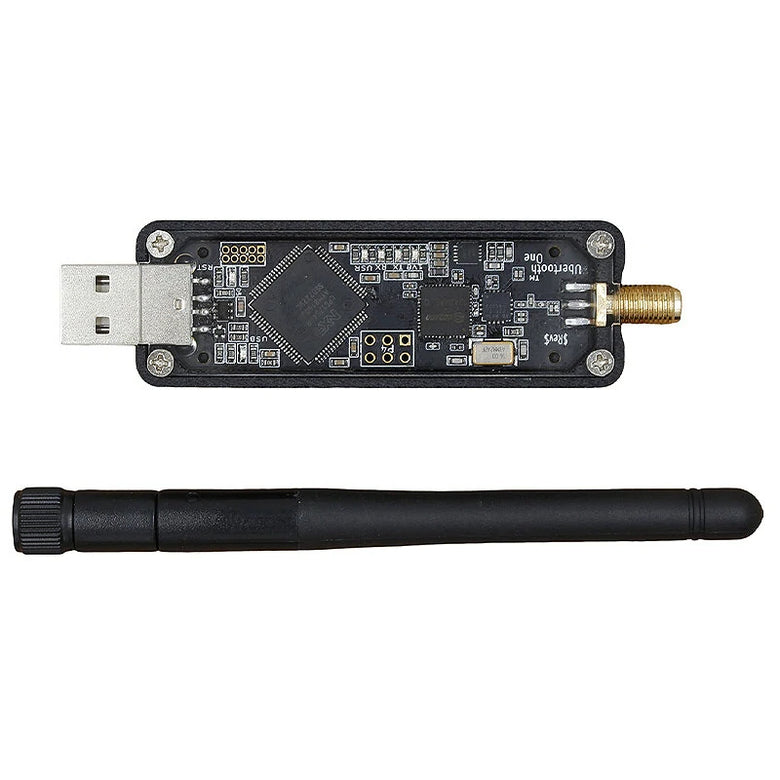

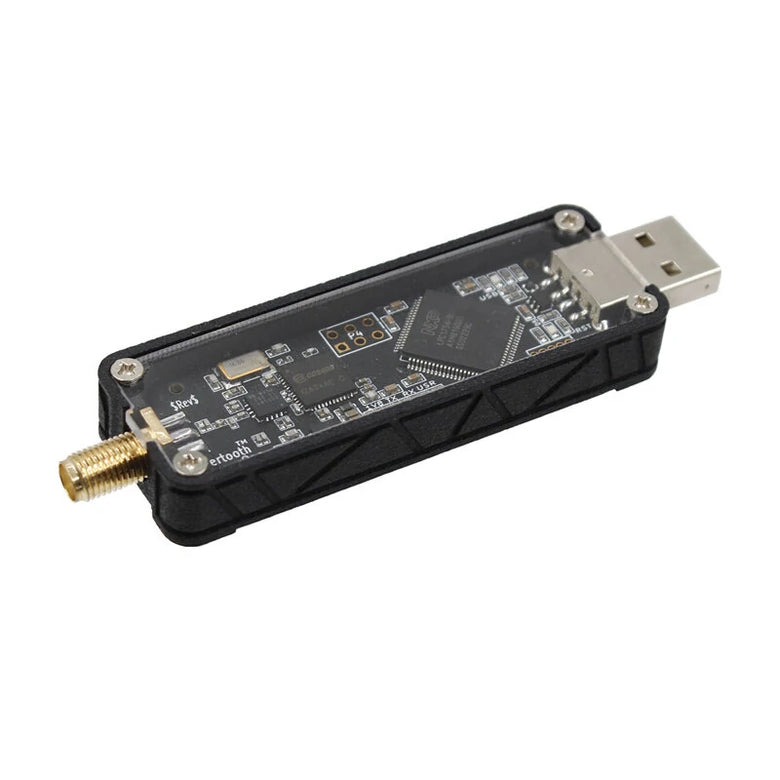

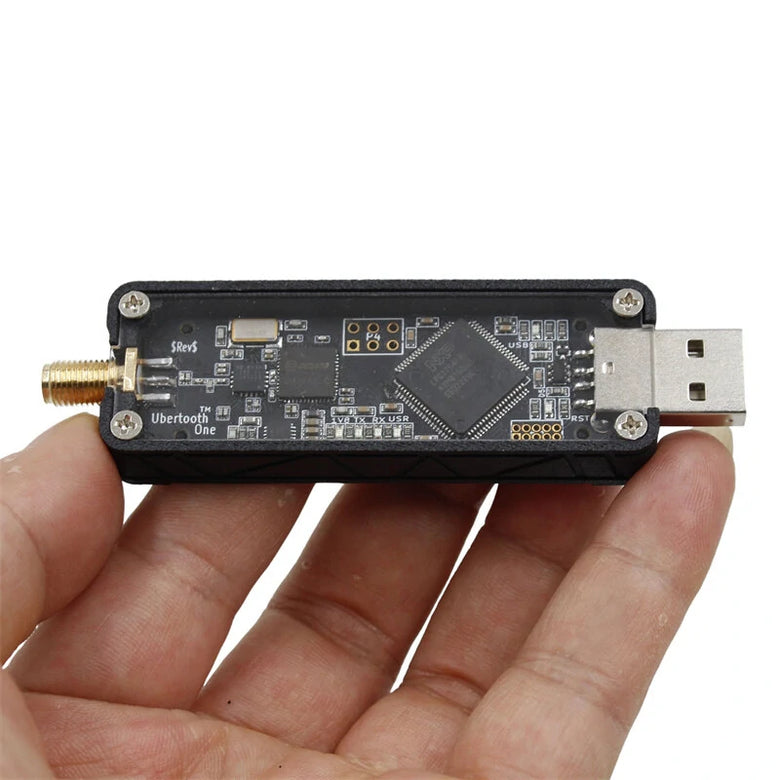

The upgraded version adopts the latest firmware Uber Tooth-2020-12-R1 Uber Tooth One is an open source 2.4 GHZ wireless development platform, which is suitable for bluetooth experiments. Based on the powerful LPC175XARM CORTEX-M3 microcontroller and full-speed USB 2.0, UBERTOOTH ONE is a good way to develop and customize Class 1 comparable bluetooth devices. The difference between UBERTOOTH and other bluetooth development platforms is that it can not only send and receive 2.4GHZ signals, but also run in monitoring mode to monitor bluetooth traffic in real time. This working mode has existed in low-cost WIFI module for many years, and has been applied in research, development and security audit countless times, but until now, there is no such solution in bluetooth standard. In addition, because it is a completely open source platform (software and hardware), the schematic diagram and code can meet all your needs at any time.
Features:
1. 2.4 GHz transmission and reception.
2. The transmitting power and receiving sensitivity are comparable to those of Class 1 bluetooth devices.
3. Standard Cortex debugging connector (10-pin 50-mil JTAG)
4. In-system programming (ISP) serial connector
5. An expansion connector designed for Ubertooth communication or other future uses.
6. Six indicator lights
7. Attached with 2.4 GHz antenna
Package Include:
1x Module Board
1x 2.4GHz Antenna
