Operating Voltage: 3.3V / 5V
Interface: 3-wire SPI, 4-wire SPI

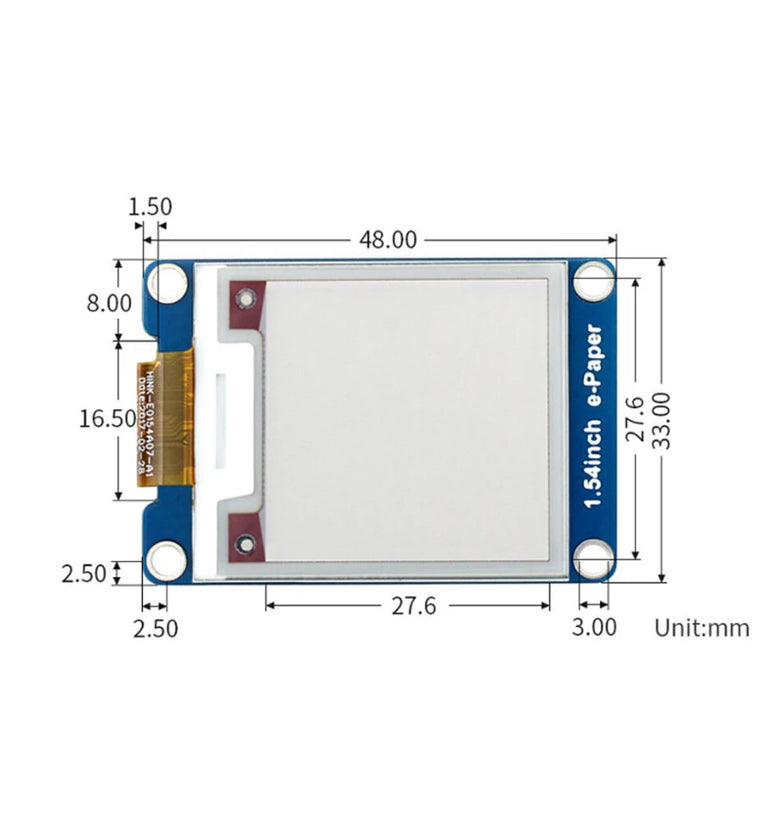

Overall Dimensions: 48 × 33mm
Display Area Dimensions: 27.6 × 27.6mm
Pixel Pitch: 0.138 × 0.138mm
Resolution: 200 × 200 pixels
Display Colors: Red, Black, White
Grayscale Levels: 2
Full Refresh Time: 14 seconds
Refresh Power Consumption: 26.4mW (typ.)
Standby Current: <0.01µA (near 0)
Viewing Angle: >170°
Features:
1. Low Power Consumption: With an exceptionally low standby current of <0.01µA, this e-Paper display ensures energy efficiency, making it ideal for battery-powered devices or IoT applications.
2. High Display Resolution: The 200x200 pixel resolution offers sharp and clear visuals, suitable for detailed graphics, text, and symbols.
3. Wide Viewing Angle: With a viewing angle exceeding 170°, content remains uniformly visible from various perspectives without distortion.
4. Tri-Color Display: Red, black, and white color options expand display versatility, enabling vivid visual presentations for diverse applications.
5. Compact Design: Measuring only 48 × 33mm, this module is perfect for projects requiring minimal space, enabling seamless integration into compact devices.

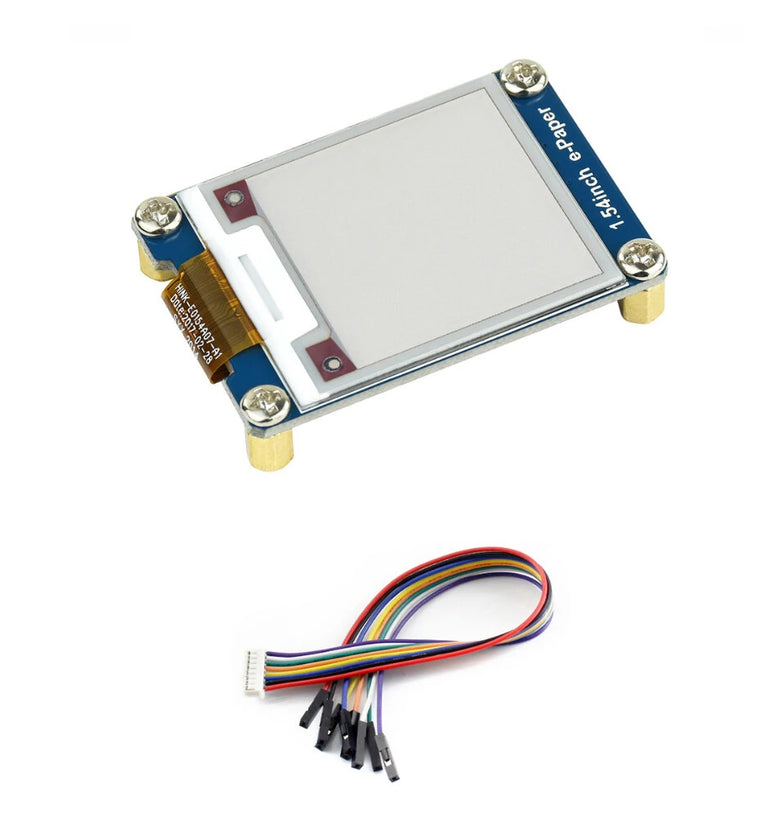

Package Included:
1 x 1.54-inch e-Paper Module (B)
1 x PH2.0 8PIN Connector Cable (20cm)

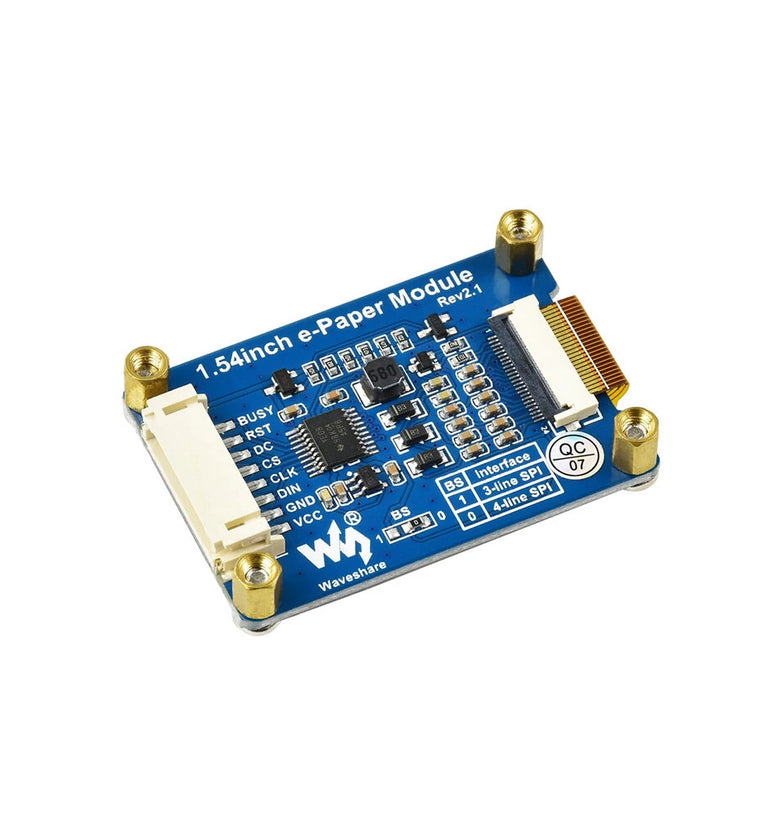

Interface:
| SYMBOL | DESCRIPTION |
| VCC | 3.3V/5V |
| GND | Ground |
| DIN | SPI MOSIpin |
| CLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output, low active |
