Specifications:

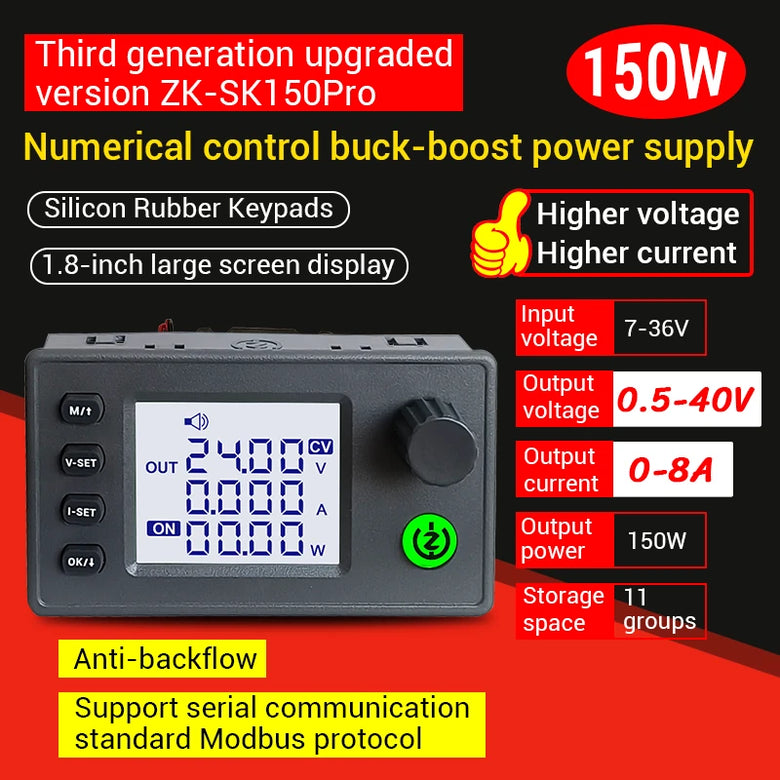

- Product Name: CNC DC Voltage Buck-Boost Power Supply
- Product Model: ZK-SK150Pro
- Input Voltage: 7-36.00V
- Output Voltage: 0.5-40.00V
- Output Current: 0-8.000A
- Output Power: 150W
- Voltage Accuracy: ±0.3%+3 words (Calibratable)
- Output Current Accuracy: ±0.5%+3 words (Calibratable)
- Voltage Resolution: 0.01V
- Current Resolution: 0.001A
- Data Group Storage: 11 groups

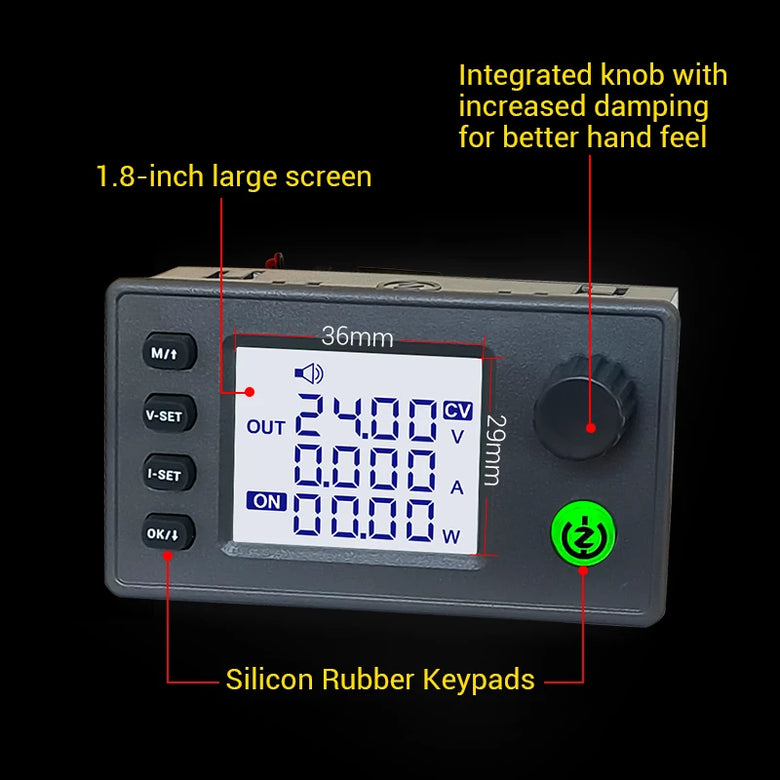

- Screen Size: Upgraded 1.8-inch screen, 36*29mm visible range
- Conversion Efficiency: About 88%
- Product Size: 83x48x48mm (Height does not include rotary encoder)
- Net Weight of Product: 112g
- Weight with Packaging: 132g
Protection Mechanism:
- Input Anti Reverse Connection: Yes
- Output Anti Backflow: Yes
- Under Voltage Protection (LVP): 6.0-40V Adjustable, Factory Default Value of 6.0V
- Output Overvoltage Protection (OVP): 0.5-42V Adjustable, Factory Default Value 42V
- Output Overcurrent Protection (OCP): 0.001-8.2A Adjustable, Factory Default Value 8.2A
- Output Overpower Protection (OPP): 0.1-180W Adjustable, Factory Default Value 160W
- Over Temperature Protection (OTP): 30-150℃ Adjustable, Factory Default Value of 100℃
- Timeout Protection (OHP): 1-99 Hours and 59 Minutes, Factory Default Off
- Overcapacity Protection (OAH): 0.001-9999Ah, Factory Default Off
- Superenergy Protection (OWH): 0.001-4000kWh, Factory Default
