Description:

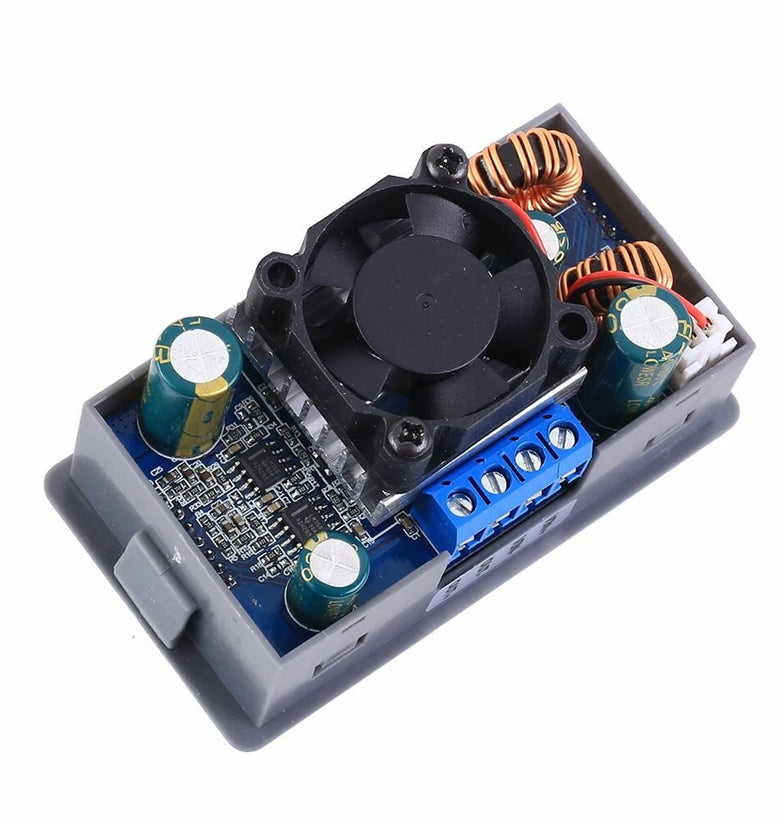

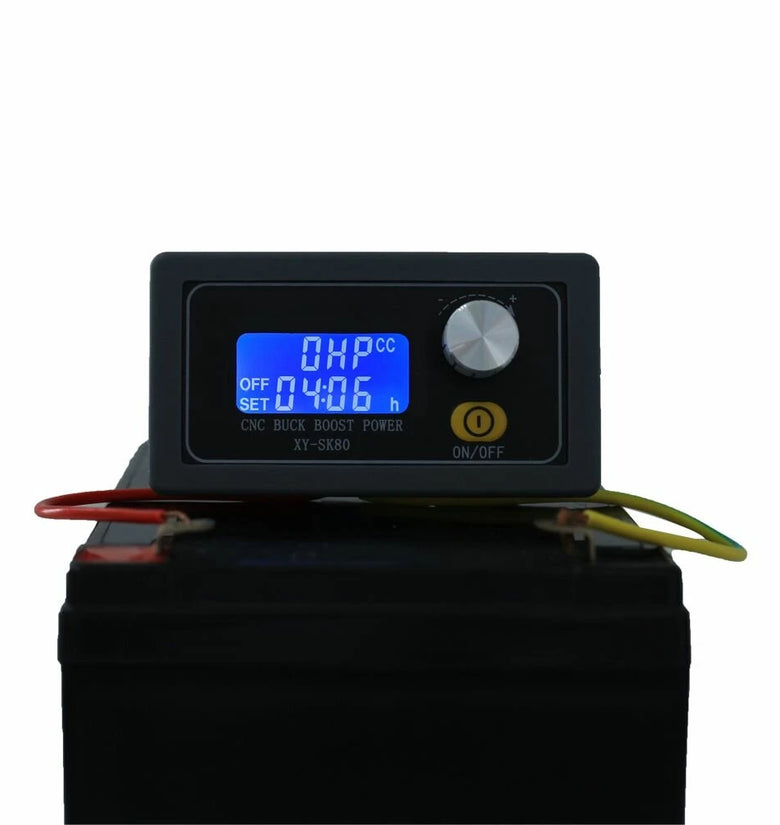

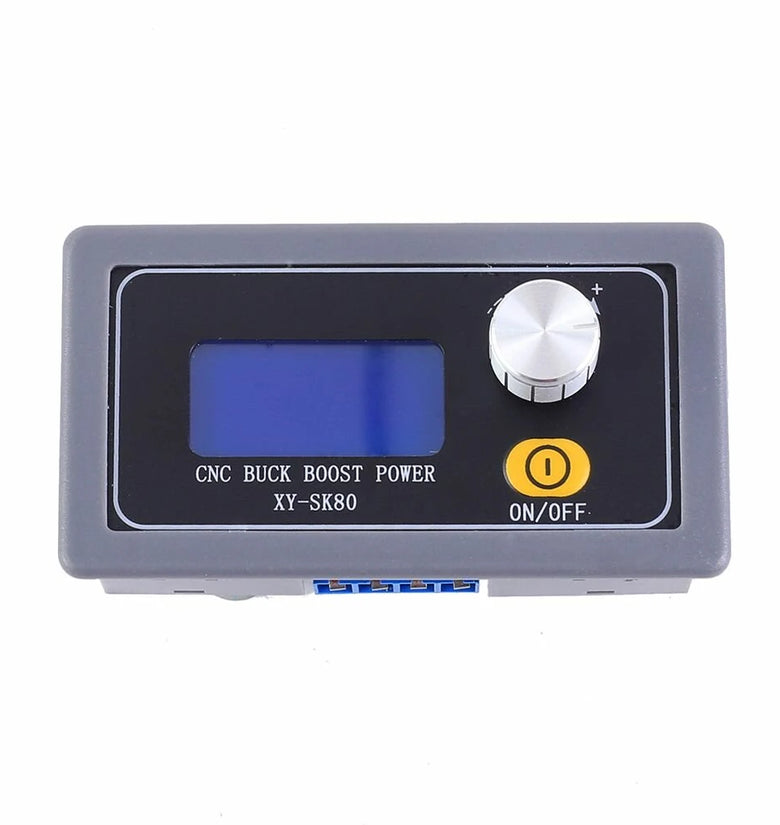

XY-SK80 is a DC adjustable constant voltage constant current automatic buck-boost power supply module with LCD display.HD display input voltage and output voltage, current, power, display status, capacity, energy and time.Adjustable stable output voltage and current.Set output current to meet the demand.It can be used as ordinary buck power supply module, charger and LED constant current driver.Simple and efficient, practical.
It supports solar charging and can be connected to solar battery.
Features:
1>.High quality heat sink
2>.Multiple parameters are displayed simultaneous
3>.Enabled/disabled output
4>.Automatic buck/boost voltage
5>.Constant voltage constant current output
6>.Solar charging
7>.Lock output current
8>.Support anti-reverse protection
9>.Support anti-backflow protection
10>.Support output short circuit protection
11>.Support over-voltage protection
12>.Support over-current protection
13>.Support over power protection
14>.Support over temperature protection
15>.Support display input voltage
16>.Support display output voltage, current, power
17>.Support working status indicator
Specifications:
Working Voltage:DC 6.0V~36V
Output Voltage:DC 0.6V~36V
Output Current:0.0A~5.1A
Output Power:80W
Voltage Display Precision:0.5%
Voltage Display Resolution:0.01V
Current Display Precision:0.5%
Current Display Resolution:0.001A
Conversion efficiency:About 88%
Anti-reverse Protection:Yes
Anti-backflow Protection:Yes
Short Circuit Protection:Yes
Work frequency:180KHz
Over-temperature Protection:100℃
Working Temperature range:-20℃~100℃
Working Humidity range:0%-95%RH
Size:79x43x53mm
Note:
1. Input undervoltage protection voltage is 4.7V. Module need re-power if input less than 4.7V.
2. It is a DC power module,So it can not connect to AC power.
3. Please connect input before connect battery when use as charge and make sure output voltage is higher than battery voltage.
4. ’VIN-’ and ‘OUT-’ can not be connect together.Otherwise module can not support constant current output.
5. Keep input more than 15V if need XY-SK80 output in maximum power.
6. Please make sure input power is more than load power.
7. Please step down output power if module is hot.
8. Please read use manual and description before use.
Application:
Ordinary power supply
Battery charger
LED drive power
Instrument voltage display
Test meter
Circuit test
Power conversion
Package Included:
1 x XY-SK80 Step UP Down Power Supply Module
