Description:

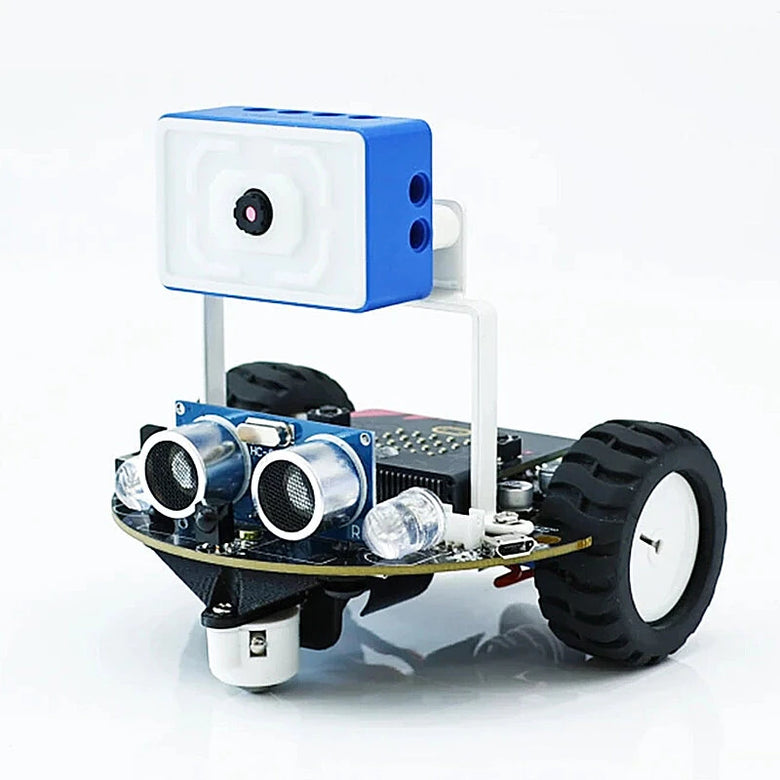

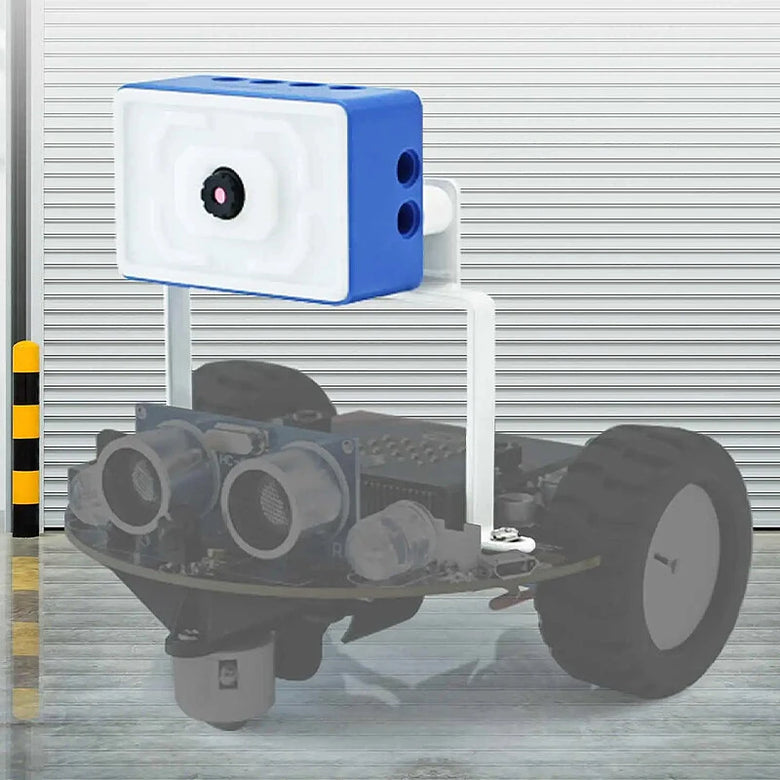

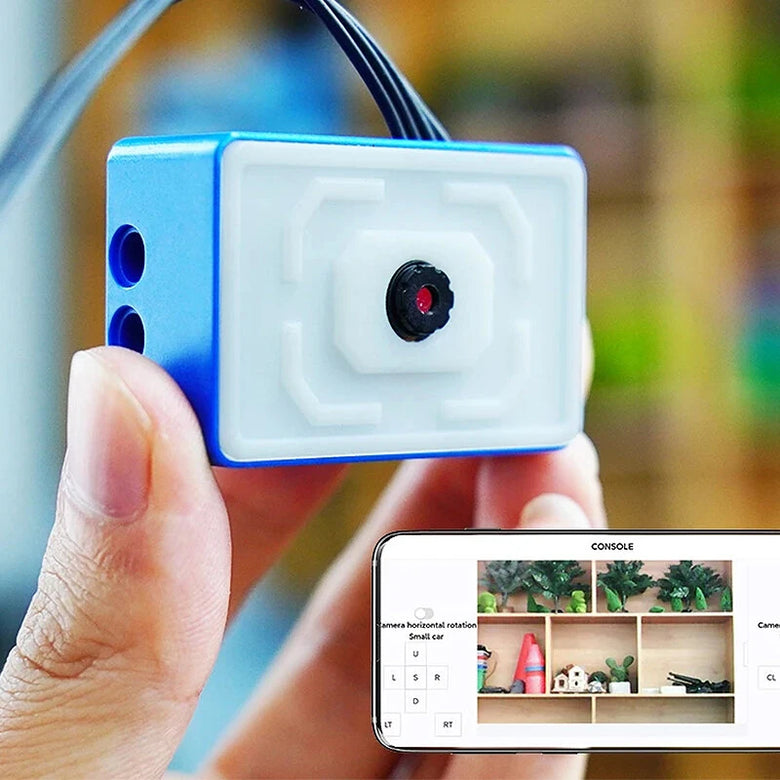

The ESP32-CAM module is equipped with an ESP32-S3 chip and a 2MP camera.After powering on, it automatically releases the WIFI hotspot (AP mode) and can also be connected to an existing WiFi network (STA mode). Use your phone to connect to its WiFi hotspot or connect to the same WiFi as it to view the live video stream. The module communicates with STM32, AR and other microcontrollers through the serial port. Users can install the camera module on the smart car through the bracket/PTZ. Yahboom will provide remote control APP that supports remote control of smart cars and 2DOF PTZ.

Parameters:
【ESP32-WIFI Camera】:
Antenna Module: 2.4GHz FPC(Soft Board) Antenna
Interface Type: Serial Port
Antenna Gain: 3db gain
Case Material: ABS
Operating Mode: Default AP mode+STA mode
Supply Voltage: 5V
Supply Current: 250mA
Transmission Distance: ≤20m
Size: 48*32*23.04mm
Weight: 21g
Interface Definition: 5V power supply positive TXD serial port transmitter
GND power suppy negative RXD serial port receiver

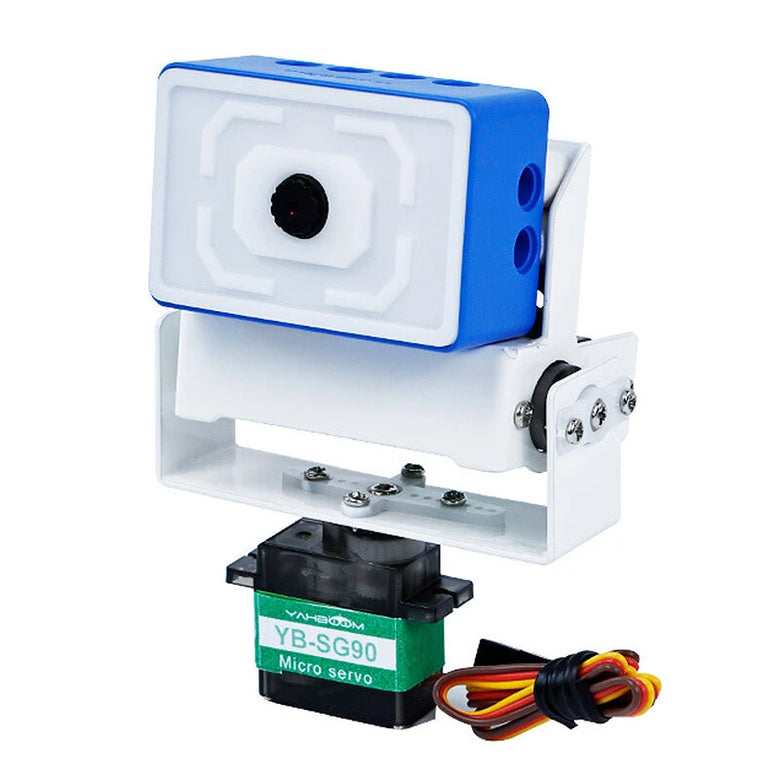

【2DOF Electric PTZ】:
Degrees of freedom: 2
Servo cable length: 245mm+5mm
Feature: It can be installed on the smart car platform with the ESP32-CAM module, supporting 2DOF movement in the horizontal and ver tical directions.
PWM pulse width range: 500-2500us correspond 0-180°
Servo Model: High quality 9G plastic servo
Working Current: 80mA
No-load Speed: 0.14sec/60°
Stall Current: 650mA
Angle Accuracy: 180°+1°
Stall Torque: 1.3kgf.cm
Size: 62*36*80.7mm
Weight: 70g

Features:
1. Basic bracket and 2DOF PTZ are available, suitable for different application scenarios.
2. Built-in ESP32-S3 chip and 2MP camera, external blue and white ABS plastic case, compatible with building block parts.
3. Can automatically launch 2.4G WiFi hotspots (AP mode), or connect to existing networks as a client (STA mode).
4. Can communicate with development boards such as STM32, AR, and Microbit through the serial port to create a smart car with WiFi camera PTZ.

Package Include:

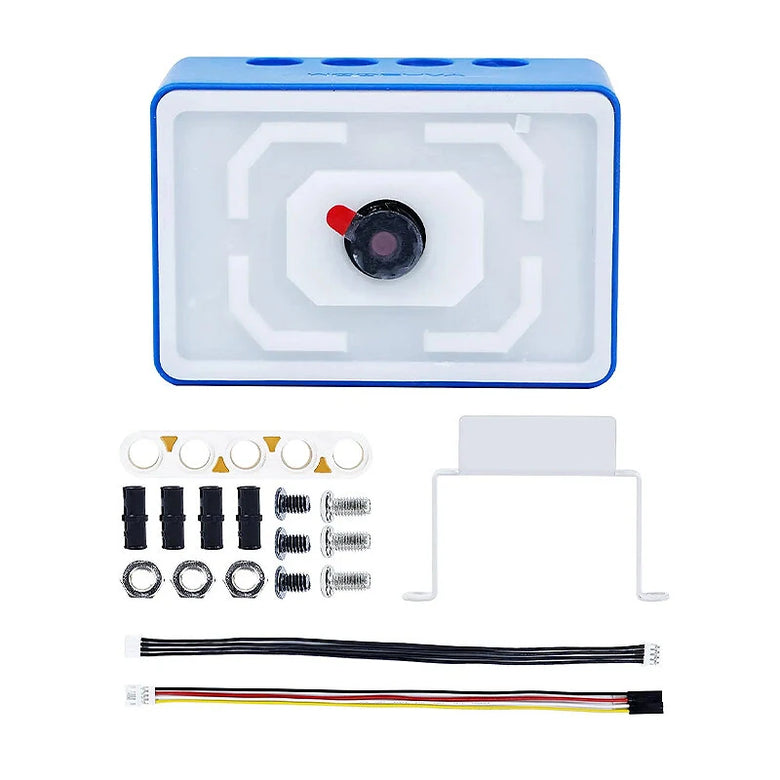

【Camera Module+Fixed Bracket】:

1x WiFi Camera Module

1x Fixed Bracket

1x 4Pin Cable

1x 4Pin Dupont Line

1x Accessory Pack

【Camera Module+2DOF PTZ】:

1x WiFi Camera Module

1x PTZ Accessories Package

1x 4Pin Cable

1x 4Pin Dupont Line

1x Accessory Package
