Tutorials link: http://www.yahboom.net/study/CUBE_Pi
Specifications:

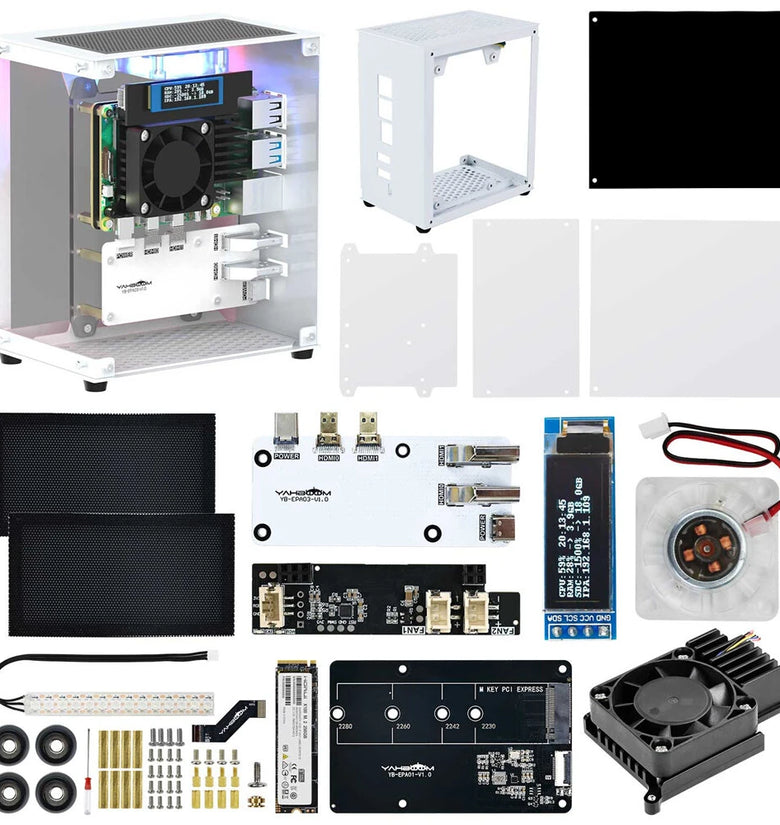

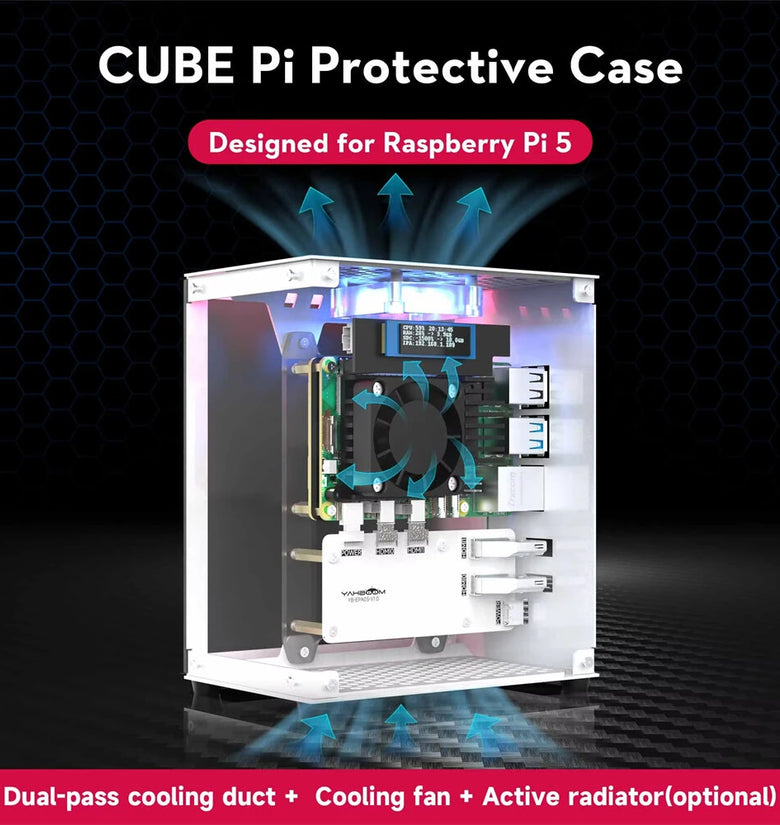

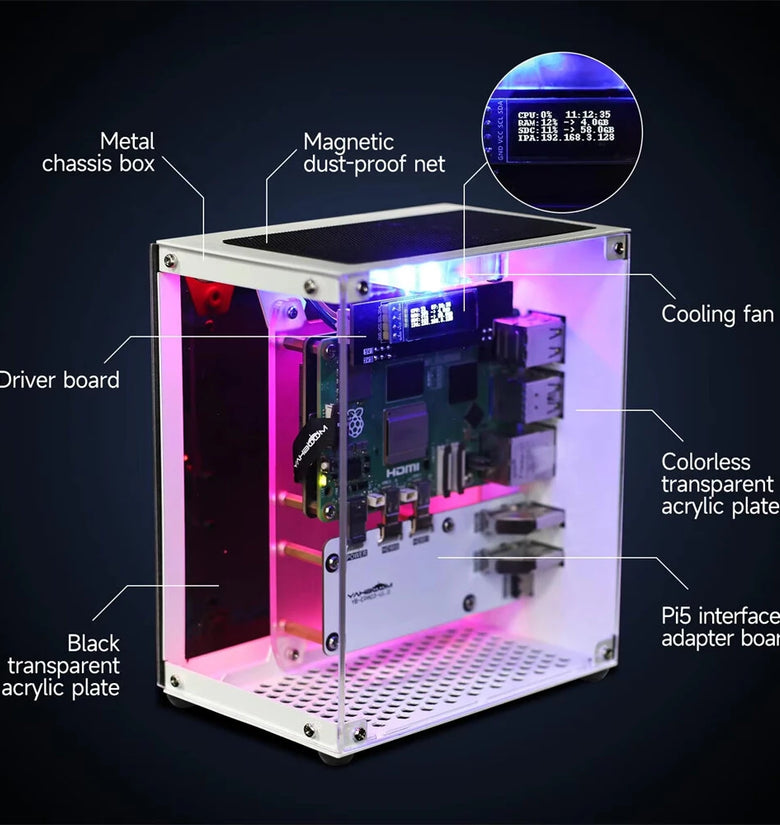

Raspberry Pi 5 CUBE Pi Case:
Material: Metal chassis box, black high-transparent acrylic, colorless high-transparent acrylic
Technology: White glossy paint
Size: 122.9x145x83.8mm
Metal Plate Thickness: 1mm
Acrylic Plate Thickness: 2mm

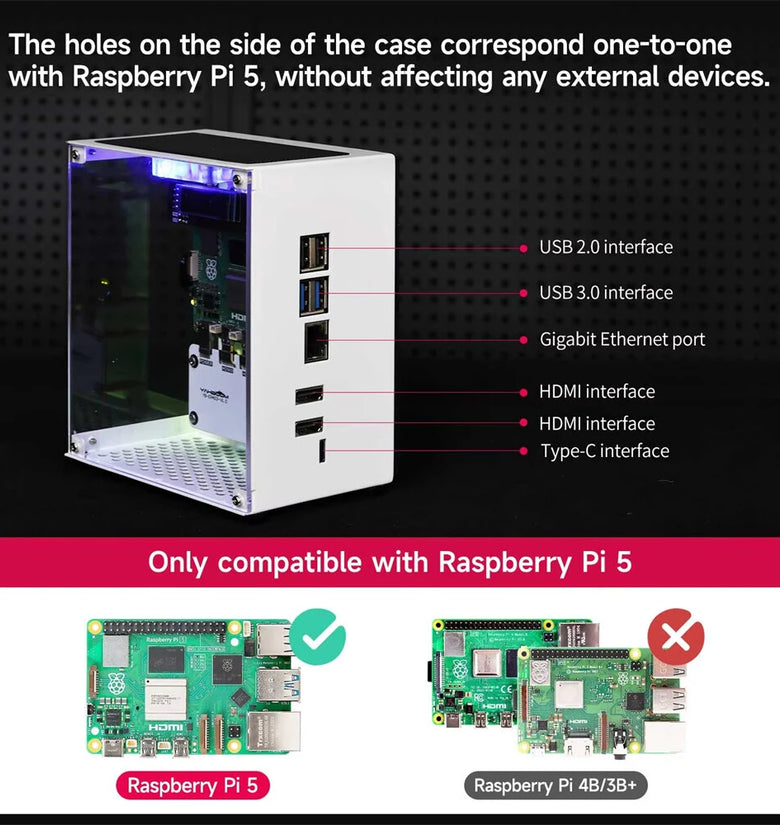

Supported Motherboards: Raspberry Pi 5 (Package is not includes)
Driver Board:
Chip Model: STMS003F3U6TR
Working Voltage: DC3.3V and DC5V
Communication Method: IIC communication
Size: 67x18x22.1mm
Output Interface: PH2.0-3P (RGB light bar interface), XH2.54-2P (Fan interface)*2

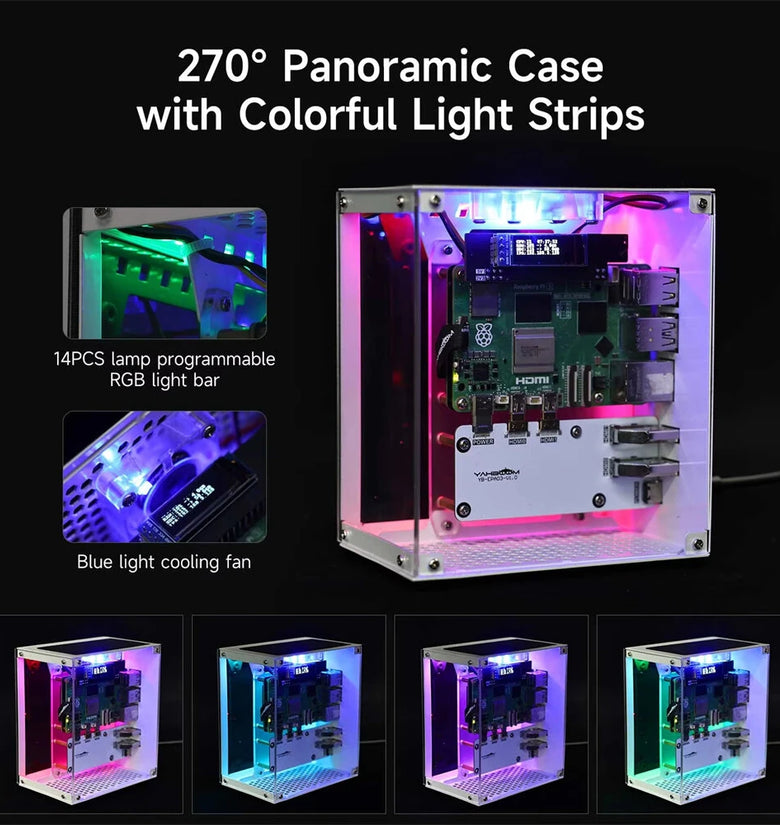

RGB Light Bar:
Lamp Bead Model: WS2812
Number of Lamp Beads: 14PCS
Material: Flexible FPC
LED: Each LED light can control the color and brightness individually
Interface: 3-wire PH2.0 interface (VCC, GND, signal line)
Color: Full color RGB
Working Voltage: 3.5V-7.5V
Data Transmission Speed: 800KHZ
Cascade: Not support cascade
Coo
