Description:
The Switch is a ZigBe-enabled Interlock/Jog/self-locking smart switch that is compatible with different hubs, including SONOFF Bridge, Amazon Hub, for Samsung SmartThings Hub and Philips Hue Hub,tuya smart Bridge.The ZigBe3.0 protocol gets the switch and ZigBe bridge to be paired in a quick way. The switch is safer to use in you home that is promised by the fire-proof and flame-retardant shell. Additionally, AES-128 encryption ensures the safety is extended to data device privacy, no worry about privacy disclosure of your device. It can be as a Zigbe router to help transmit the ZigBe signal to ensure a stable connection when multiple Zigbe devices are used for your home.

Parameters:

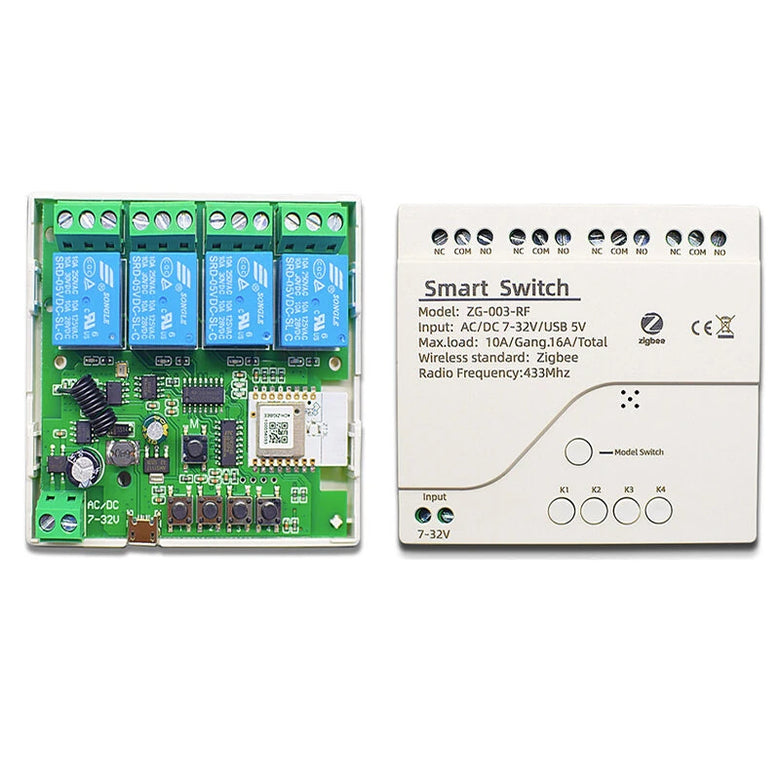

【4 Channels】:
Working voltage: AC/DC 7-32V / USB 5V or AC 85-250V / USDB 5V.
ZIGBE smart switches only output signals, not voltages.
Number of channels: 4.
Radio frequency: 433MHz.
Zigbe standards/ protocol :zigbe 3.0.
Max load : 10A/Gang 16A/Total.

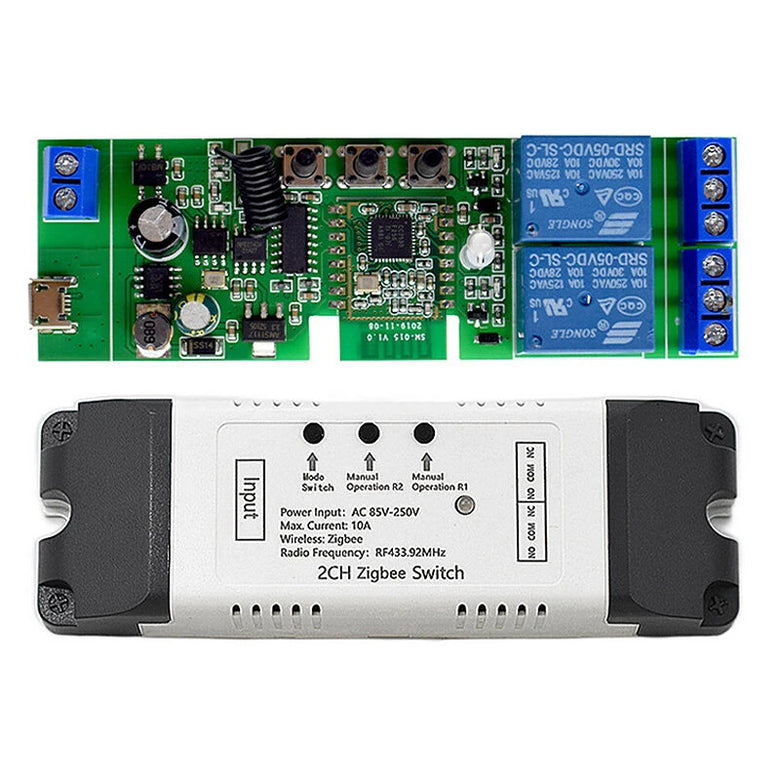

【2 Channels】:
lnput voltage: DC/AC 7V~32V / USB 5V or AC 85-250V / USDB 5V.
ZIGBE smart switches only output signals, not voltages.
Number of channels: 2.
Max.Current:2200W/10A
wireless Standard:Zigbe
Radio frequency: 433MHz.
Zigbe standards/ protocol :zigbe 3.0.
Working temperature: -20℃~70℃

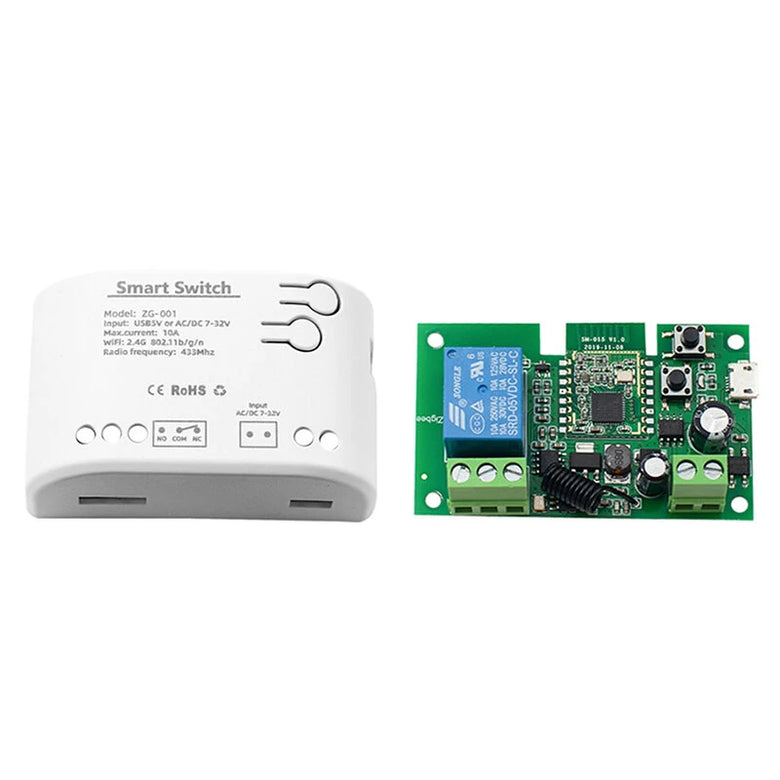

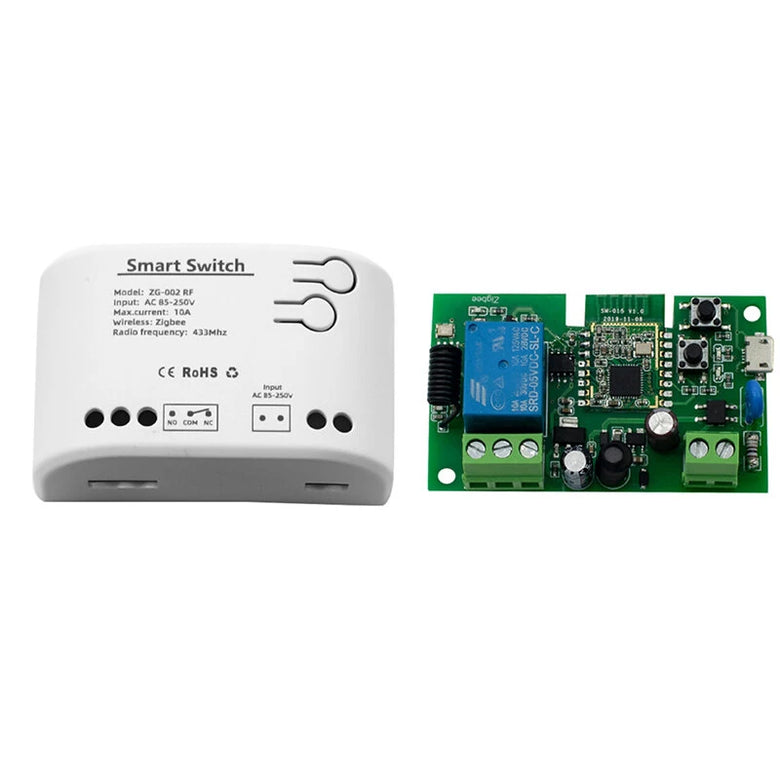

【1 Channel】:
lnput voltage: DC/AC 7V~32V / USB 5V or AC 85-250V / USDB 5V.
ZIGBE smart switches only output signals, not voltages.
Number of channels: 1.
Max.Current:2200W/10A
wireless Standard: Zigbe
Radio frequency: 433MHz.
Zigbe standards/ protocol :zigbe 3.0.
Working temperature: -20℃~70℃

Features:
*Supports zigbe gateway control.
*Supports manage numerous zigbe smart switches on one smart phone.
*Supports status tracking: it will show device status timely in the Tuya/Smart Life
*Supports remotely turn on/off household appliances, such as light, electric kettle, electric rice cooker, electric curtain, access control etc.
*Supports enabled 8 time schedule/countdown/ cycle timers for each device.
*Voice Control: Compatible perfectly with 'Amazon' Alexa, Google Assistant.
*RF Control: Can be used with RF 433MHz learning code remote control.
*Supports status tracking: device status timely feedback to the APP.


Package Include:
1x Relay Board
1x Shell

Checklist before using the device:
Must be used in conjunction with Zigbe gateway.You need to have a Zigbe gateway.Try to be close to the Zigbe gateway when pairing.

Three Working Modes:
Introduction to working modes
1. Inching mode : Switch on channel 1,channel 1 will be automatically closed after 1 seconds . The inching time can set in the APP
Other channel is same to the channel 1 . you can also change the inching time on the APP and need enter into the self-lock or interlockmode
2. Self-locking : each channel could be switched on/off seperately .
3. Interlockingmode : Switch on any channel , other channels will be switched off automatically .
If you need to change the mode,you need to press the mode button
