Specifications:

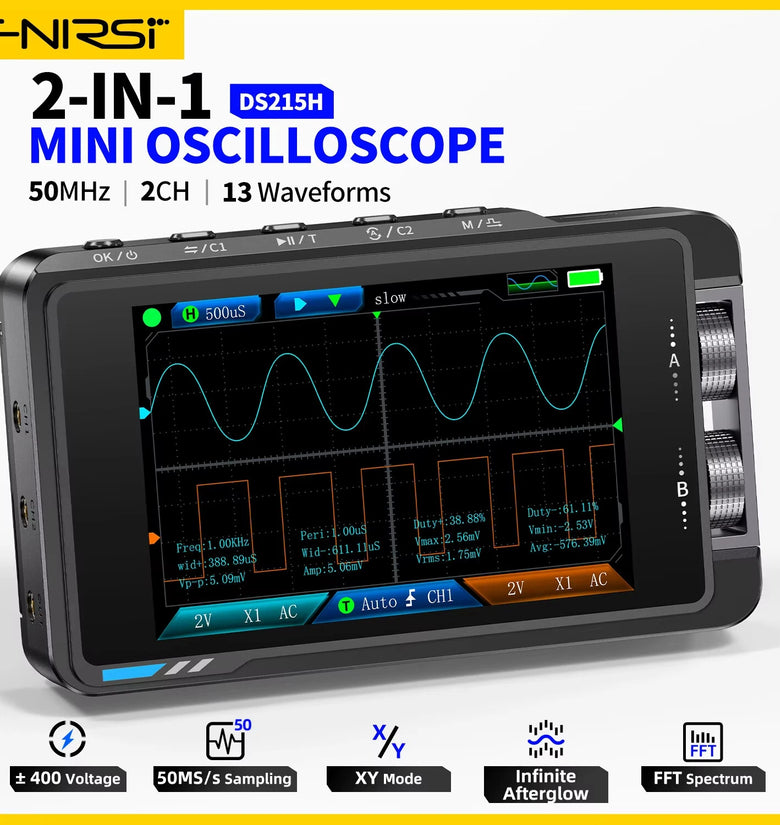

- Display: 3.5-inch IPS high-definition color screen
- Backlight: Brightness Adjustable
- Power Supply: TYPE-C (5V/1A)
- Battery: 1500mAh

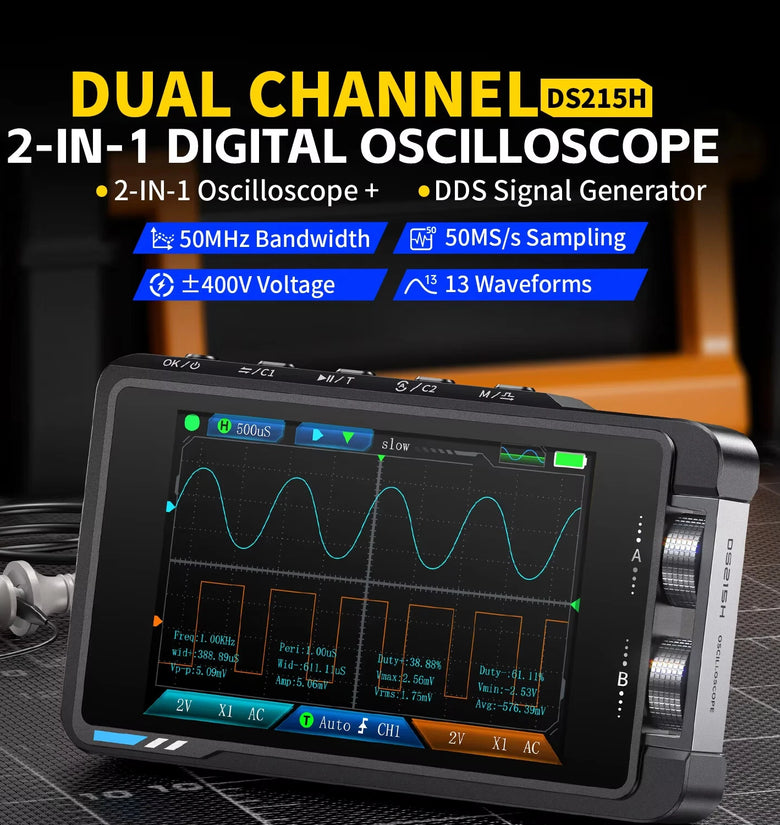

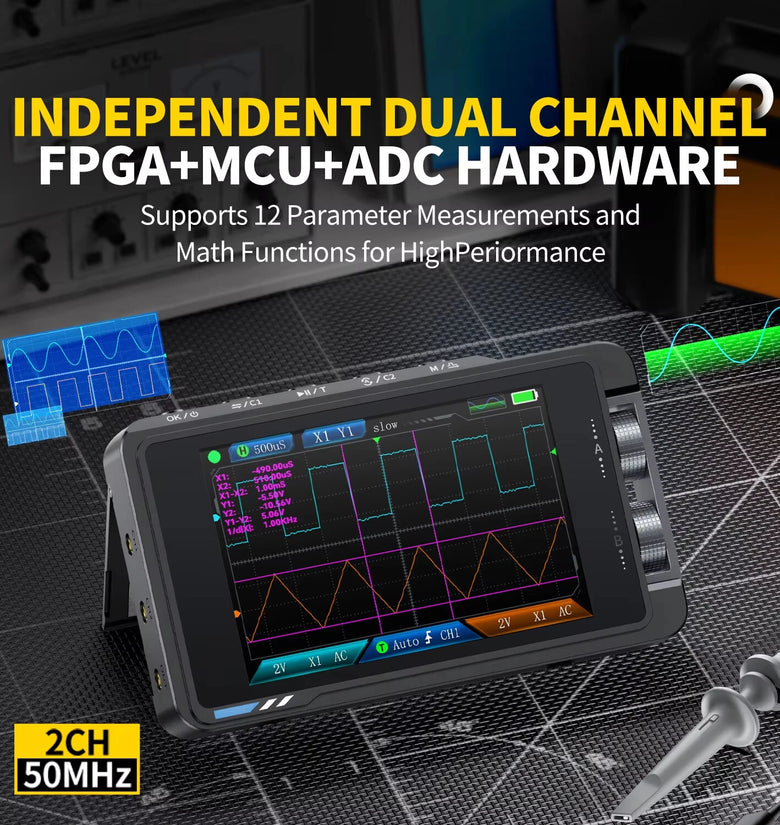

- Channels: Dual Channel
- Bandwidth: 50 MHz
- Real-time Sampling Rate: 250 MSa/s
- Storage Space: 14M
- Time Base Range: 20ns/div - 20s/div
- Vertical Sensitivity: 10mV/div - 10V/div
- Waveform Display Mode: Scroll
- Vertical Resolution: 8 bits
- Input Impedance: 1ΜΩ

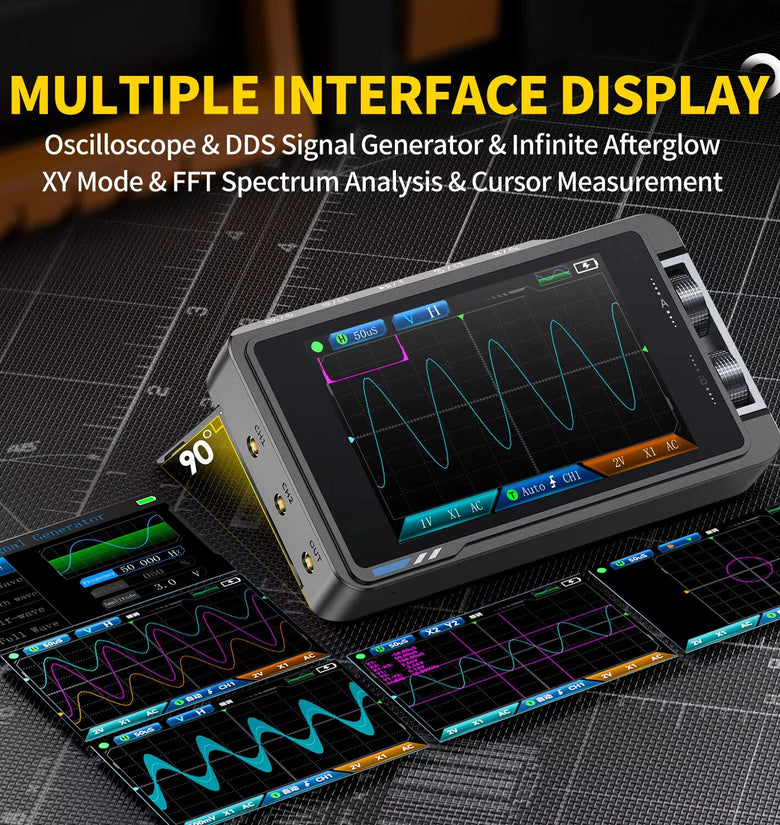

- Measurement Data: Cycle, Frequency, Vpp, Max, Min, RMS, Amplitude, Duty Cycle, Pulse Width
- Probe Attenuation Factor: 1x / 10x
- Input Coupling: AC / DC
- Trigger Type: Rising Edge / Falling Edge
- Peak Voltage: ±400V
- Trigger Level Range: 8 Grids (Positive and Negative)
- Trigger Mode: Auto / Normal / Single

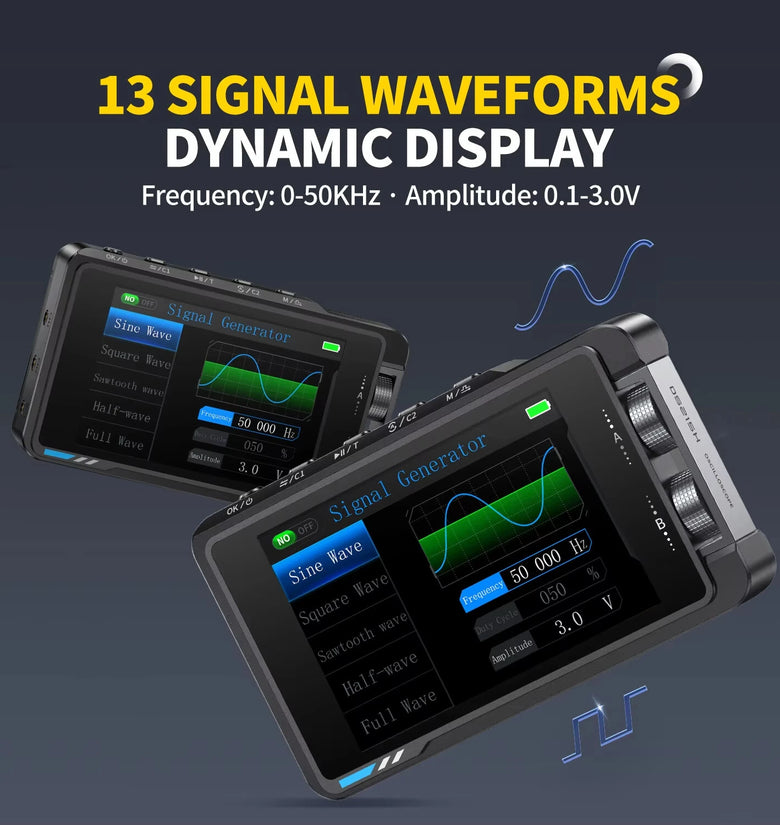

- Output Waveform: Supports Multiple Waveform Outputs
- Waveform Frequency: 0-50 KHz
- Wave Duty Cycle: 0-100%
- Waveform Amplitude: 0.1V - 3.0V
Features:
1. High Precision Measurement:
- With a sampling rate of up to 250MS/s and a 50MHz analog bandwidth, the FNIRSI-DS215H ens
