Features:
1. High-performance: This portable oscilloscope is designed with a bandwidth of 1 MHz and a 5 MSa/s sampling rate, ensuring accurate and rapid results in the field of electronics repair and maintenance.
2. Versatile Signal Generator: Features an integrated signal generator, capable of producing a wide range of waveforms including sine wave, rectangular wave, sawtooth wave, and more, with a duty cycle ranging from 0-100%.
3. Compact and Lightweight: Weighing just 100 grams and with dimensions of 99 x 68.3 x 19.5 mm, this device is easy to carry and perfect for on-the-go engineers.
4. User-friendly Interface: Equipped with a 2.8-inch display with 320 x 240 PPI resolution, providing a clear view of readings and waveforms.
5. Long-lasting battery: Powered by a 1000mAh lithium battery for sustained use, and can be conveniently charged via USB (5V/1A).
Specifications:

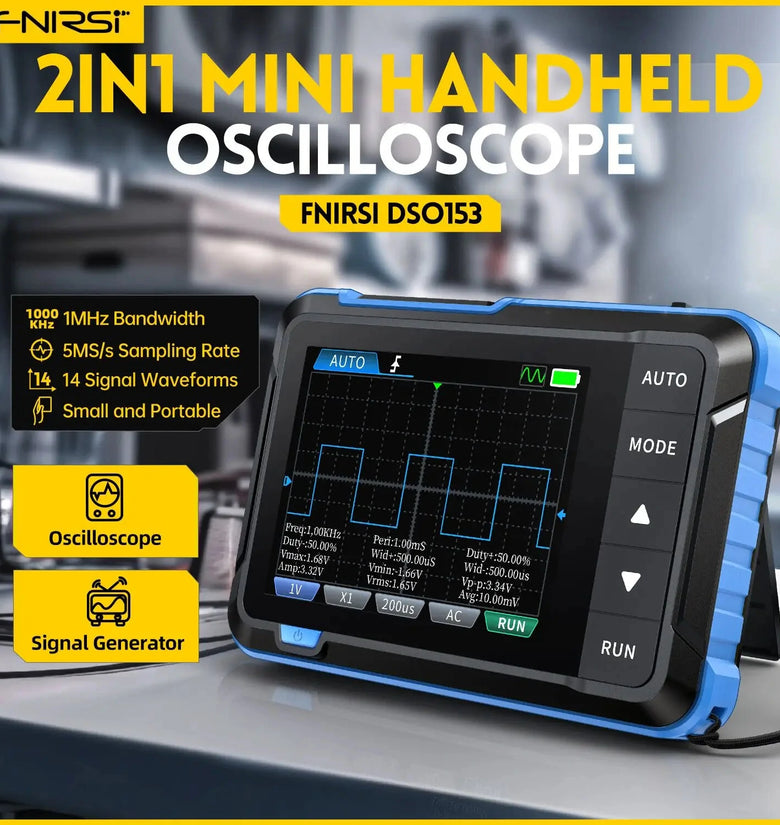

Brand: FNIRSI
Model: DSO153
* Mini Oscilloscope *
Sampling rate：5MSa/s
Bandwidth：1MHz
Vertical sensitivity：10mV/Div-20V/Div（Progress according to the 1-2-5 way
Time base range：500ns/Div-20s/Div（Progress according to the 1-2-5 way
Voltage range：X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V)
Trigger method：Auto / Normal / Single
Coupling method：AC/DC
* Signal generator *
Frequency：0-10KHz
Duty cycle0-100% (rectangular and sawtooth
waves)
Amplitude0.1-3.3V
WaveformsSine wave, rectangular wave, sawtooth
wave, half wave, full wave, step wave,
anti step wave, noise wave, exponential
rise, exponential drop, DC signal,
multi tone, Sink pulse, Lorentz wave.
* Other Parameters *
Display：2.8 inches/PPI:320*240
USB charging：5V/1A
Lithium battery capacity：1000mAh
Size：99x68.3x19.5mm
Weight：100g
Package included:
Type A: Standard Version
1 x Host Device
1 x Alligtor Clip Probe
1 x Charging Cable
1 x Lanyard
1 x User Manual
1 x Packaging Color Box
Type B: Upgraded Version
1 x Host Device
1 x P6100 High Voltage Probe
1 x Adapter
1 x Alligator Clip Probe
1 x Charging Cable
1 x Lanyard
1 x User Manual
1 x Packaging Color Box
