>>Please click here to download the English manual<<
Package includes

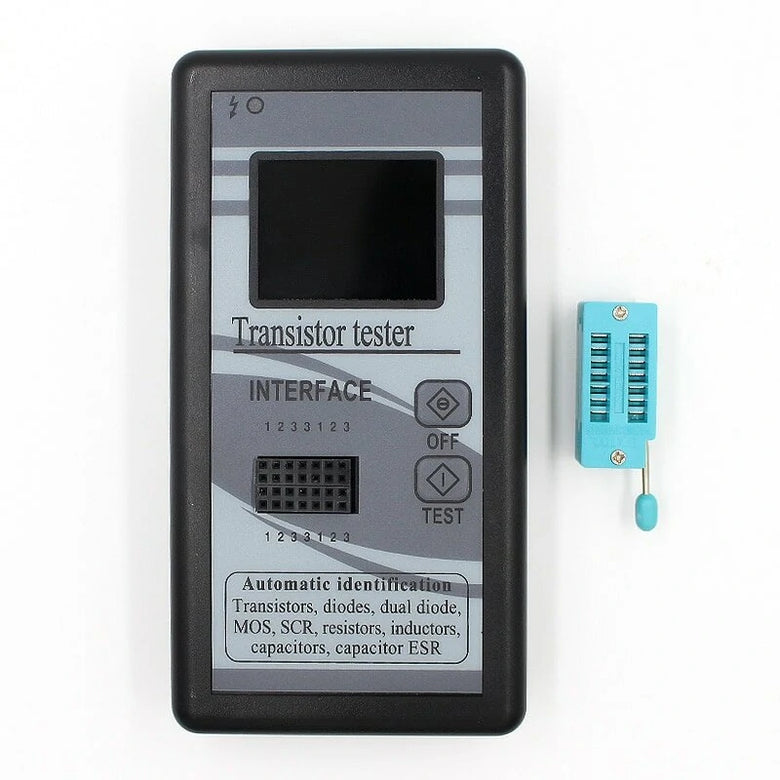

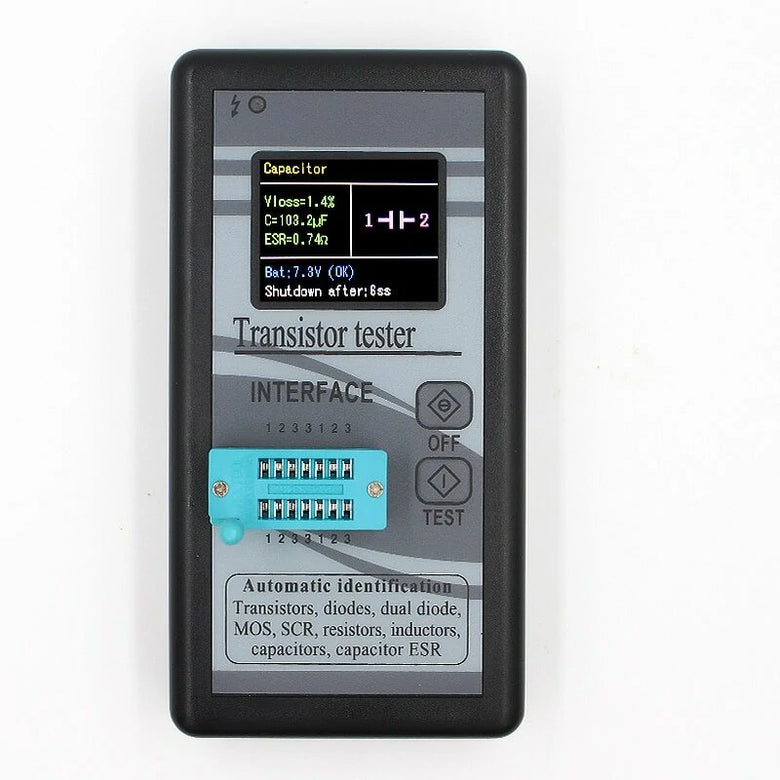

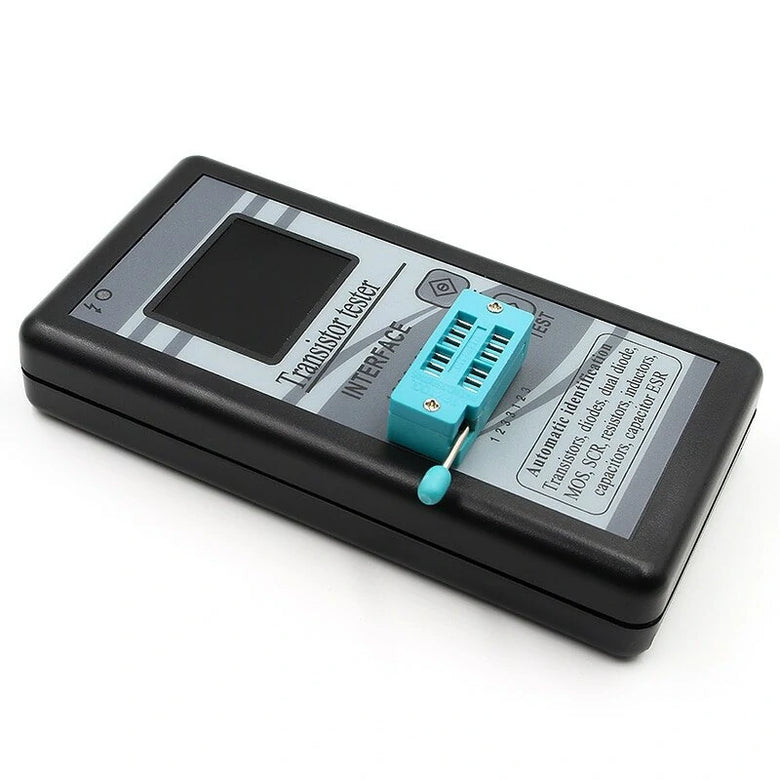

• 1 x Transistor tester (battery not included)

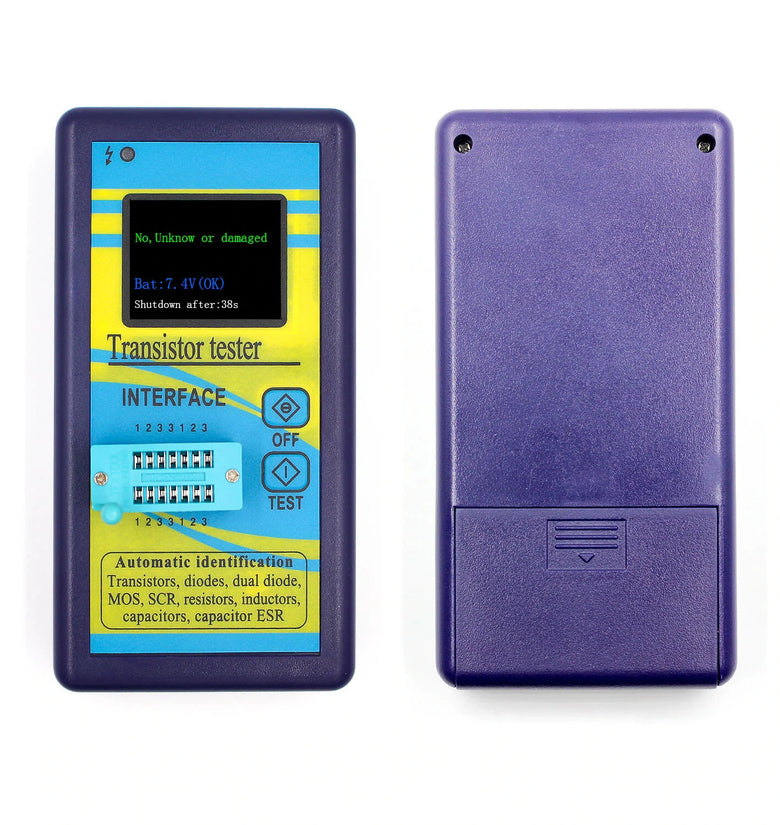

model 1 = Case color: Colorful
model 2 = Case color: Gray
Features and specifications:
Key features:
• 128 x 160 TFT color display for easy readings, can display measured data and graphics
• Powered by 9V battery(not included)
• All components are protected by a plastic case, convenient to carry
• Automatically detect NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors and other devices
• Automatically test the pins of a component and display on the LCD
• Measure the gate threshold voltage and gate capacitance of the MOSFET
• Measure bipolar transistor current amplification factor and base-emitter threshold voltage
• Two-button operation, automatic shutdown to avoid unnecessary waste
• Short detection time: Only 2 seconds (it is normal to cost 1 minute for bulk capacitor detection)
Notice: Please make sure that capacitors are discharged before testing.
Specifications:
• Case color: Gray/Colorful
• Display: 1.8' TFT color display
• Material: PCB + Plastic
• Shutdown current: 20nA
• Resistor test range: 0.5Ω – 50MΩ
• Inductor test range: 0.01mH – 20H
• Capacitor test range: 25pF – 100000uF
• Item size: 13.5 x 7 x 2.2 cm (5.3 x 2.76 x 0.86 in)
• Item weight: 99 grams (3.5 oz)
• Package size: Approx. 16 x 8 x 2.5 cm (6.3 x 3.15 x 0.98 in)
• Package weight: 102 grams (3.61 oz)
