Functions:
1. TDR theory to measure length of cat5e, cat6 and cat7 cable, coaxil cable, telephone cable.
2. Wiremapping with length and provide the distance to fault information.

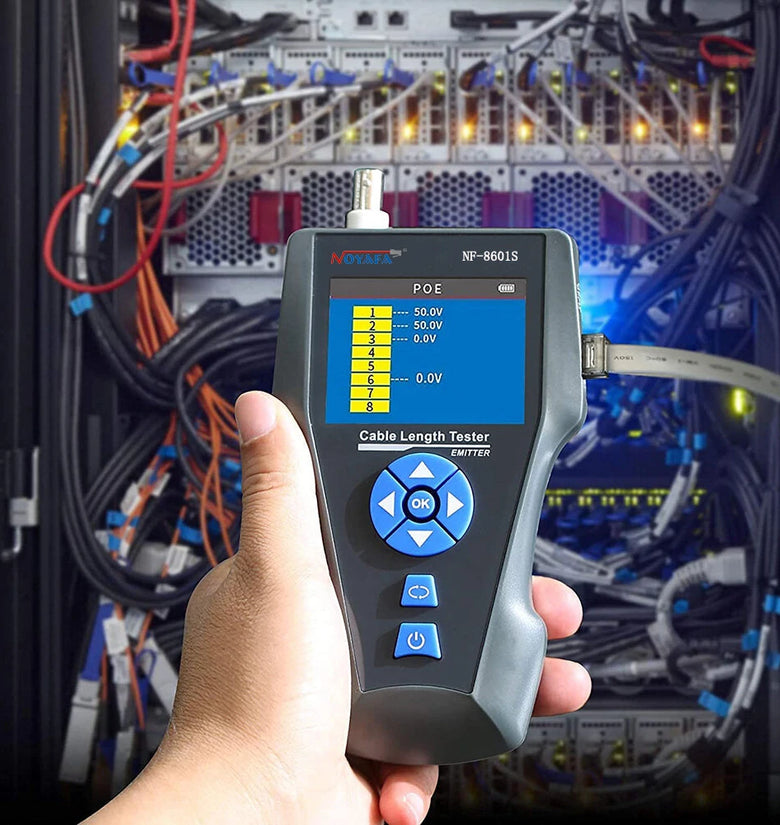

3. PoE function: identify which pins are providing power and detect how much voltage.
4. PING function to test network performance, data packet, MIN&MAX time.
5. Quickly find the targeted cable without stripping isolation among unknown cables.
6. Hub blinks for locating network port by the flashing port light on Hub / Switch.
7. Voltage detector: included in receiver (90~1000V)
Benefits:
1. Tone traces cable with complete AC fliter.
2. TF card function to export data from computer (50sets, TXT format)
3. 2 scan modes: common switch and PoE switch
4. 3.7V lithium battery for power supply and 2.8 inch color screen
Technical indexes:
NF-8601S Transmitter specifications
IndictorLCD 320x240 mm, with backlight
Cable test typesSTP/UTP 5E,6E network , telephone , coaxial cable.
Max. distance of wiremap1000 m
Max. distance of tracing1000m
Max. distance of cable length1000 m
Min. distance of calibration50 m
Accuracyup to 98% ( after calibration )

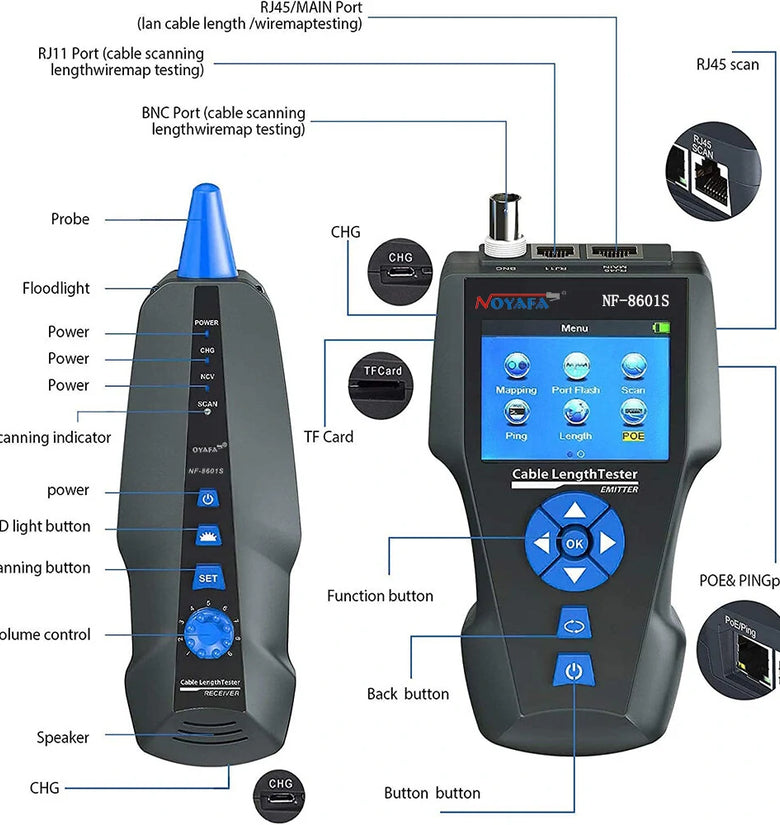

Compatible connectorsRJ11, RJ45, PING/POE, BNC
Cable map indicationLCD (#1-#8)
Battery Type3.7V lithium battery 1800mAh
Work temperature / humidity10℃ ~ -60℃ / 0℃~70℃
Dimension(LxWxD)173x92x34mm
NF-8601S Receiver specifications
Cable huntingRJ11，RJ45, BNC
Types of cable≥ 2 cores
Package included:
Type A: NF-8601W
1 x NF-8601W Transmitter
1 x NF-8601W Receiver
1 x Charing Adaptor
1 x Telephone Line adapter
1 x Network Cable Adapter
1 x Cable Clips
1 x User Manual
1 x Carry Bag
1 x Gift Box

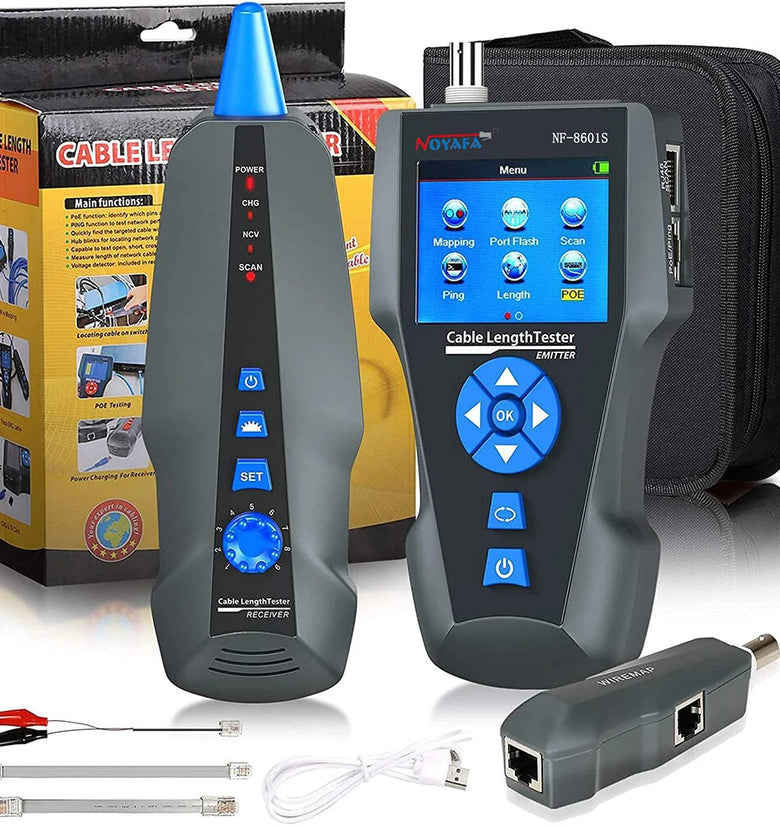

Type B: NF-8601S
1 x NF-8601S Transmitter
1 x NF-8601S Receiver
1 x Telephone Line Adapter
1 x Tf Memory Card
1 x Cable Clips
1 x Carry Bag
1 x Gift Box

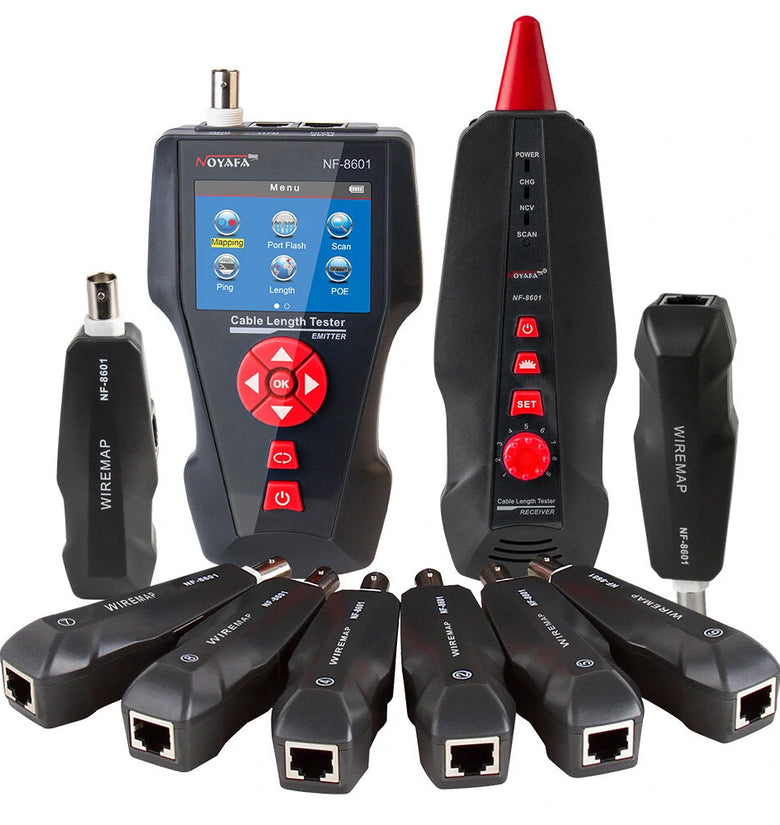

Type C: NF-8601
1 x NF-8601 Transmitter
1 x NF-8601 Receiver
2 x Bulit-in battery
1 x Adapted telephone line
1 x Adapted network cable
1 x Cable clips
1 x Charging adaptor
1 x Carry Bag
1 x Gift Box
