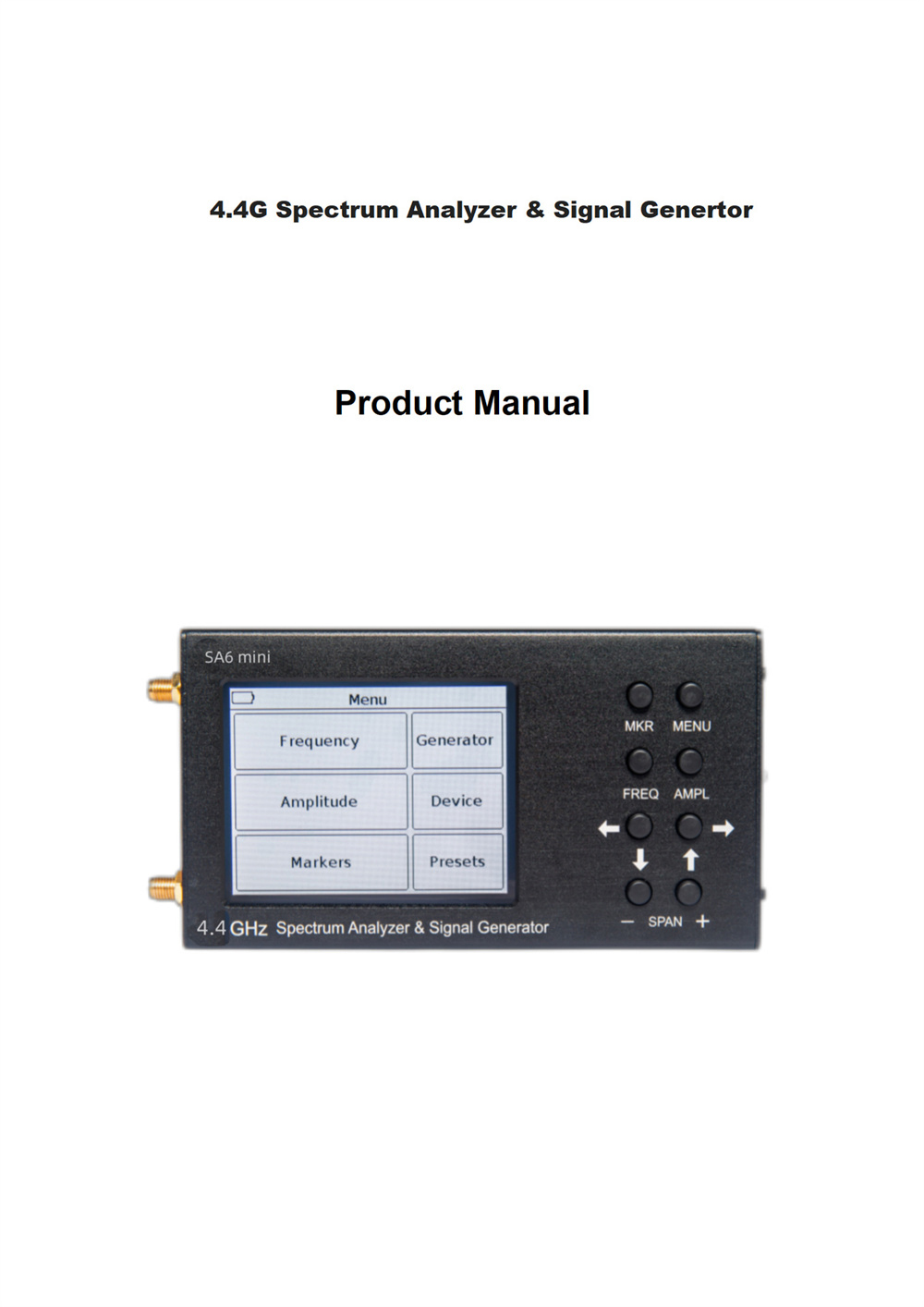

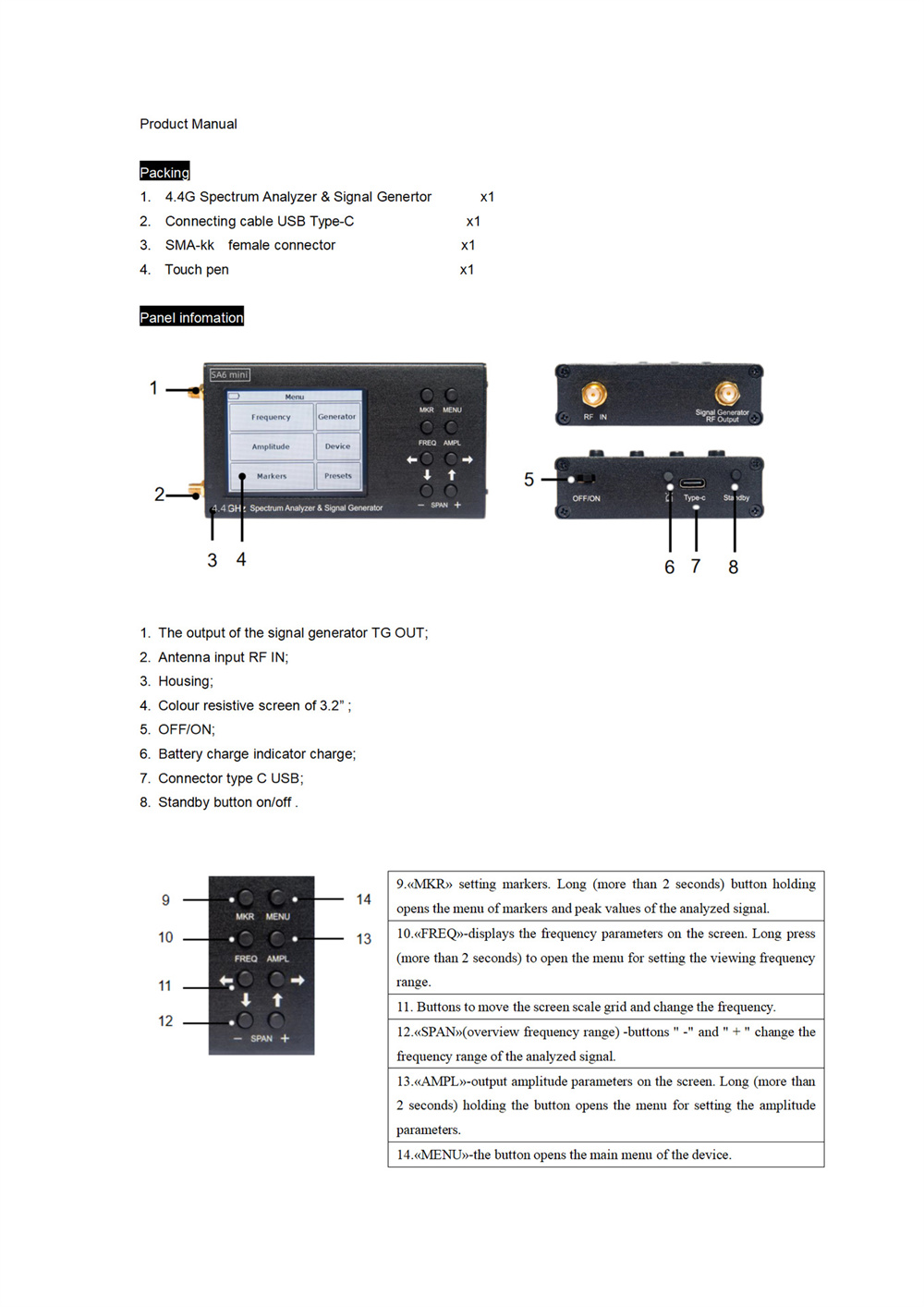

Please click here to download the instruction manual

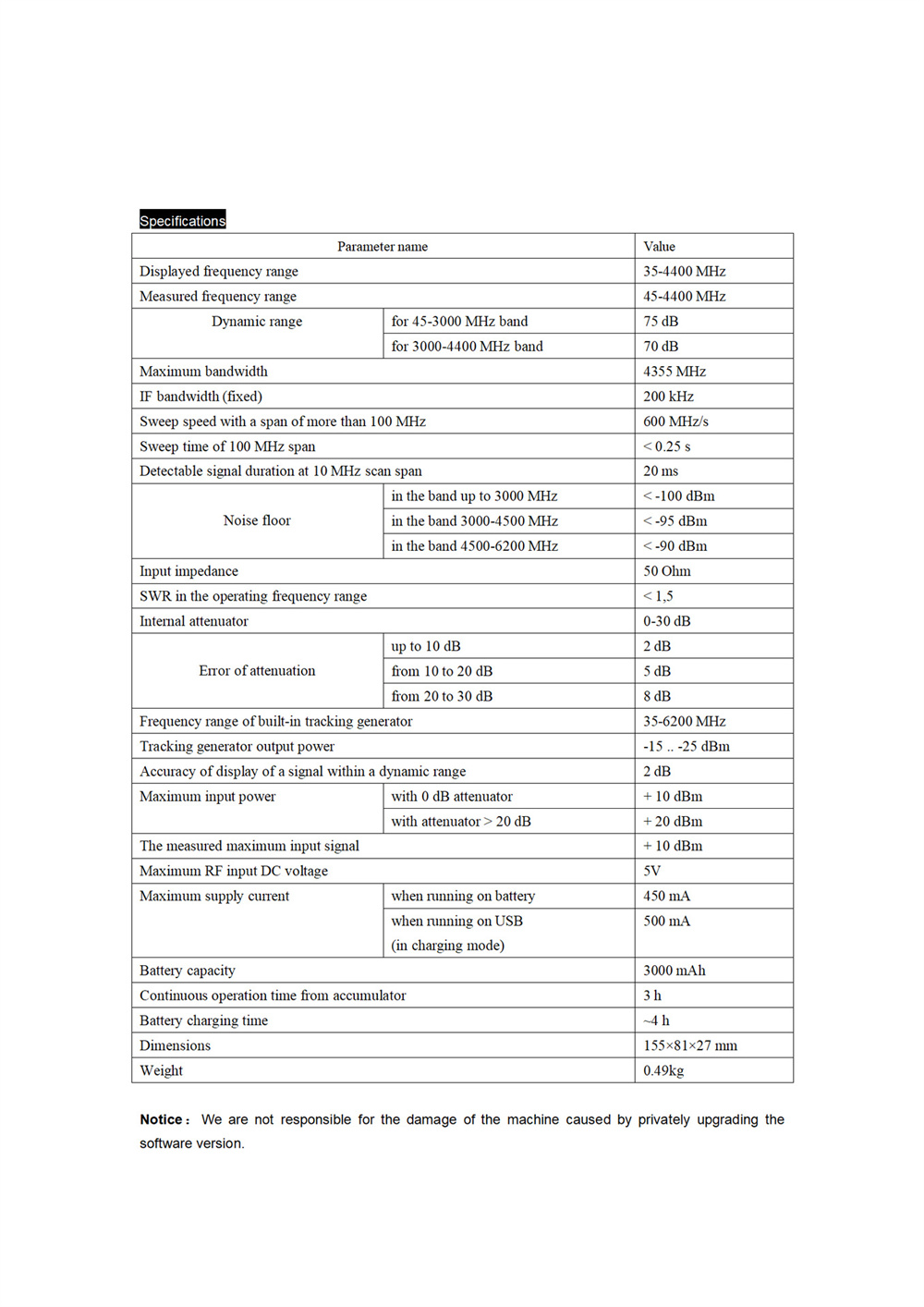

Specifications:

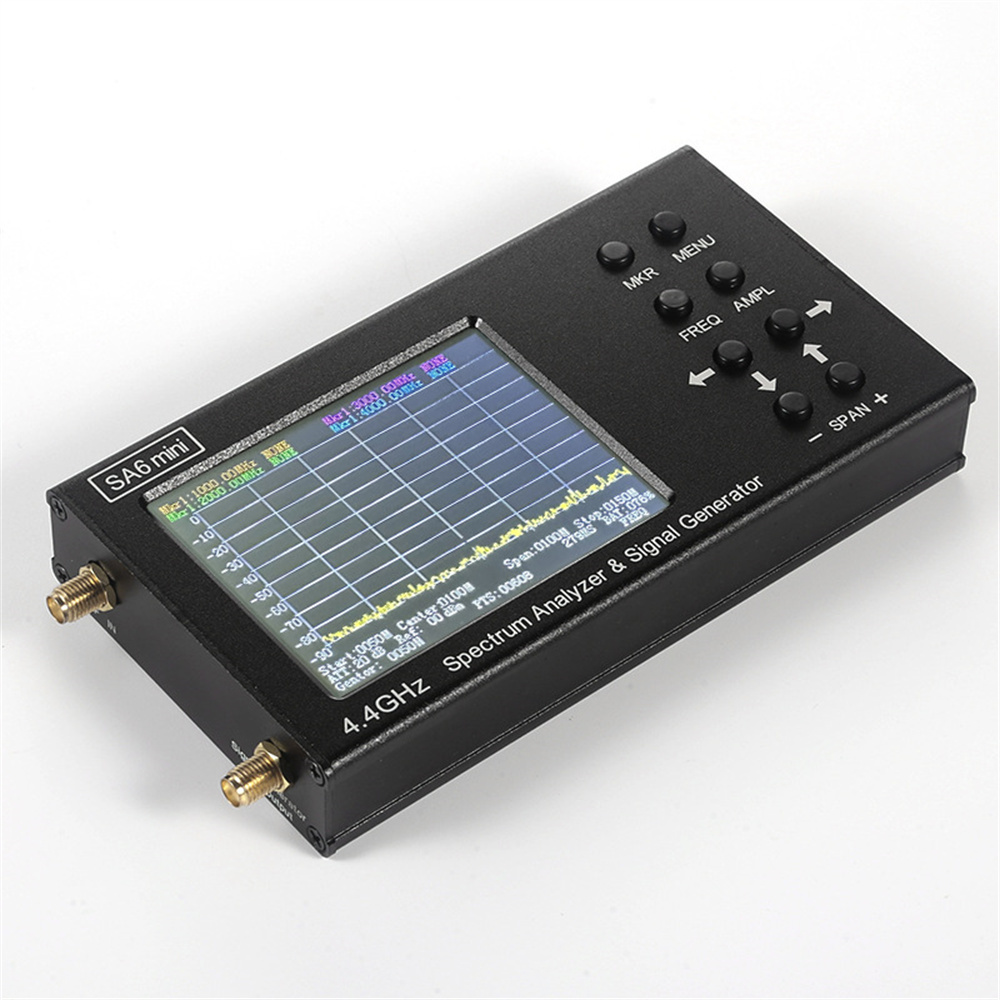

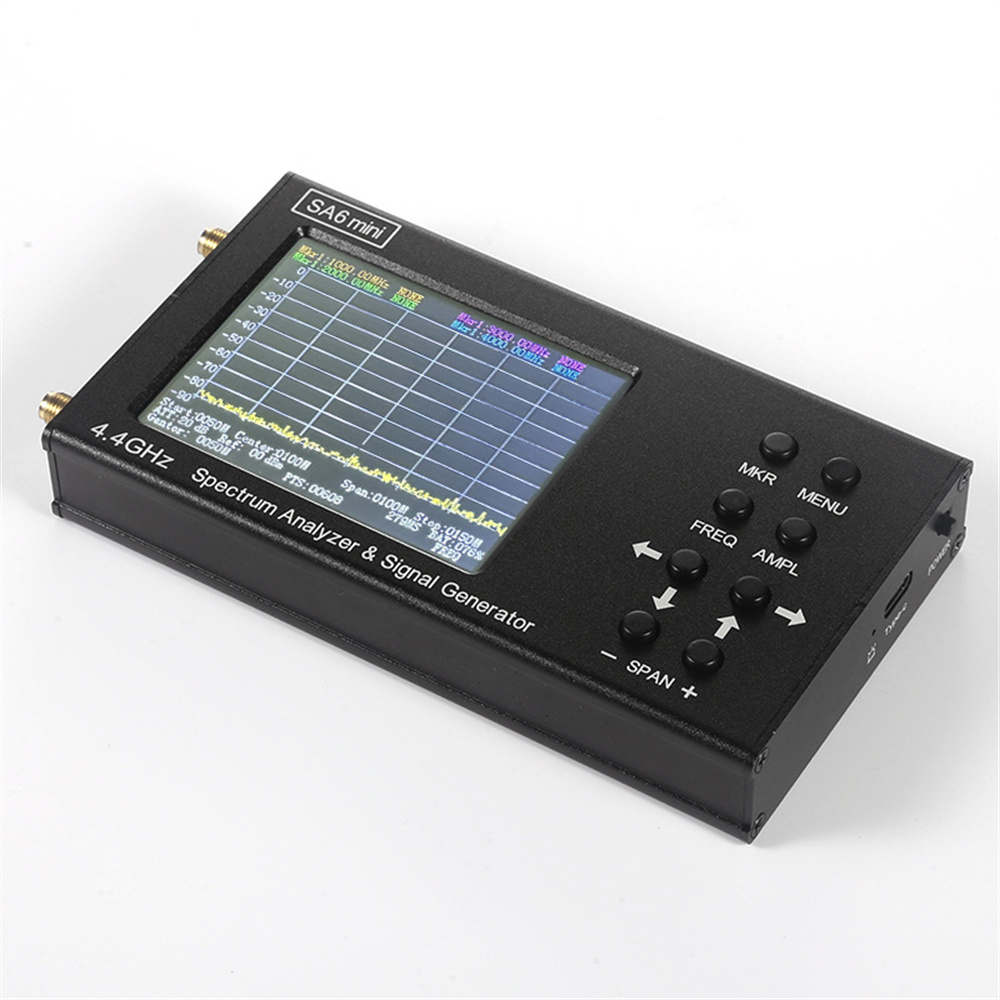

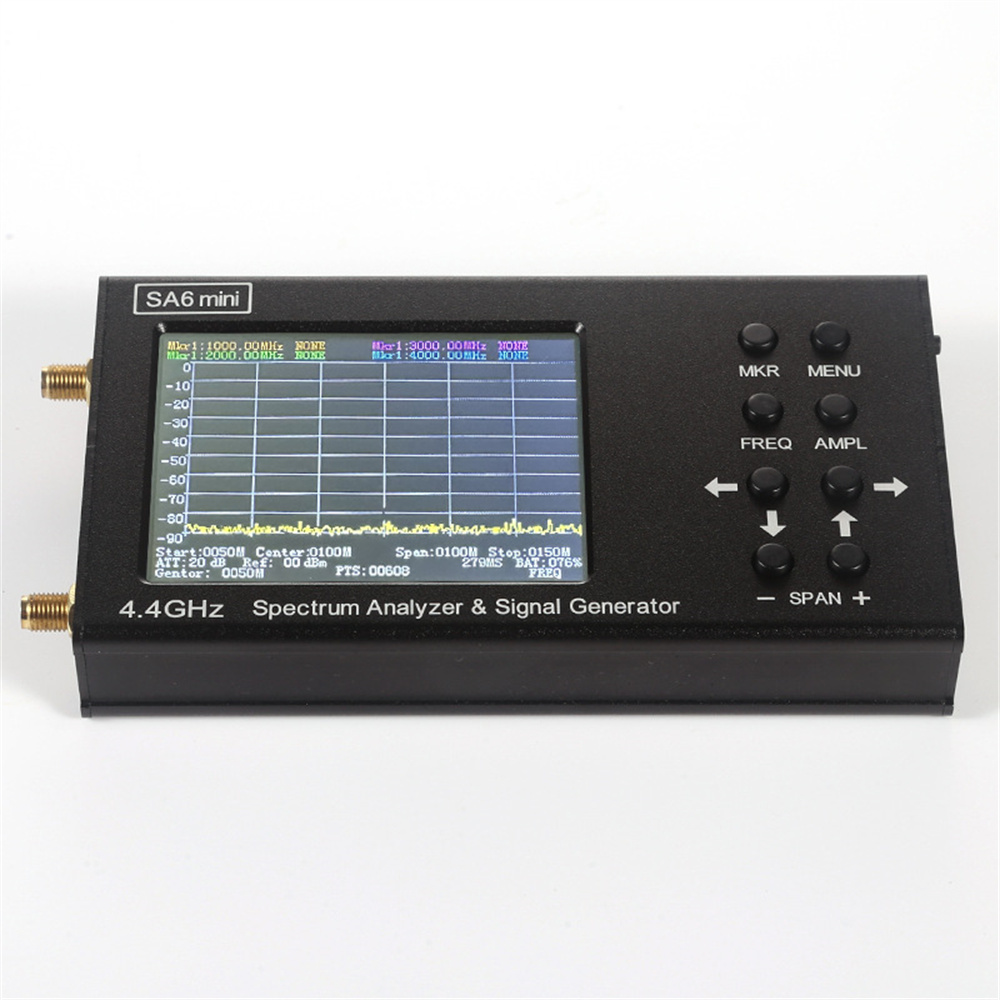

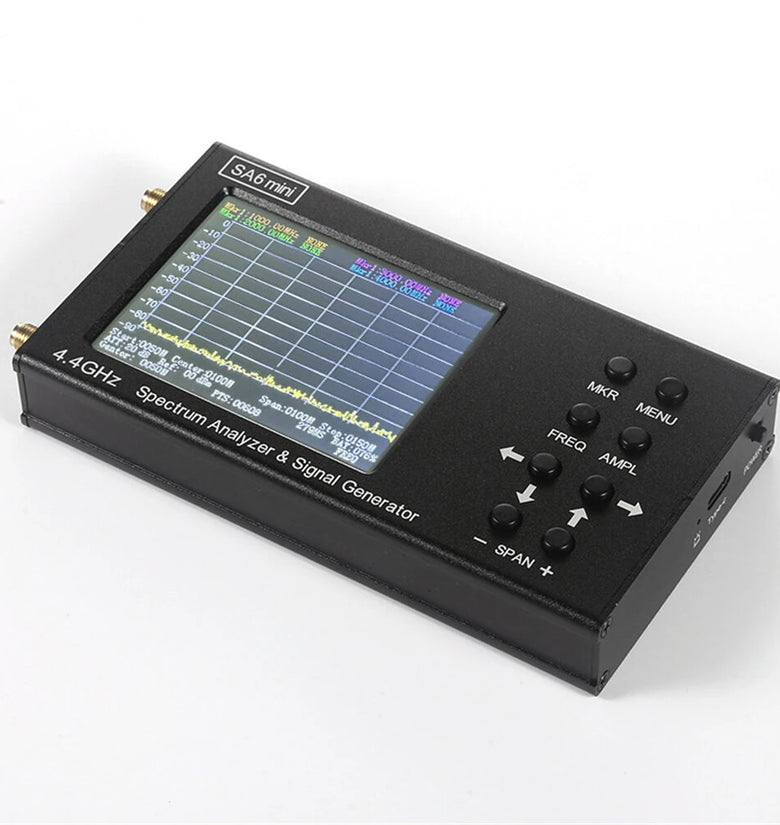

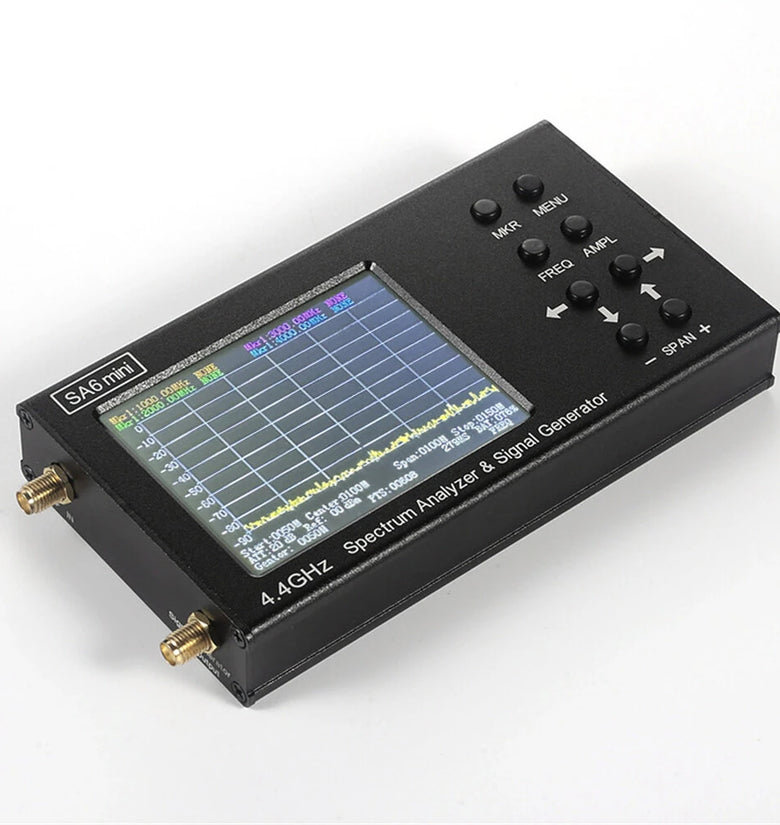

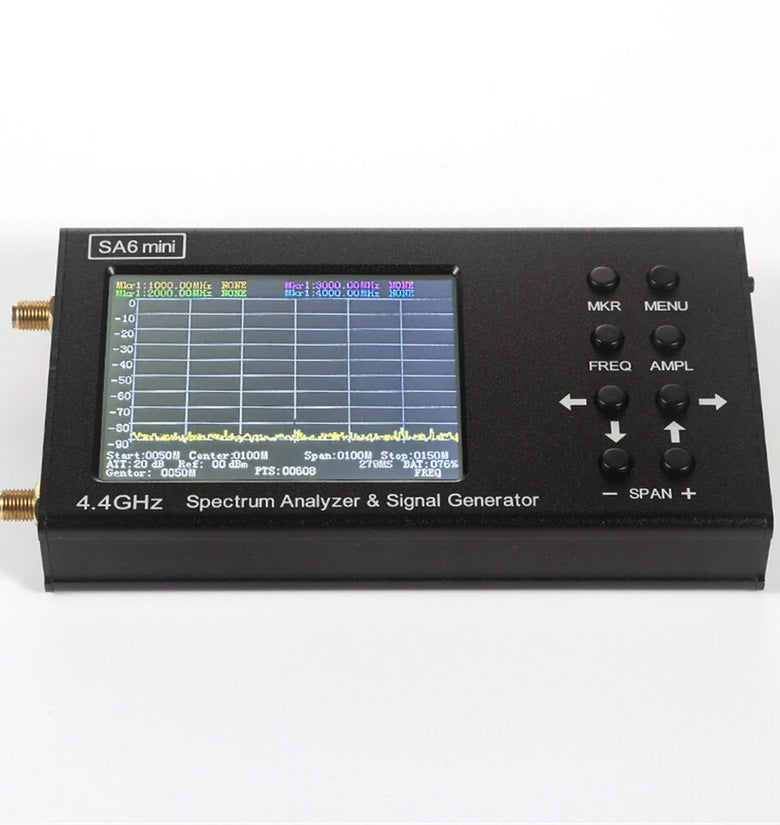

Model: SA6 Mini
Frequency Range Displayed: 35-4400MHz
Measurement Frequency Range: 45-4400MHz
Dynamic Range (45-3000MHz): 75dB
Dynamic Range (3000-4400MHz): 70dB
Maximum Bandwidth: 4355 MHz
Intermediate Frequency Bandwidth: 200 kHz (fixed)
Scanning Speed (>100MHz): 600MHz/s
Scan Time (100MHz Span): <0.25s
Minimum Detectable Signal Duration (10MHz Span): 20ms
Noise Floor (up to 3000MHz): <-95dBm
Input Impedance: 50 ohms
SWR across Operating Frequency Range: <1.5
Internal Attenuator: 0-30dB
Up to 10dB: ±2dB
10-20dB: ±5dB
20-30dB: ±8dB
Built-in Tracking Generator Frequency Range: 35-6200MHz
Tracking Generator Output Power: -15 to -25dBm
Signal Display Accuracy within Dynamic Range: ±2dB

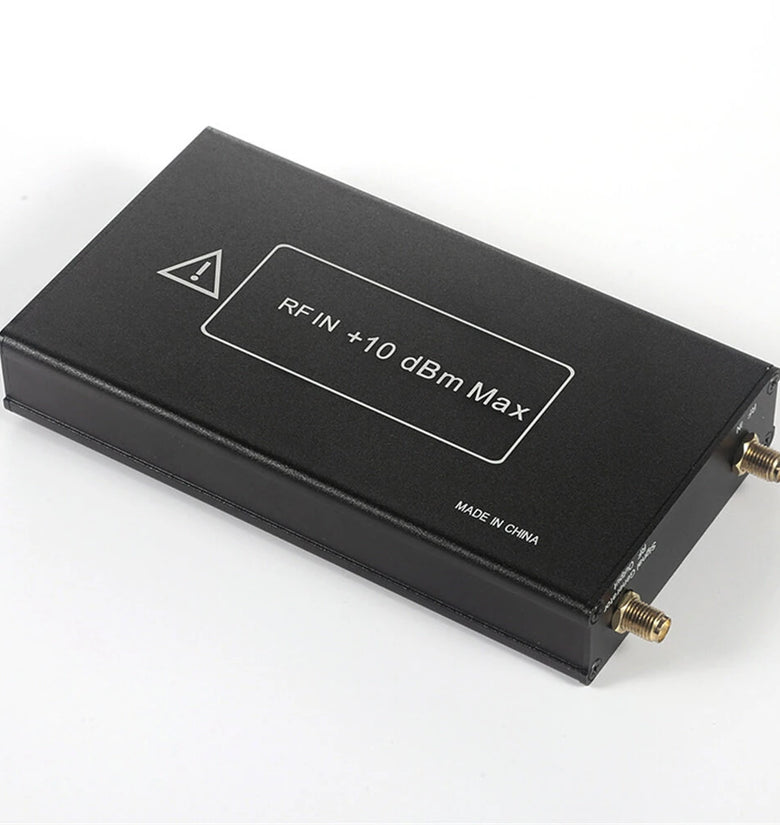

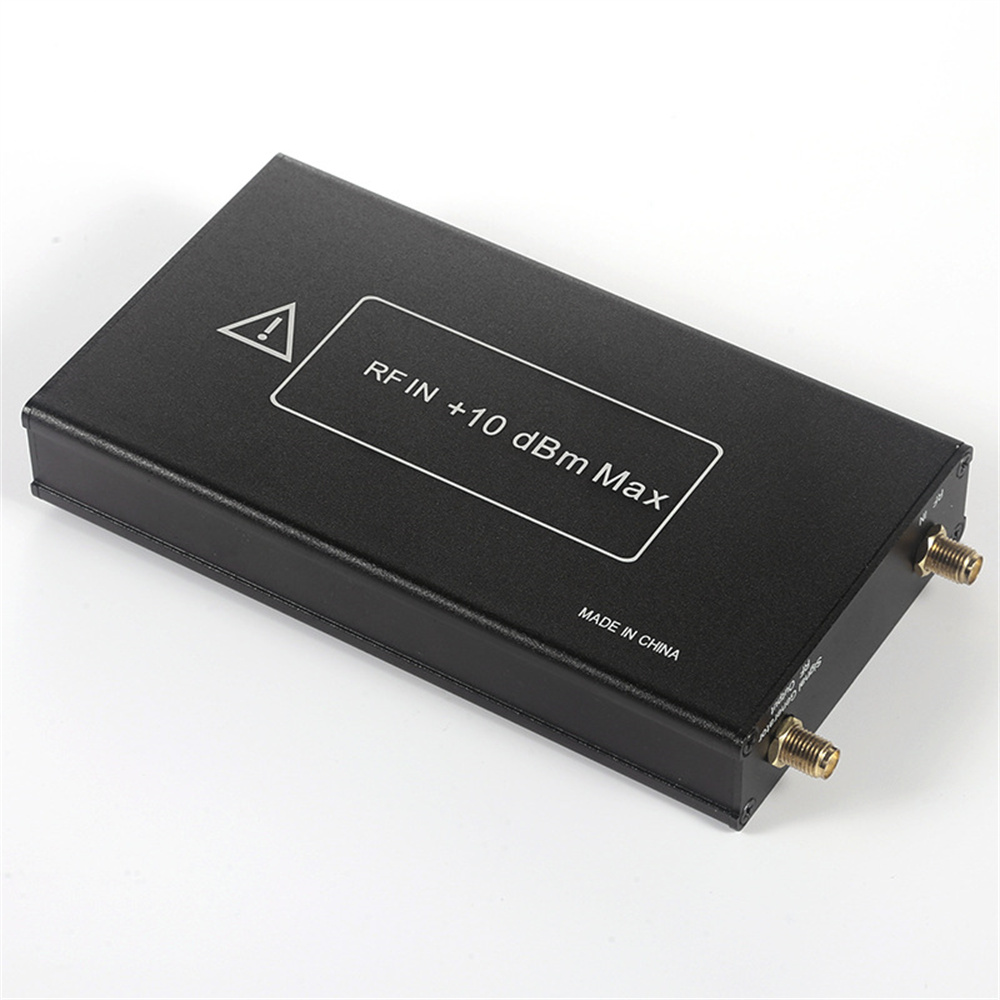

Maximum Input Power (0dB Attenuator): +10dBm
Maximum Input Power (>20dB Attenuator): +20dBm
Maximum RF Input DC Voltage: 5V
Battery Capacity: 3000mAh
Continuous Operation Time: 3 hours
Battery Charging Time: ~4 hours
Dimensions: 155 x 81 x 27mm
Weight: 0.49kg
Features:
Wide Frequency Range: Covers 35-4400MHz for comprehensive signal testing and analysis.
Fast Scanning Speed: Over 600MHz/s scanning speed for efficient signal detection.
High Dynamic Range: Provides 75dB dynamic range up to 3000MHz and 70dB for 3000-4400MHz.
Built-in Tracking Generator: Enables detailed signal tracing and analysis up to 6200MHz.
Portable Design: Compact dimensions and lightweight make it ideal for field testing.

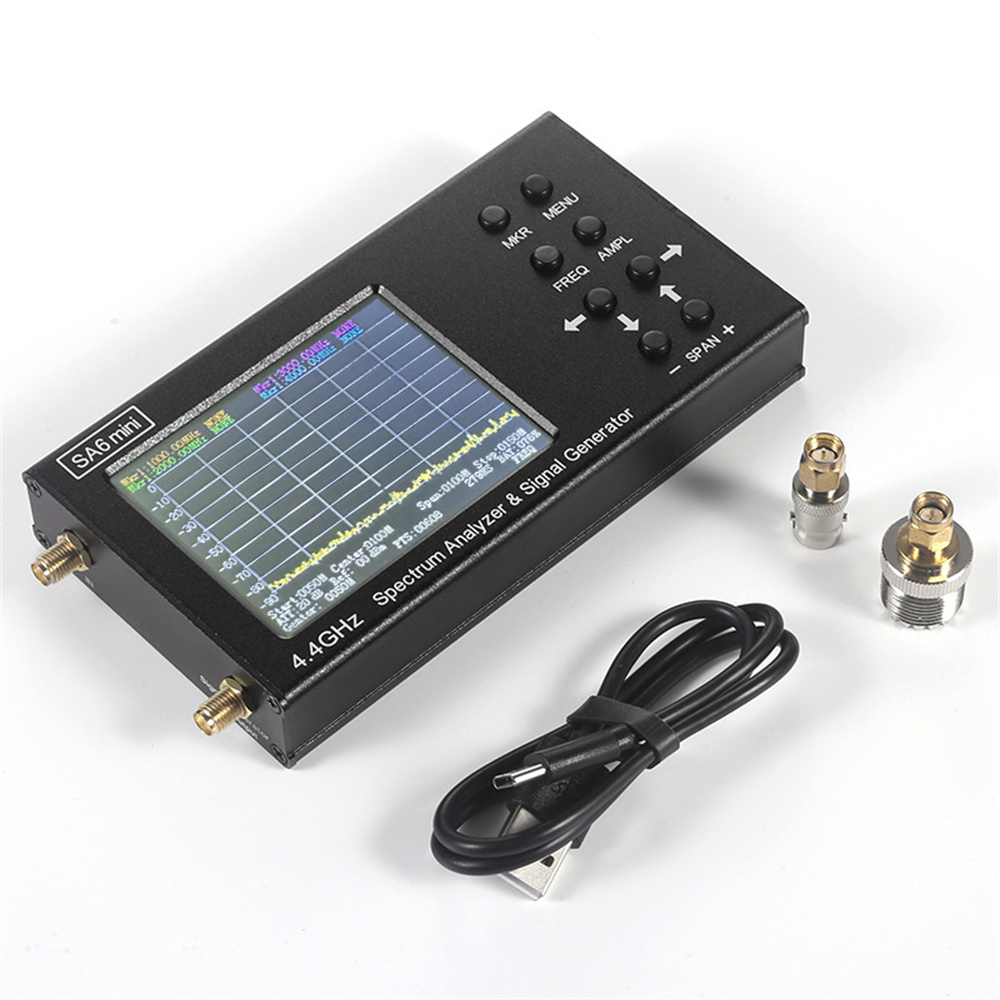

Package Included:

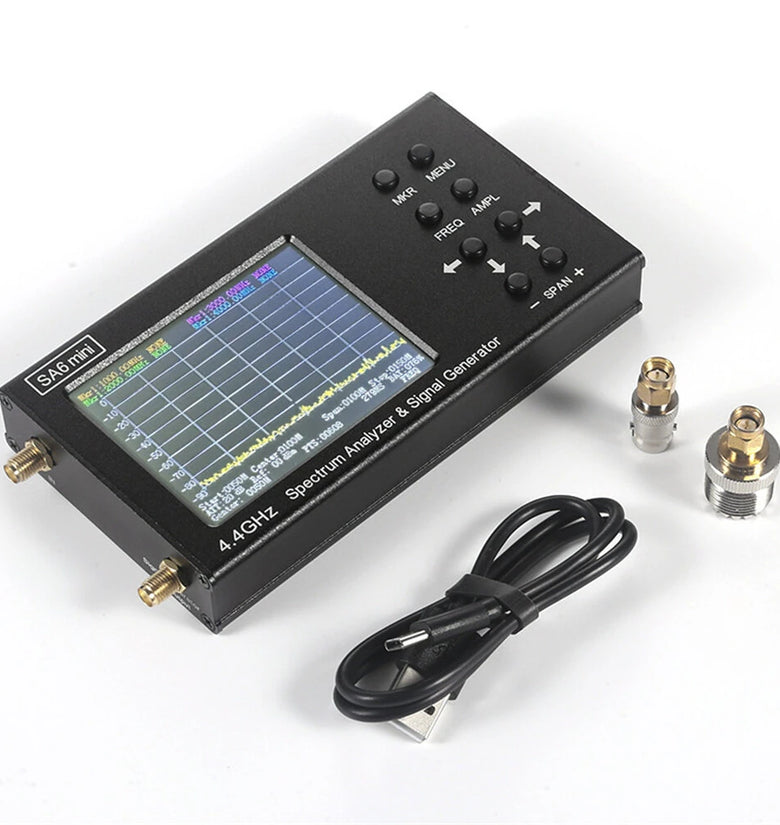

Type A:
1 x SA6 Mini Spectrum Analyzer
1 x USB Cable
1 x SMA Male to SMA Male Adapter
1 x User Manual Support Guide

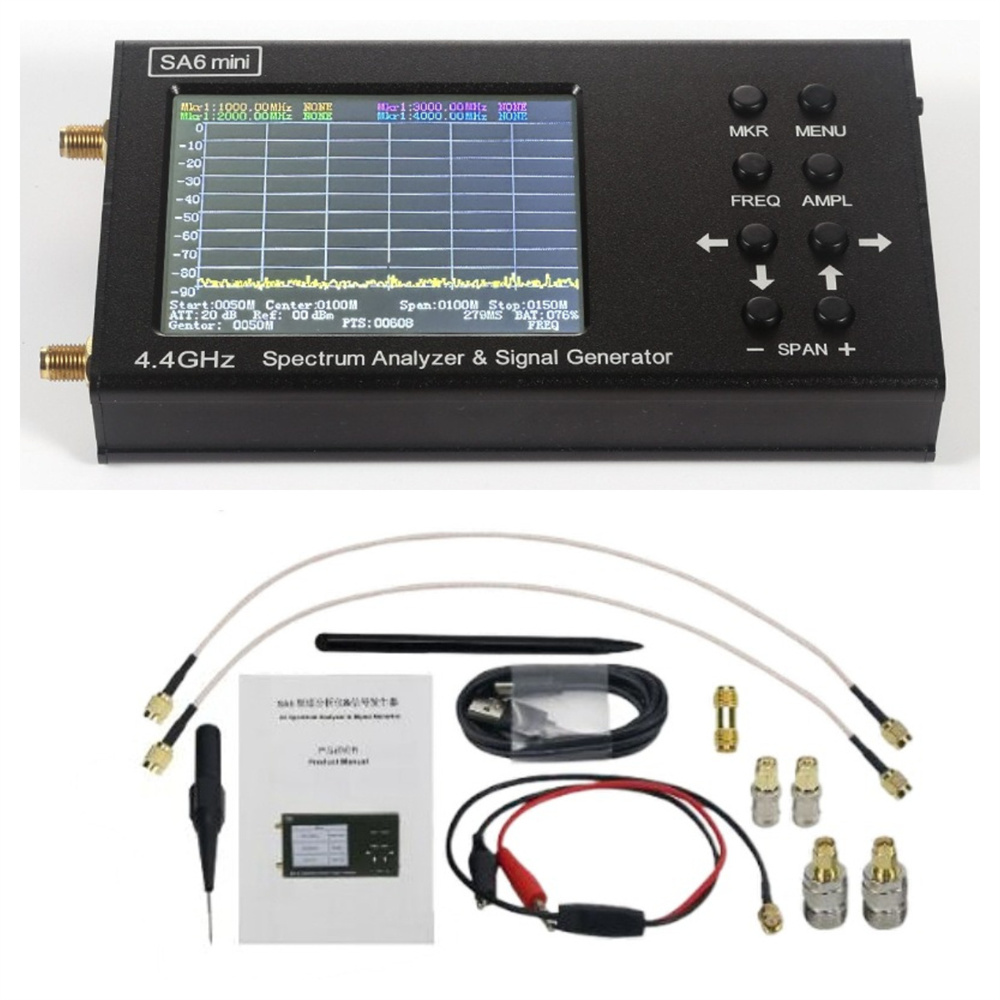

Type B:
1 x SA6 Mini Spectrum Analyzer
2 x SMA-SMA Extension Cable
1 x Stylus
1 x SMA-KK Passed
1 x USB Cable
1 x SMA Male to SMA Male Adapter
1 x User Manual Support Guide
