Attention:

- We worked with the original author to design and build this radio.  This machine has achieved a perfect combination of software and hardware, and in the future, the original author will work with us to update more firmware for it

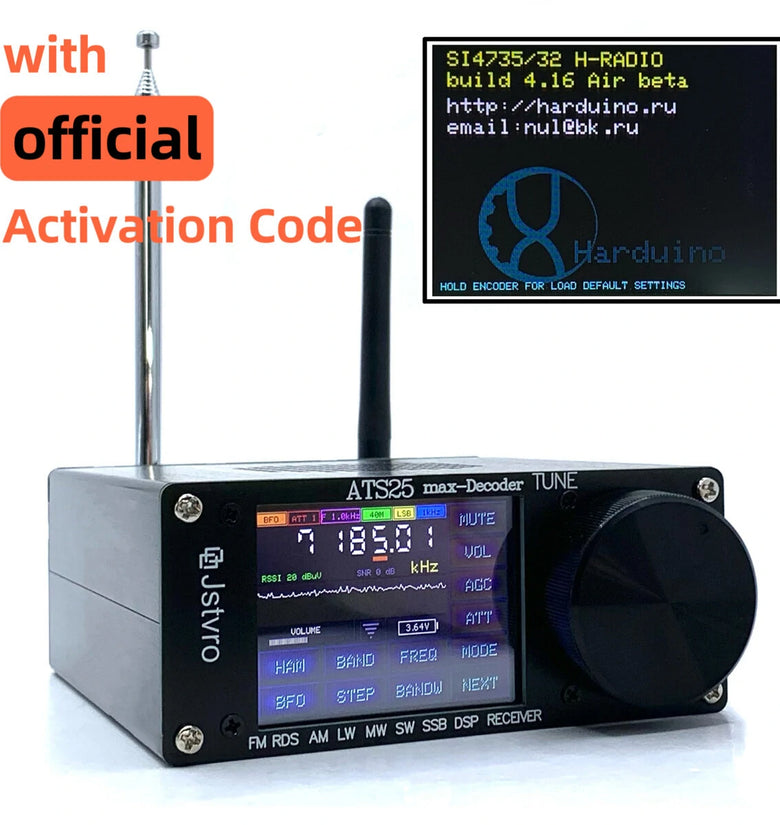

- Key has been activated.

- Suggestion: WiFi is very power -consuming.  Use only when activating keys.  It usually only shows the date, time, please close it when you go out to save battery electricity.

- How to view key: Open the panel, click next to click Info, and twist the rotation, look at the picture above.  You can see the 8-bit key, the standard is 12-bit.  If necessary, please contact us for asking.  The key will be stored in the machine for a long time without worrying about the firmware update.

Features:

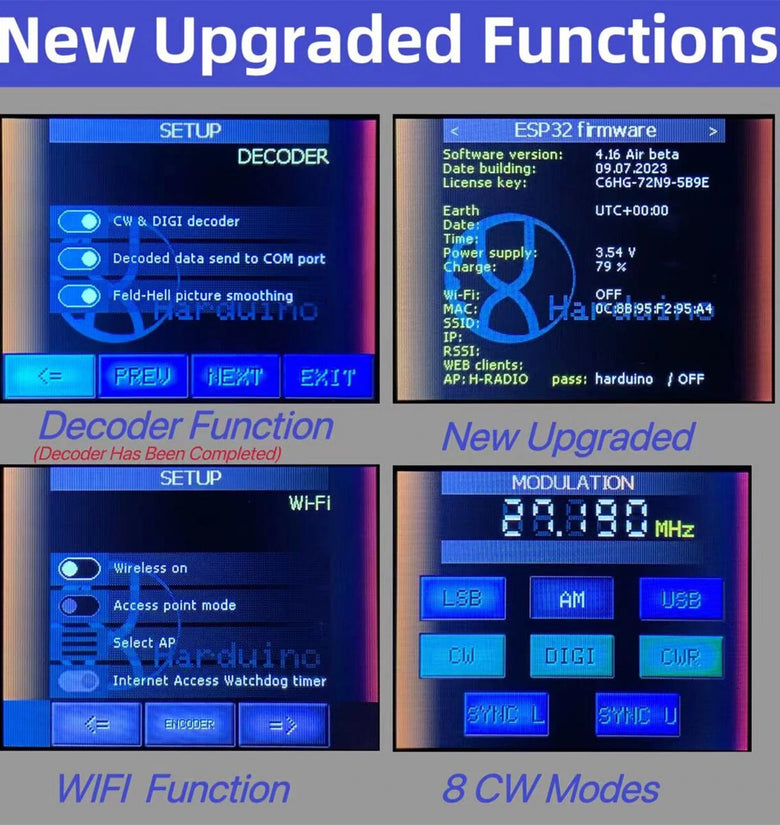

【New Upgraded Functions】 4 new DIGI, CWR, SYNC L, SYNC U are added in CW mode.   It also adds wifi function, RTty decoding function, four audio spectrum.   With more powerful functions, it can better meet the needs of radio enthusiasts.

【WIFI Function】 The 4.17 version of ATS-25max-DECODER does not need to use the APP to connect to the network.   It has its own wifi login option, which can be directly connected to the Internet, and the WIFI icon will be displayed on the page.

【Support TYPE-C Interface Upgrade Program】It use TYPE-C charging interface, maximum 1.5A charging current.   3.5mm stereo audio output, also supports 3.5mm audio fm antenna interface.

【Radio Search Function】 This has a radio search function, supports broadcast search and direct frequency input on the numeric keyboard, and also has a HAM band shortcut channel;   AM bandwidth: 1-6K;   SSB bandwidth: 0.5-4.0K.

【Convenient and Compact】Full band radio receiver is compact and easy to carry.   It can be used when traveling, climbing, camping, or sharing with family and friends.  The built-in large-capacity lithium battery can be used for a long time without worrying about sudden power failure.

【Large capacity battery】Full band radio receiver is equipped with a 3000 mAh battery,The product is compact and easy to carry.   It can be used when traveling, climbing, camping, or sharing with family and friends.  It can be used for a long time without worrying about sudden power failure.

【FM AM Mode】To receive FM AM mode, ATS-25 needs its own dedicated active antenna for shortwave, with a range of 0-30MHz.

【Radio Search Function】 This has a radio search function, supports broadcast search and direct frequency input on the numeric keyboard, and also has a HAM band shortcut channel;   AM bandwidth: 1-6K;   SSB bandwidth: 0.5-4.0K.

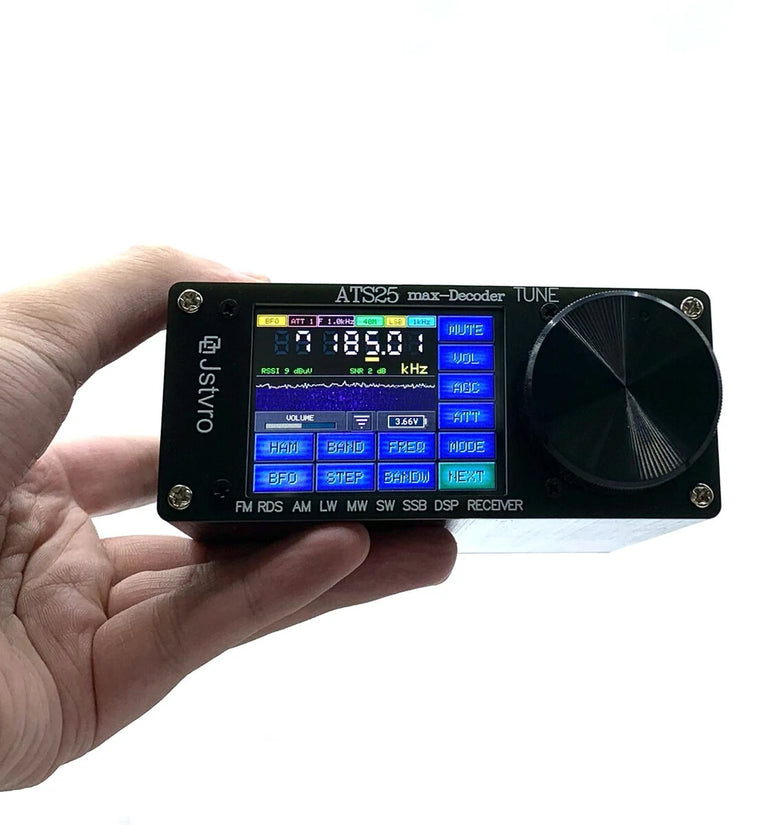

【2.4-inch Touch Screen】 This Si4732 radio receiver with 2.4'' touch screen allows you to read data more clearly.  The shortwave radio shell is made of aluminum alloy, which is strong and wear-resistant and have a better user experience.

【More Functions】The scanning function, backlight adjustment and shutdown were mainly added.

Product Parameters:

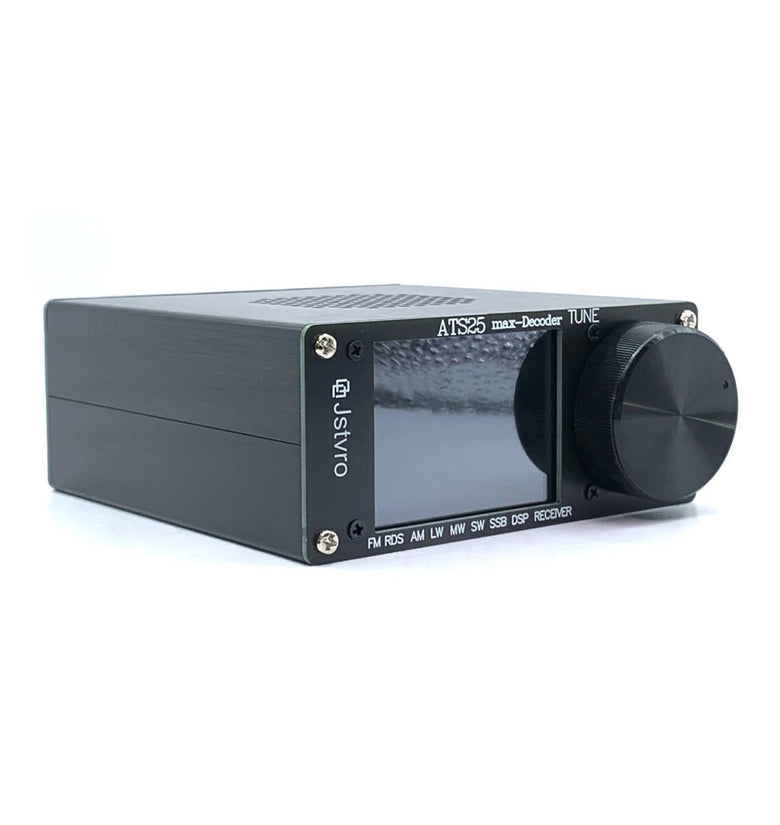

- Shell material: aluminum alloy

- 3.7V /3000mA built-in lithium battery

- Type-C charging interface and maximum 1.25 charging current

- Type-c interface upgrade solution

- Support 3.5mm stereo audio output

- Forian interface BNC

- Support 3.5mm audio jack FM antenna

- 2.4 -inch touch screen

- Outage audio power 1.5W

- Product size: 120 x 115 x 48mm/4.7 x 4.5 x 1.9' (excluding protruding part of the size)

Package Included:

- 1 x Set of Radio Receiver

Frequency range:

Band band[] = {

{ 'FM', FM_BAND_TYPE, FM, 6400, 10800, 9920, 10, 0, 0}, // FM 0

{ 'LW', LW_BAND_TYPE, AM, 100, 514, 198, 9, 0, 0}, // LW 1

{ 'MW', MW_BAND_TYPE, AM, 514, 1800, 1395, 9, 0, 0}, // MW 2

{'BACON', LW_BAND_TYPE, AM, 280, 470, 284, 1, 0, 0}, // Ham 800M 3

{ '630M', SW_BAND_TYPE, LSB, 470, 480, 475, 1, 0, 0}, // Ham 630M 4

{ '160M', SW_BAND_TYPE, LSB, 1800, 2000, 1850, 1, 0, 0}, // Ham 160M 5

{ '120M', SW_BAND_TYPE, AM, 2000, 3200, 2400, 5, 0, 0}, // 120M 6

{ '90M', SW_BAND_TYPE, AM, 3200, 3500, 3300, 5, 0, 0}, // 90M 7

{ '80M', SW_BAND_TYPE, LSB, 3500, 3900, 3630, 1, 0, 0}, // Ham 80M 8

{ '75M', SW_BAND_TYPE, AM, 3900, 5300, 3950, 5, 0, 0}, // 75M 9

{ '60M', SW_BAND_TYPE, USB, 5300, 5900, 5375, 1, 0, 0}, // Ham 60M 10

{ '49M', SW_BAND_TYPE, AM, 5900, 7000, 6000, 5, 0, 0}, // 49M 11

{ '40M', SW_BAND_TYPE, LSB, 7000, 7500, 7074, 1, 0, 0}, // Ham 40M 12

{ '41M', SW_BAND_TYPE, AM, 7200, 9000, 7210, 5, 0, 0}, // 41M 13

{ '31M', SW_BAND_TYPE, AM, 9000, 10000, 9600, 5, 0, 0}, // 31M 14

{ '30M', SW_BAND_TYPE, USB, 10000, 10200, 10099, 1, 0, 0}, // Ham 30M 15

{ '25M', SW_BAND_TYPE, AM, 10200, 13500, 11700, 5, 0, 0}, // 25M 16

{ '22M', SW_BAND_TYPE, AM, 13500, 14000, 13700, 5, 0, 0}, // 22M 17

{ '20M', SW_BAND_TYPE, USB, 14000, 14500, 14074, 1, 0, 0}, // Ham 20M 18

{ '19M', SW_BAND_TYPE, AM, 14500, 17500, 15700, 5, 0, 0}, // 19M 19

{ '17M', SW_BAND_TYPE, AM, 17500, 18000, 17600, 5, 0, 0}, // 17M 20

{ '16M', SW_BAND_TYPE, USB, 18000, 18500, 18100, 1, 0, 0}, // Ham 16M 21

{ '15M', SW_BAND_TYPE, AM, 18500, 21000, 18950, 5, 0, 0}, // 15M 22

{ '14M', SW_BAND_TYPE, USB, 21000, 21500, 21074, 1, 0, 0}, // Ham 14M 23

{ '13M', SW_BAND_TYPE, AM, 21500, 24000, 21500, 5, 0, 0}, // 13M 24
