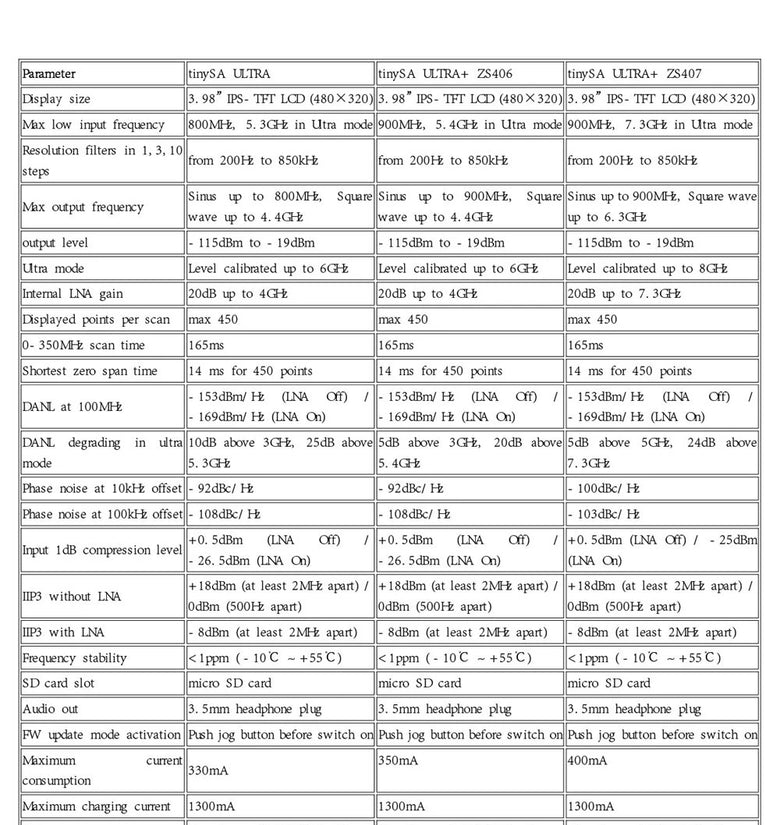

Specifications:

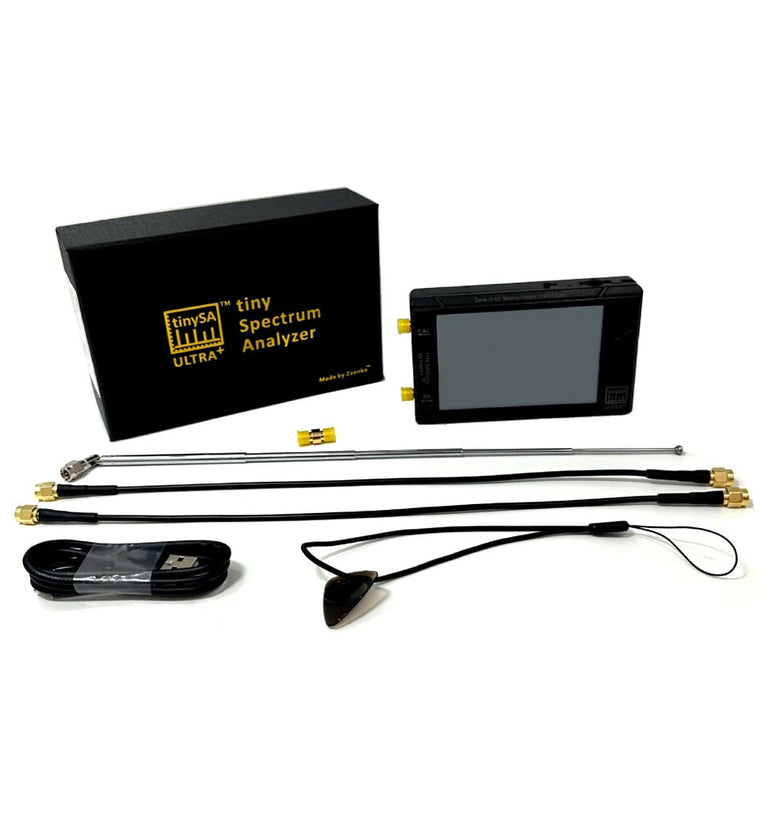

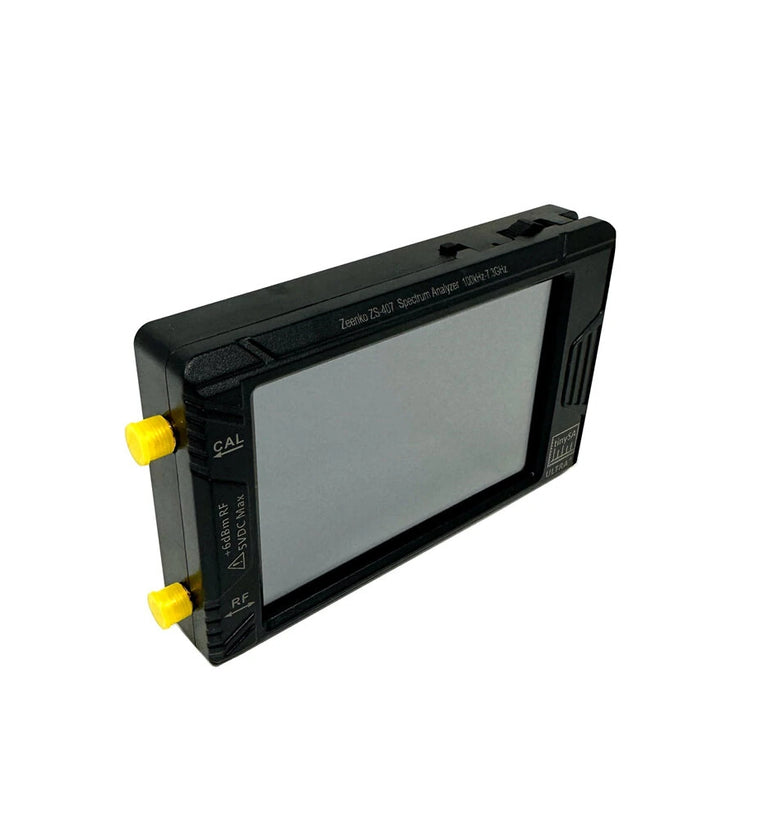

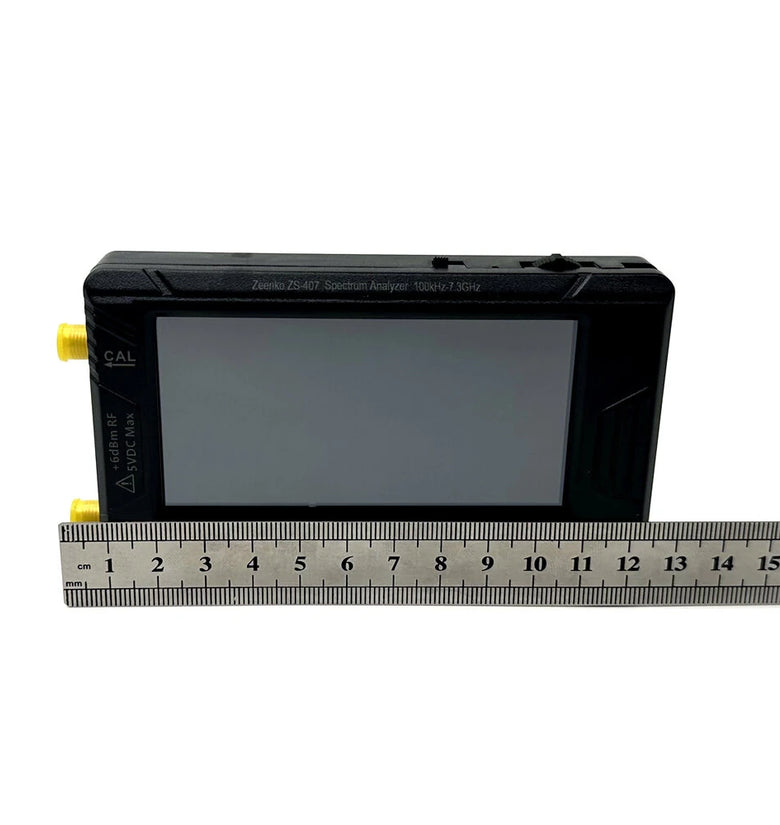

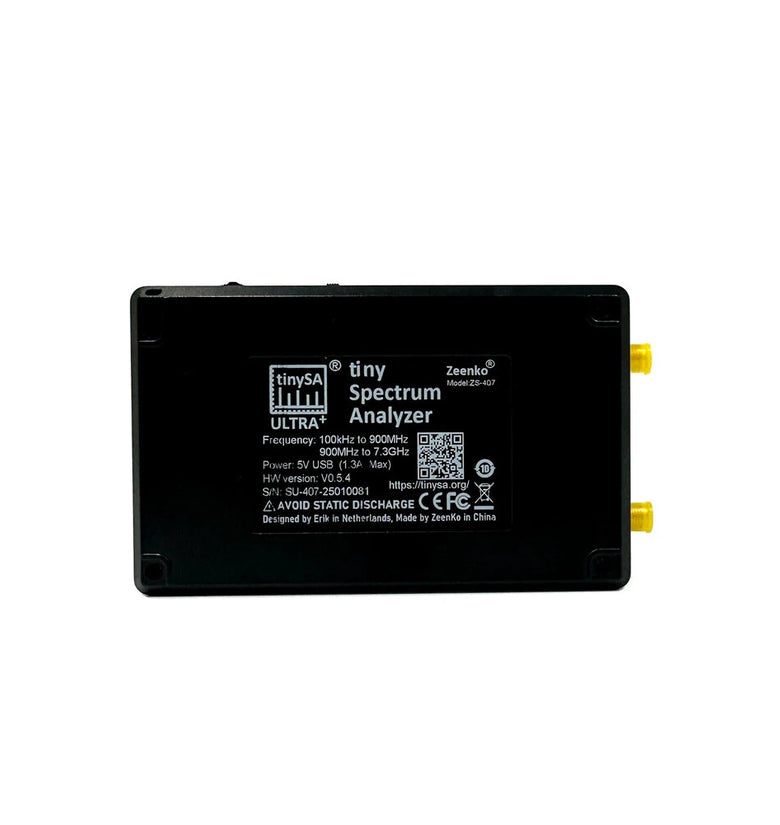

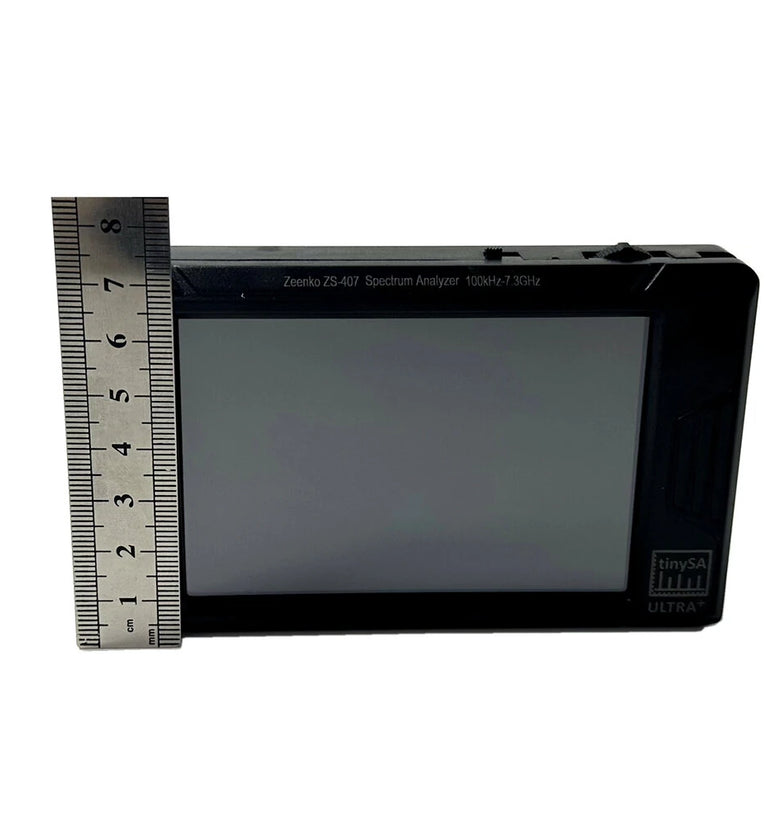

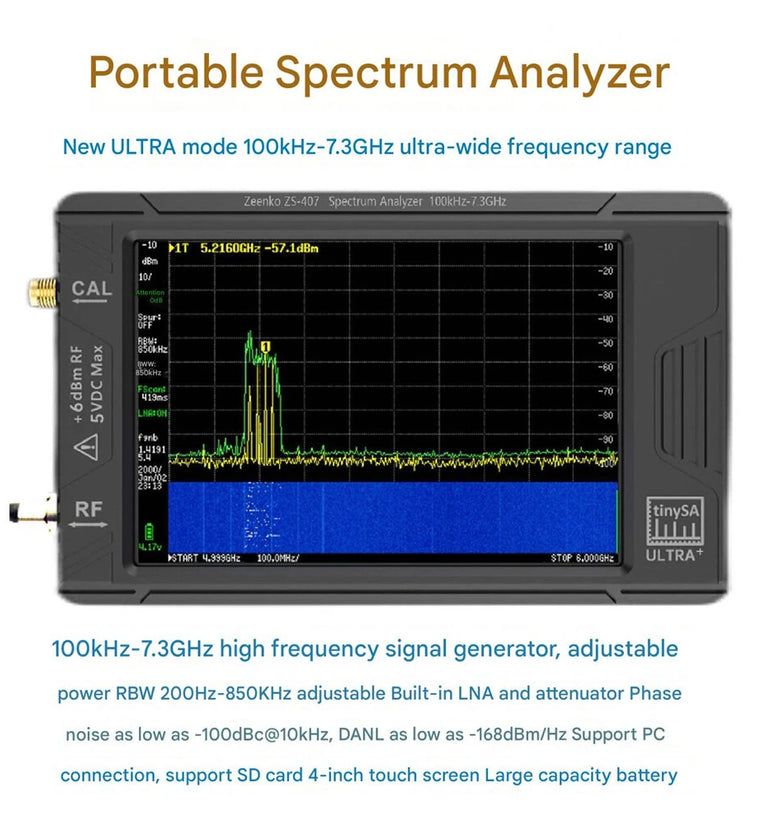

- Model: TinySA ULTRA+ ZS407
- Display Size: 3.98' IPS TFT LCD (480 x 320)
- Max Input Frequency: 900MHz, 7.3GHz in Ultra mode
- Resolution Filters in 1, 3, 10 steps: from 200Hz to 850kHz
- Max Output Frequency: Sinus up to 900MHz, wave up to 6.3GHz
- Output Level: -115dBm to -19dBm
- Ultra Mode: Calibrated up to 8GHz
- Internal LNA Gain: 20dB up to 7.3GHz
- Displayed Points per Scan: Max 450
- 0-350MHz Scan Time: 165ms
- Shortest Zero Span Time: 14ms for 450 points
- DANL at 100MHz: -153dBm/Hz (LNA Off) / -169dBm/Hz (LNA On)
- DANL Degrading in Ultra Mode: 5dB above 5GHz, 24dB above 7.3GHz
- Phase Noise at 10kHz Off: -100dBc/Hz
- Phase Noise at 100kHz Off: -103dBc/Hz
- Input 1dB Compression Level: +0.5dBm (LNA Off) / -25dBm (LNA On)
- IIP3 without LNA: +18dBm (at least 2MHz apart) / 0dBm (500Hz apart)
- IIP3 with LNA: -8dBm (at least 2MHz apart)
- Frequency Stability: <1ppm (-10°C ~ +55°C)
- SD Card Slot: Micro SD card
- Audio Out: 3.5mm headphone plug
- FW Update Mode: Push jig button before switch on
- Maximum Current Consumption: 400mA
- Maximum Charging Current: 1300mA
- Battery: Li-polymer 3.7V 5000mAh
- RF Connectors: S
Related product
HappyFish.co.za
Stainless Steel Cut Resistant Gl...
Feature:1.Sometimes you just need a anti-cut glove a...
R 188.70
Feature:1.Sometimes you just need a anti-cut glove and are tired of identifying that it is the right hand glove or the left one. This anti-cut glove can save your time, as you c...
HappyFish.co.za
For Metabo DH 330 Planer Blades ...
Specifications:Compatible Models: for INTERSKOL 2092...
R 417.64 R 339.70
Specifications:Compatible Models: for INTERSKOL 2092933300150 PC-330, METABO DH 330, DH316 0911063549Blade Dimensions: 333mm x 12mm x 1.5mmMaterial: High-Speed Steel (HSS)Quanti...
HappyFish.co.za

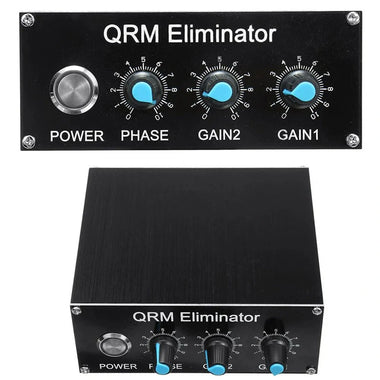

QRM Eliminator X-Fase HF Bands S...
