Specifications:

Screen Size: 0.96 inch

Screen Type: IPS

Resolution: 240xRGBx198 pixels

Active Area (AA area): 24.408(W) x 20.137(H) mm

Number of Colors (Max): 65K

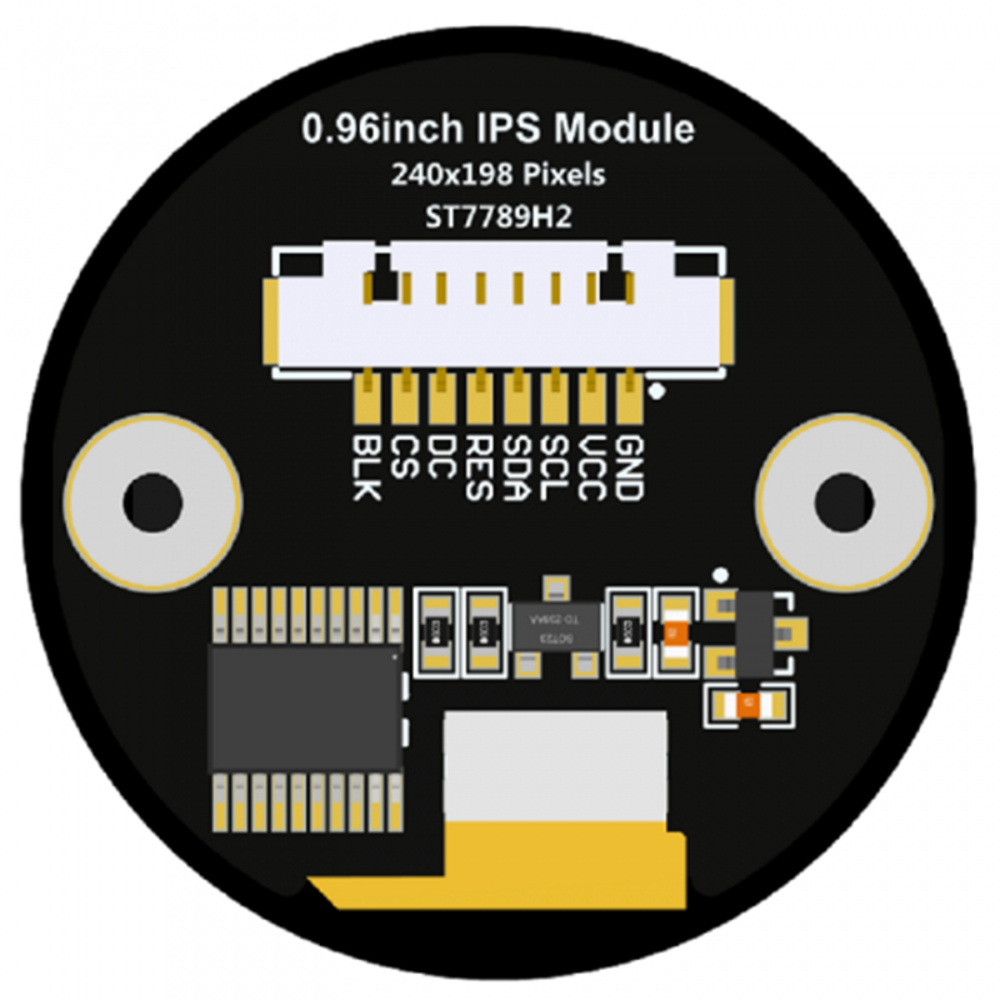

Driver IC: ST7789H2

Display Interface: 4-Line SPI

Pixel Size: 0.1017(H) x 0.1017(V) mm

View Angle: All 0’ Clock

Brightness (Typical): 300 cd/m2

Backlight Type: White LED x2

Operation Temperature: -10 to 60°C

Storage Temperature: -20 to 70°C

TFT Outline Size: 27.4(W) x 27.0(H) x 1.31(D) mm (excluding adhesive backing)

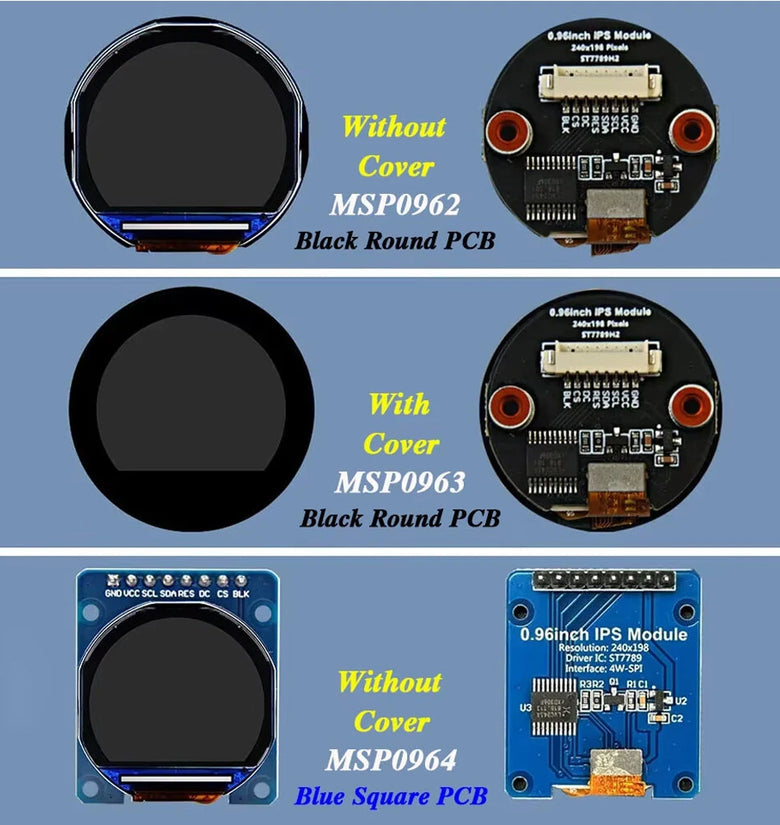

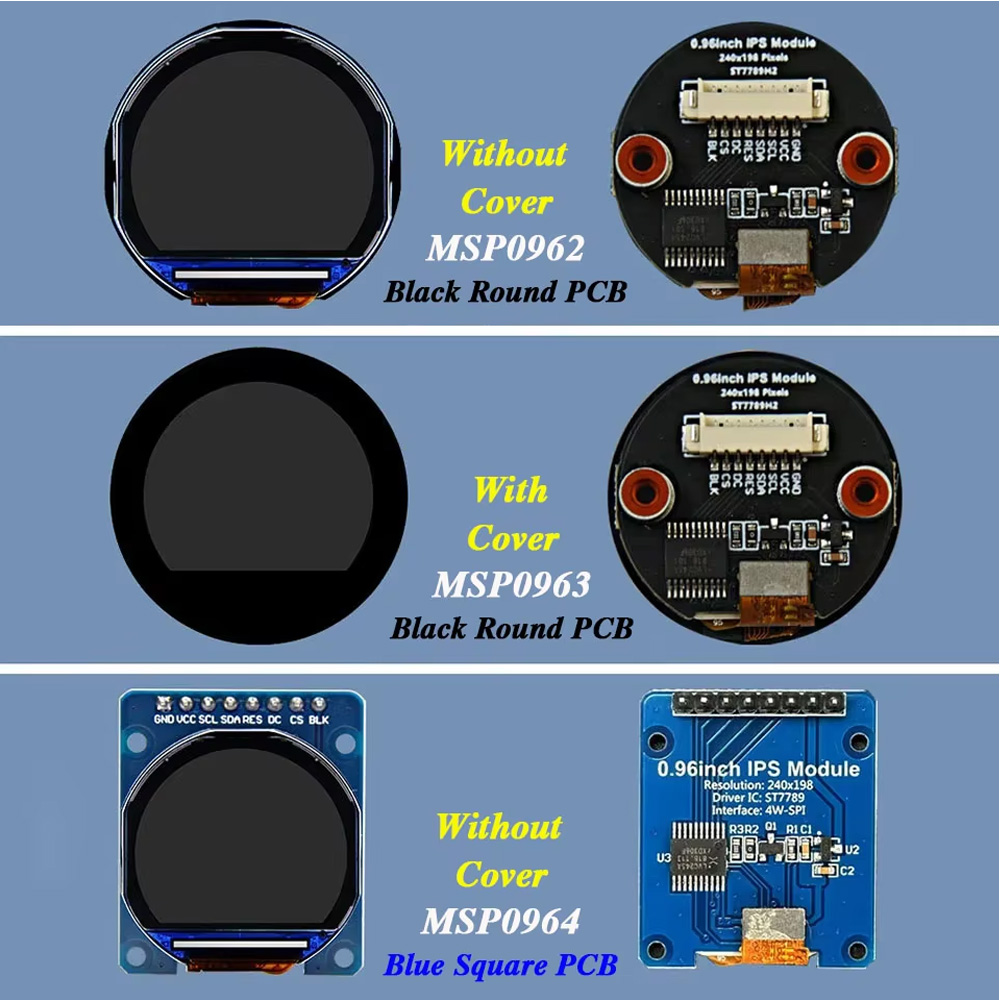

Module Outline Size:

Without Glass Cover Plate: 29.73(W) x 28.14(H) x 9.66(D) mm (including positioning columns)

With Glass Cover Plate: 31.88(W) x 31.88(H) x 9.65(D) mm (including positioning columns)

Blue Square PCB Without Glass Cover Plate: 28.4(W) x 33.0(H) x 11.17(D) mm (including pin header)

Working Voltage: 5.0V / 3.3V

Backlight Current: 40 mA

Power: 0.09W

Interface: 8P 1.25MM Slot / 8P 2.54MM Pin

Features:

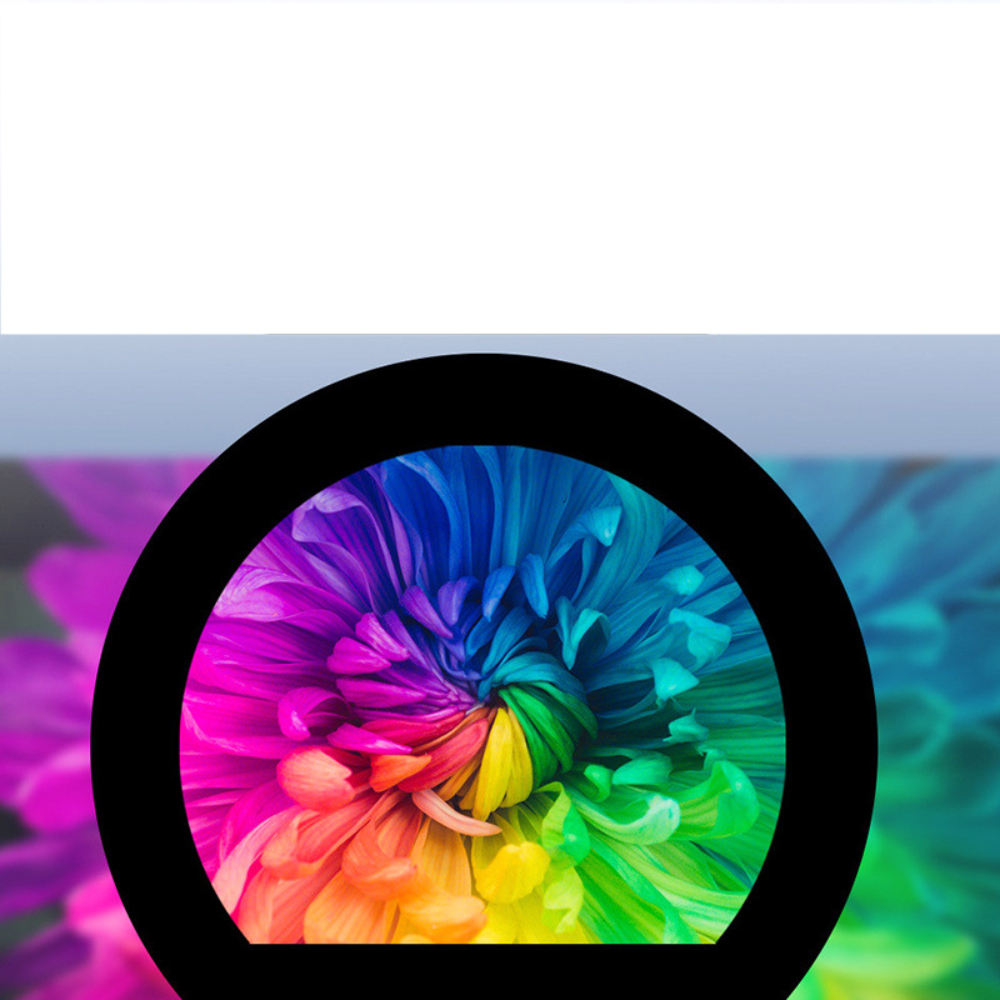

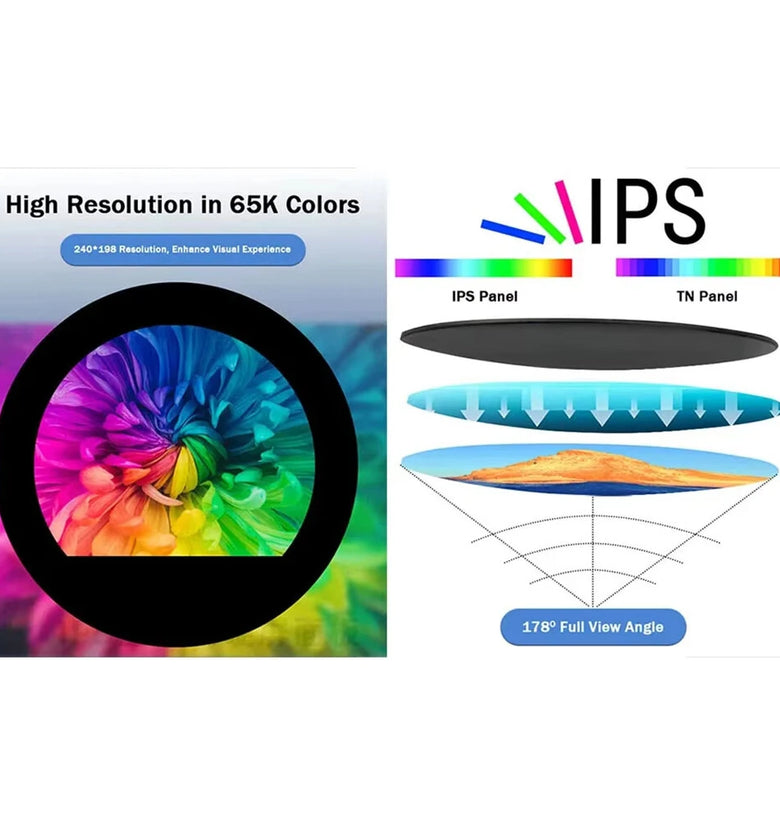

1.High-Definition Color Display: The 0.96 inch IPS screen boasts a vibrant 240x198 resolution supporting 65K colors, delivering a rich, detailed visual experience. This level of clarity ensures your projects showcase exceptional display quality.

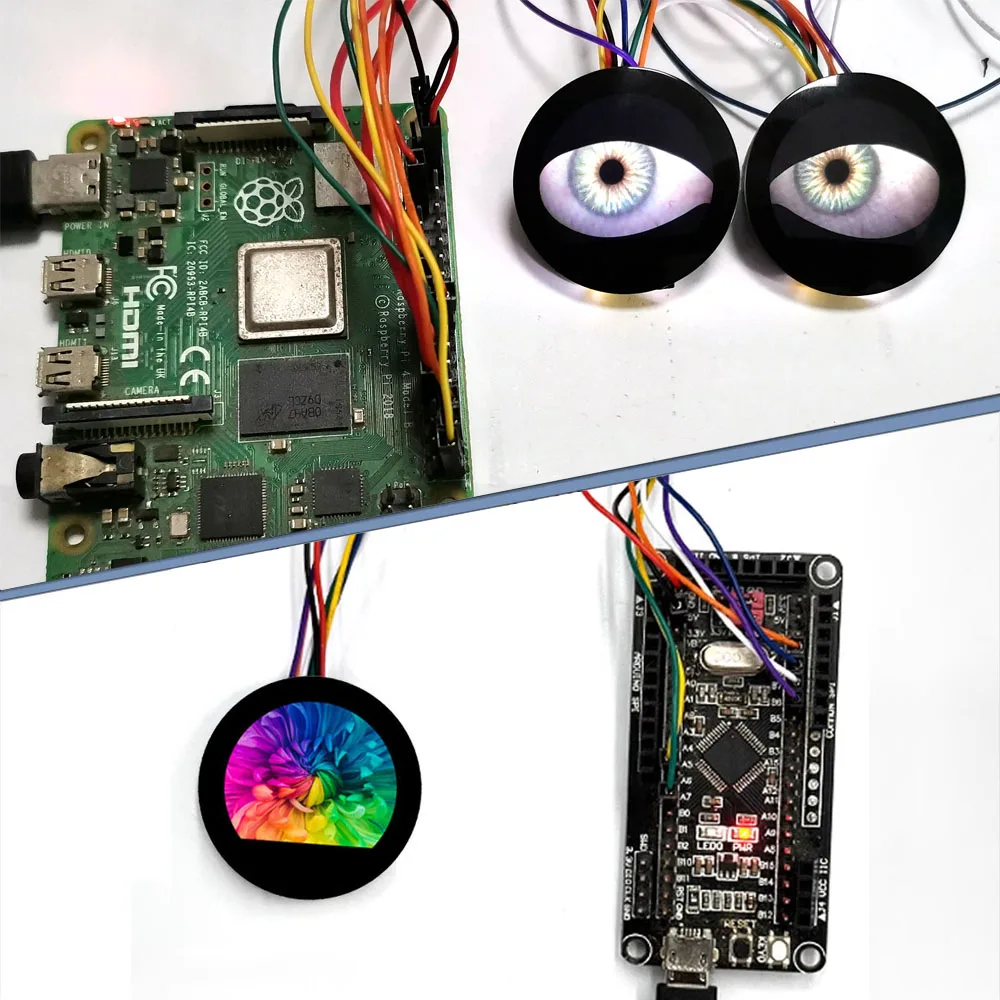

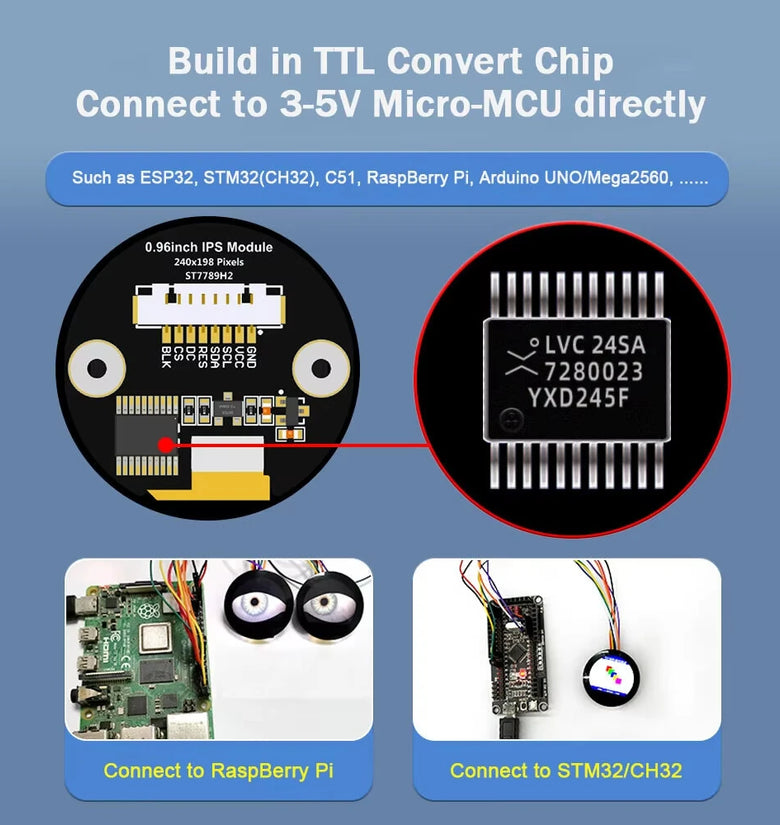

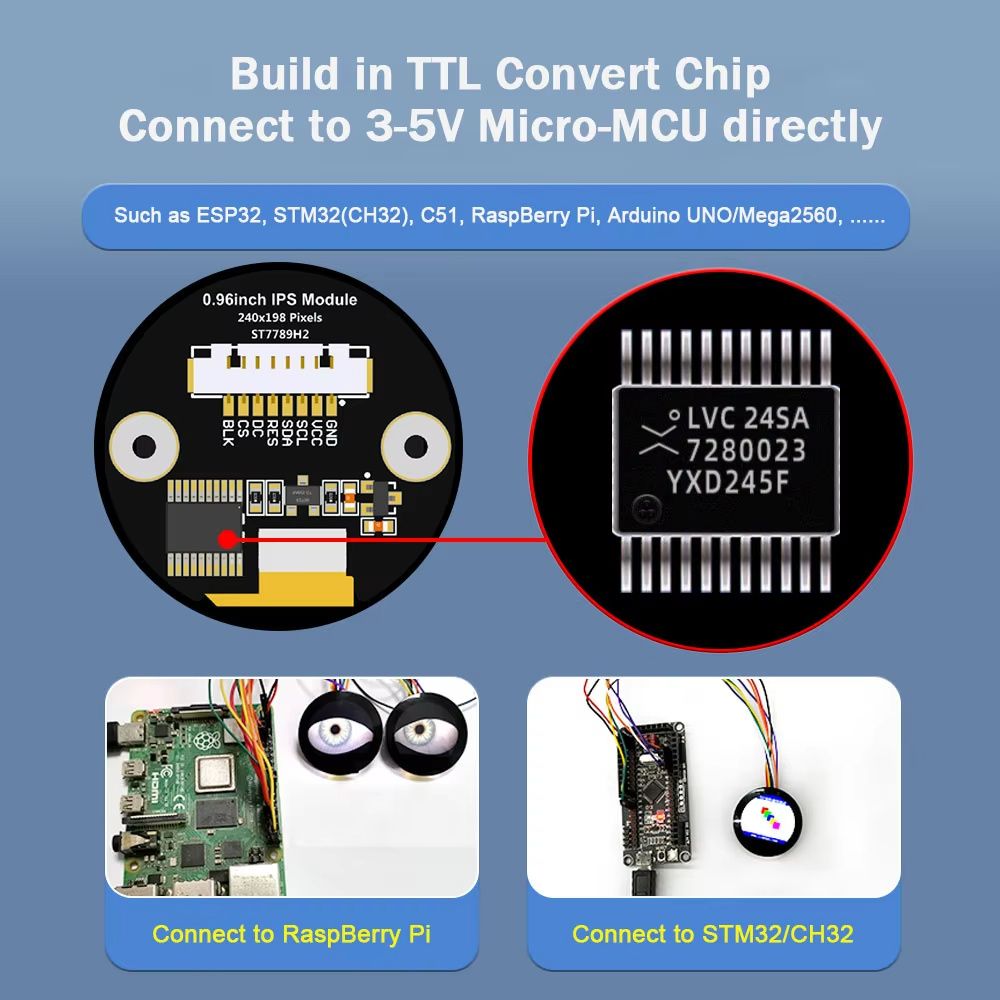

2.Versatile Interface Compatibility: Equipped with an on-board level conversion circuit, this module seamlessly integrates with both 5V and 3.3V MCUs. Whether you're using an ESP32, STM32, Arduinos UNOs & Mega 2560, C51, CH32, or Raspberry Pi, compatibility is guaranteed.

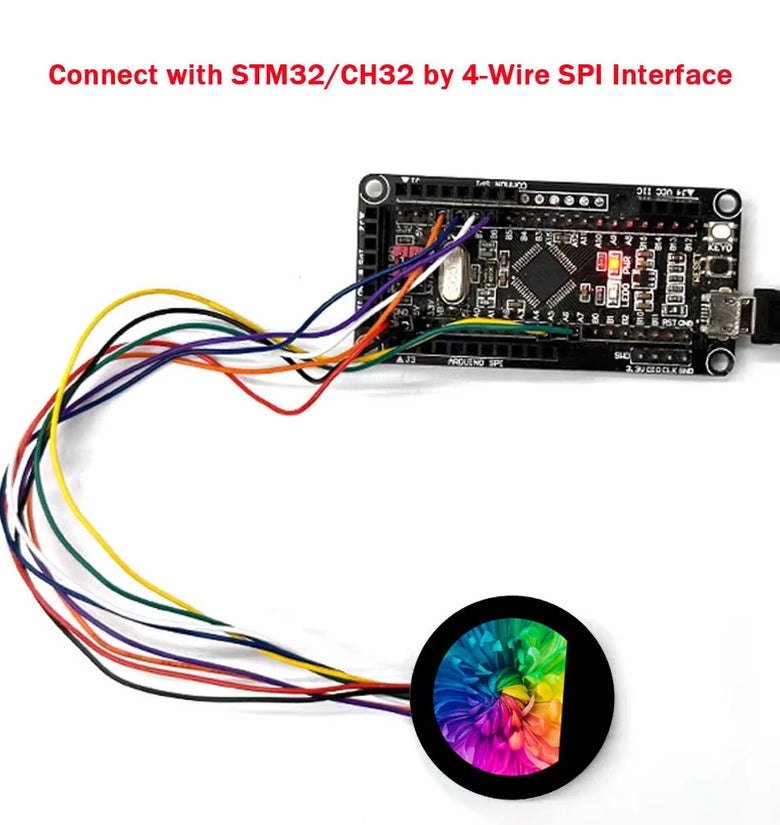

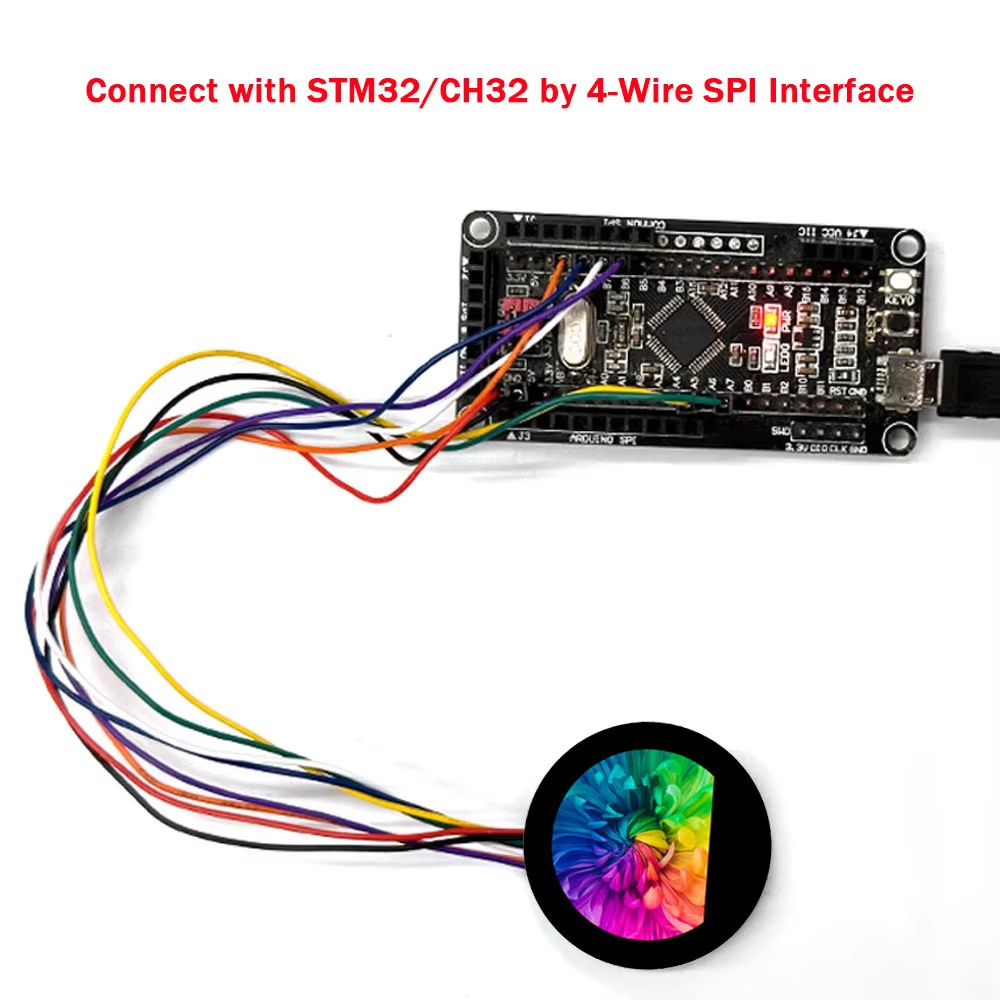

3.Efficient Pin Utilization: Utilizing a 4-wire SPI serial bus, this display module requires fewer I/O pins, simplifying your design requirements and offering more flexibility for additional peripherals within your project.

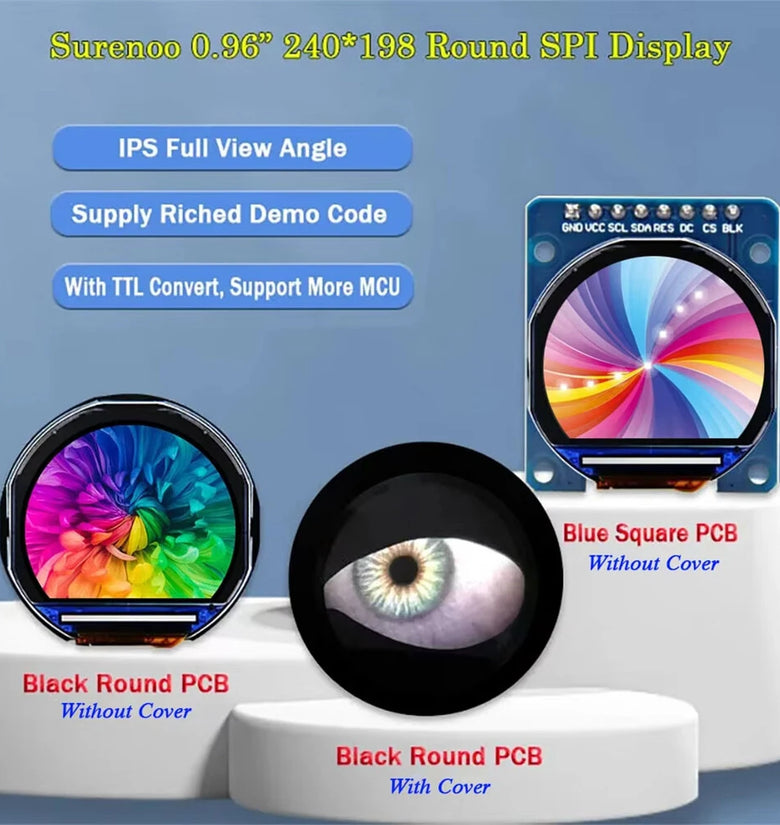

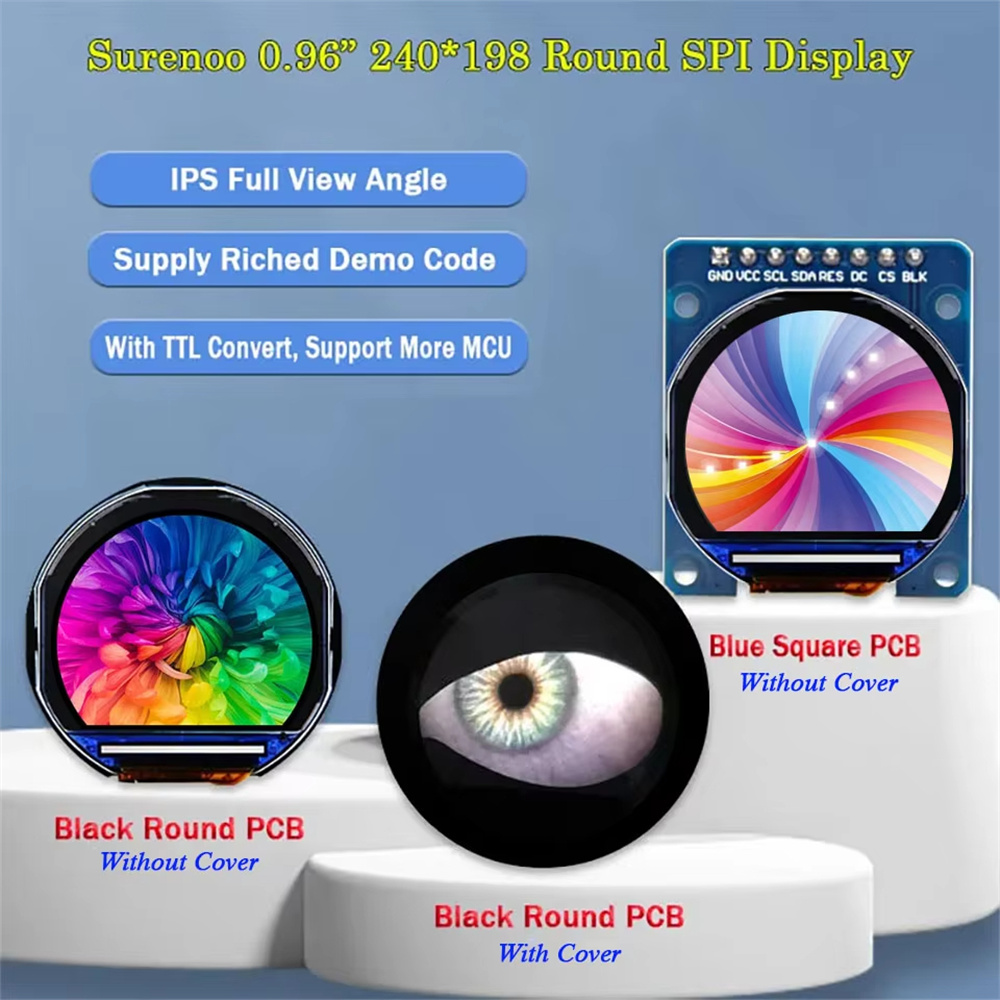

4.Long-lasting and Adaptable: The module offers variations with or without glass cover plates, catering to different project needs. The robust construction meets military-level standards, ensuring reliable performance under various conditions and extended longevity.

5.Comprehensive Support and Resources: Extensive example learning programs are provided to aid in rapid development and integration. Detailed low-level driver technical support and regularly updated WIKI information ensure you have all the resources needed for smooth implementation and continuous learning.

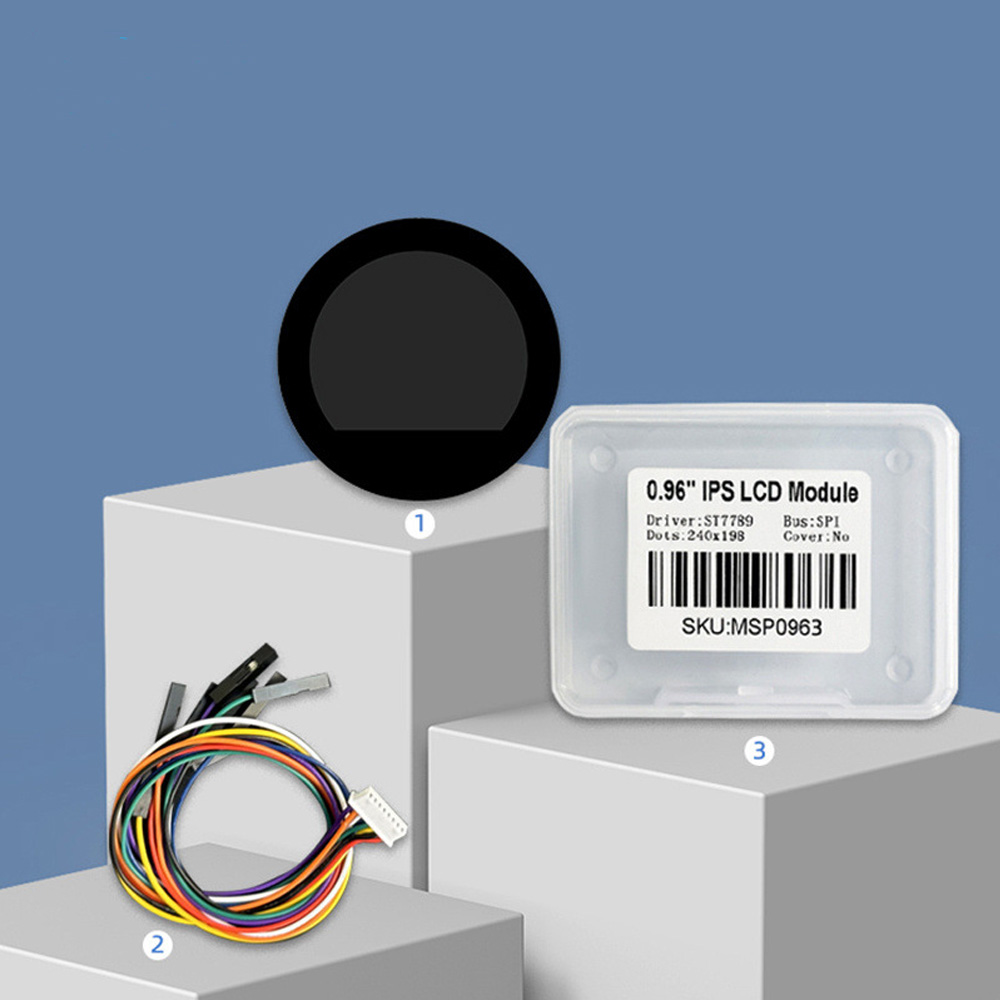

Package Included:

Package #1:

1 x 0.96 Inch IPS Color Display Module(Black Round PCB)

1 x Box

1 x 1.25mm Pitch 8P Cable

Or

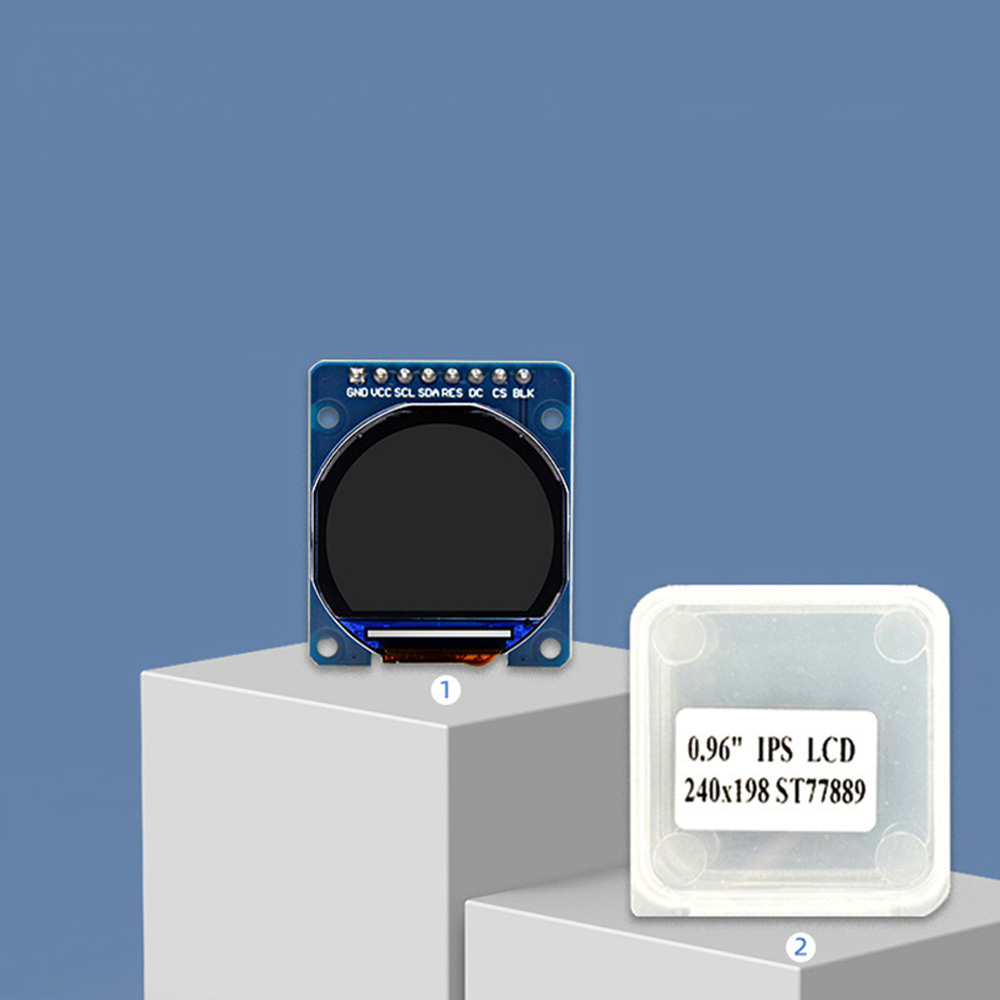

Package #2:

1 x 0.96 Inch IPS Color Display Module(Blue Square PCB)
