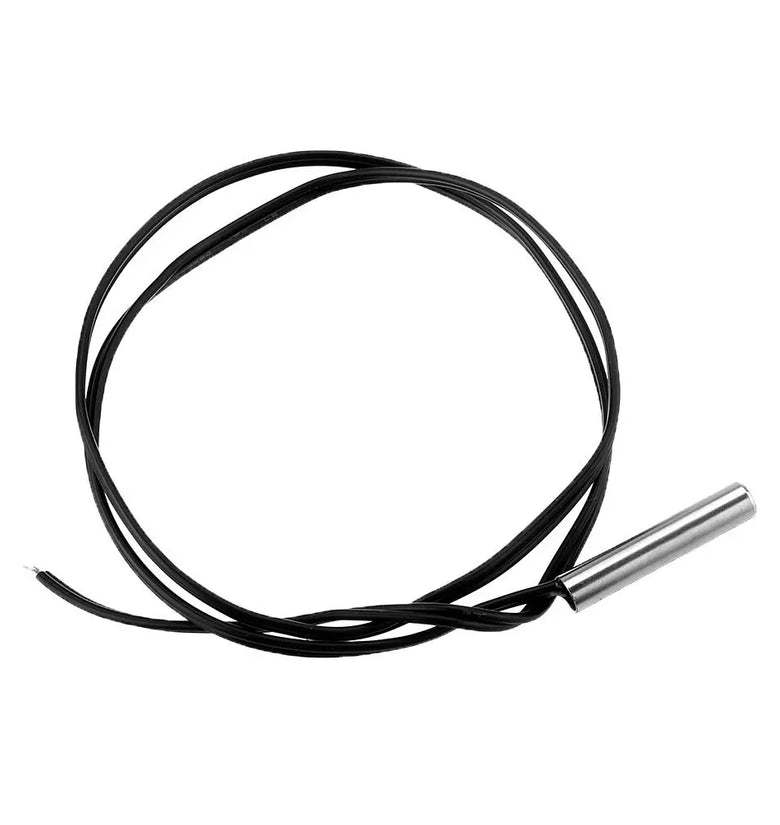

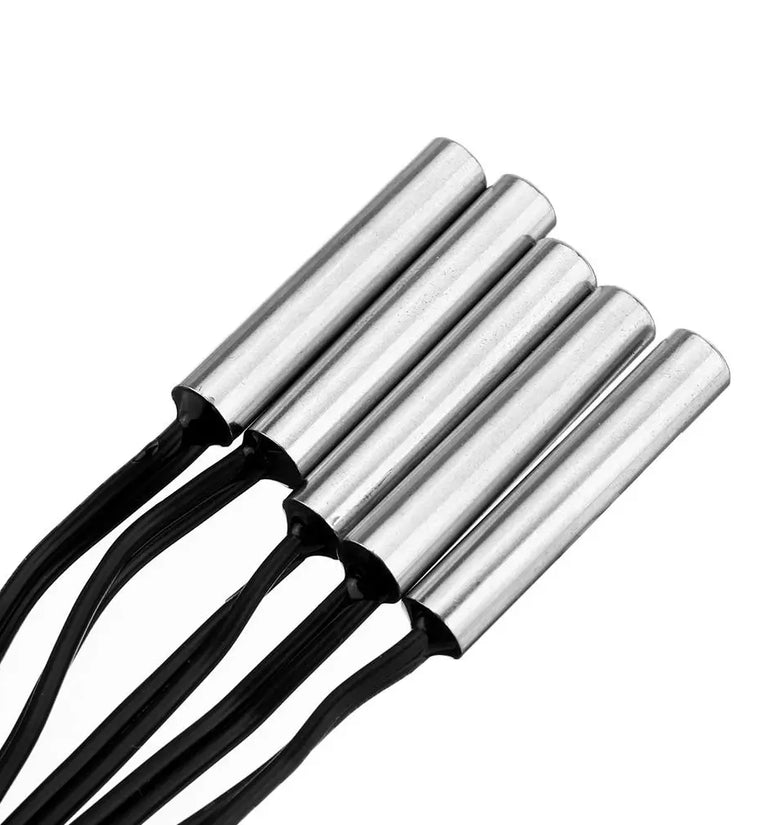

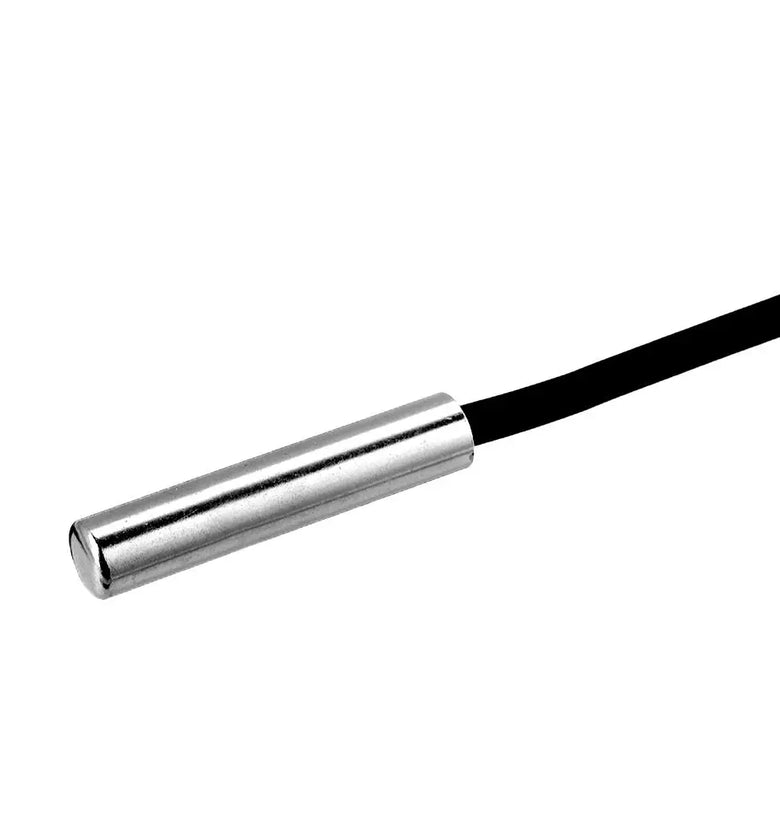

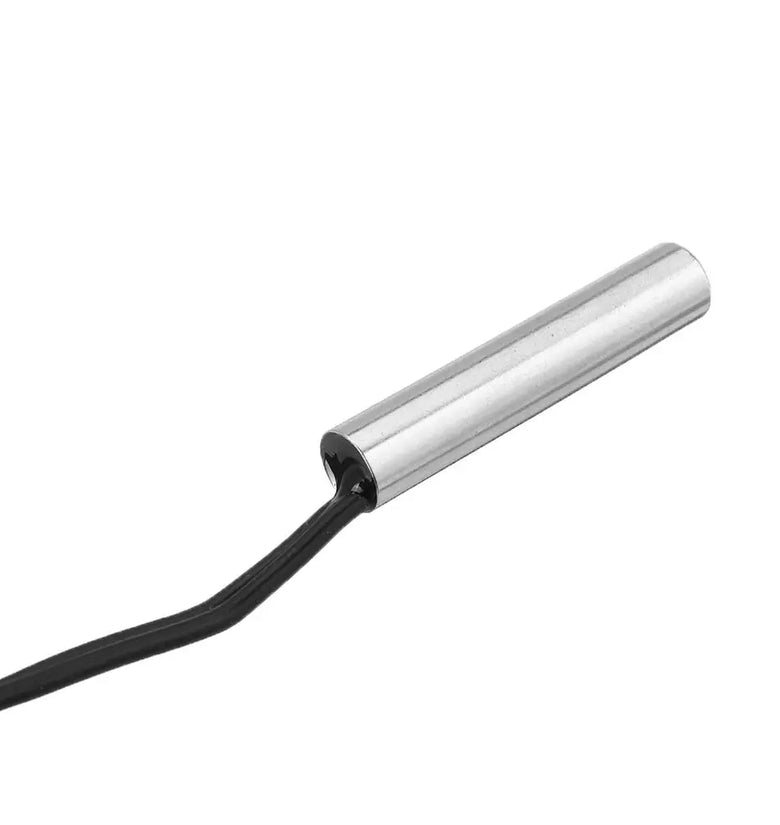

Shell specifications: copper nickel plated 5MM × 25MM cylinder
Resistance value: 10KΩ
Resistance accuracy: ±1%
Resistance B value: 3950KΩ ± 1%
Wire size: UL2651 26AWG black double parallel
Wire length: 50CM
Wire tail: dip tin 3MM
Temperature range: -25°C-125°C
Application range:
Widely used in boilers, water pumps, thermostats, pipeline temperature measurement, household air conditioners, automotive air conditioners, refrigerators, freezers, water heaters, water dispensers, heaters, dishwashers, disinfection cabinets, washing machines, dryers, and low and medium temperatures Temperature measurement and control in the case of drying ovens, incubators, etc.
Features:
1: It adopts a new process, stable product performance and long-term work. (annual resistance drift rate ≤ 1%)
2: The resistance value and the B value are high in accuracy, good in consistency, and interchangeable. (The resistance value and B value accuracy can reach ±0.5% respectively)
3: High sensitivity and rapid response. (The temperature coefficient of resistance can reach -(2~5)%/°C)
4: It adopts double-layer sealing process, has good insulation sealing and anti-mechanical collision, anti-bending ability and high reliability.
5: It can be packaged according to the installation conditions used, which is convenient for users to install.
6: Can be made into high-dissipation products, the test current can be much higher than the traditional structure of the sensor, simplifying the test circuit.
Package included:

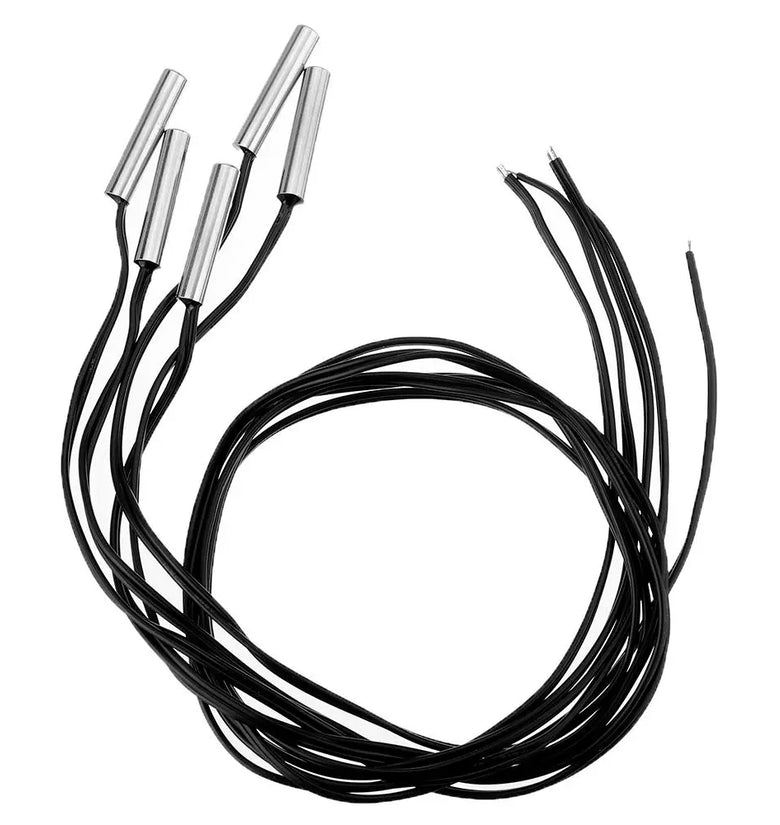

15 x Temperature Sensor
