Features:
1. Good anti-interference performance and high reliability.
2. Low operating temperature and long service life.
3. Wide input voltage range, (100-240V) in line with global usage standards.
4. Good insulation performance and high electric strength.
5. Full load high temperature burning machine, 100% aging test.
Specifications:
Model: HS-60-12
DC output voltage: 12V
Output voltage tolerance: ±1%
Rated output current: 5A
Output current range: 0 - 5A
Ripple and noise: 100mVp-p
Line stability: ±0.5%
Load stability: ±0.5%
DC output power: 60W
Efficiency: 85%
DC voltage adjustable range: ±10%
Input voltage range: 100 ~ 240VAC 47 ~ 63Hz; 120-370VDC
Input current: 2A/115V 1A/230V
Inrush current: cold start current 30A/115V 60A/230V
Leakage current: <3.5mA/240VAC
Overload protection: 105%~150%
Overvoltage protection: 15%-135%
Temperature coefficient: ±0.03%/°C (0-50°C)
Start, rise, hold time: 800ms, 50ms, 115VAC 300ms, 50ms/230VAC
Shock resistance: 10 - 500Hz, 2G 10min, / 1 cycle, a total of 60 points, each axle
Pressure resistance: input and output: 3KvAC input and housing; 1.5KvAC output and housing; 0.5KvAC
Isolation resistance: input and output, input and housing, output and housing: 500VDC/100MΩ
Working temperature, temperature: -10 ° C - +60 ° C, 20% - 90% RH
Storage temperature, temperature: -20 ° C -+85 ° C, 10% - 95% RH
Dimensions: 85 × 60 × 34mm
Package Included:

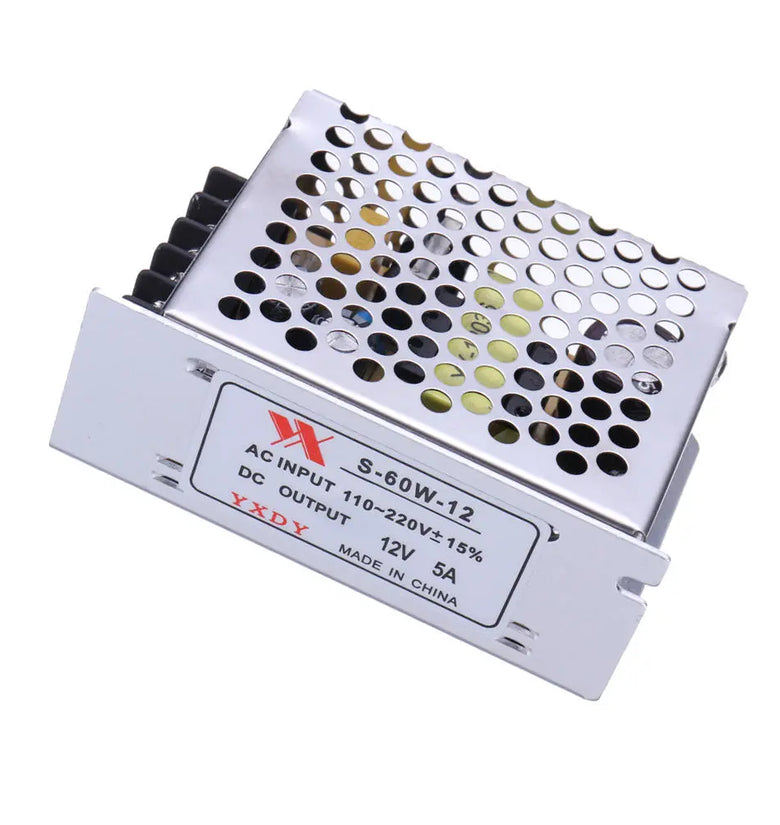

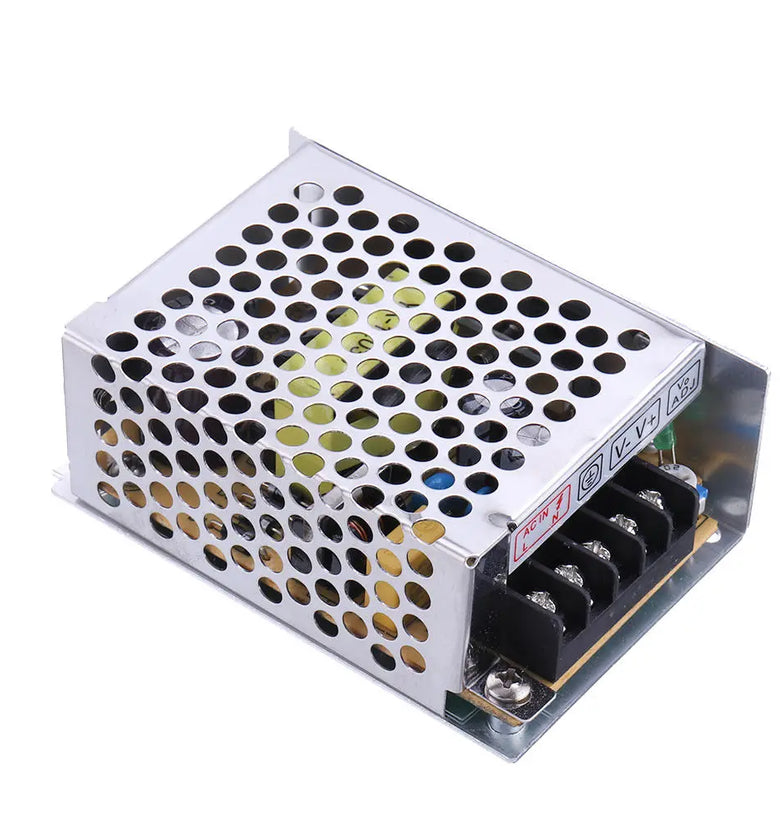

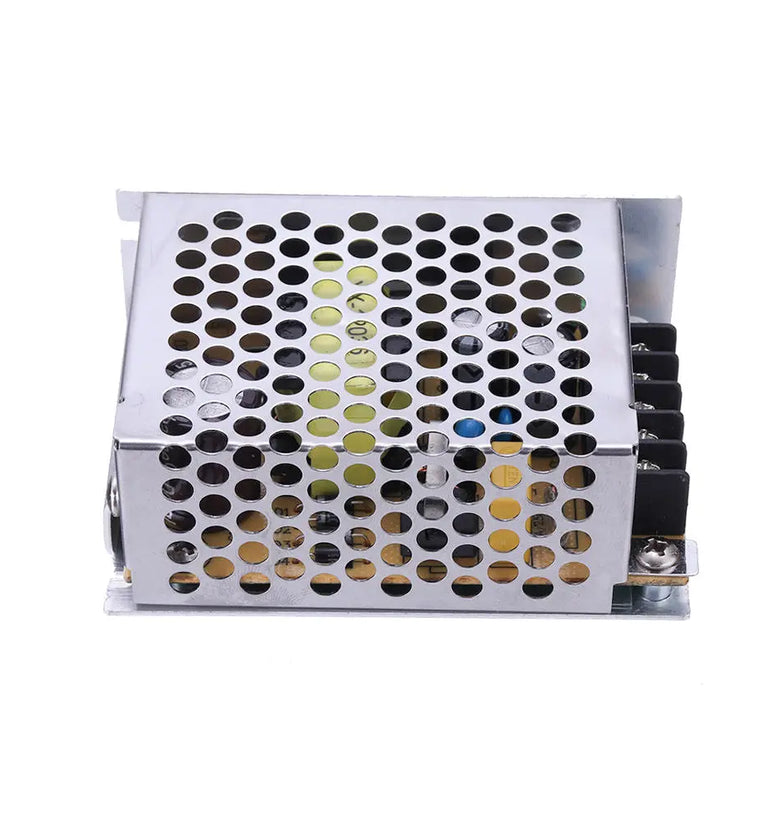

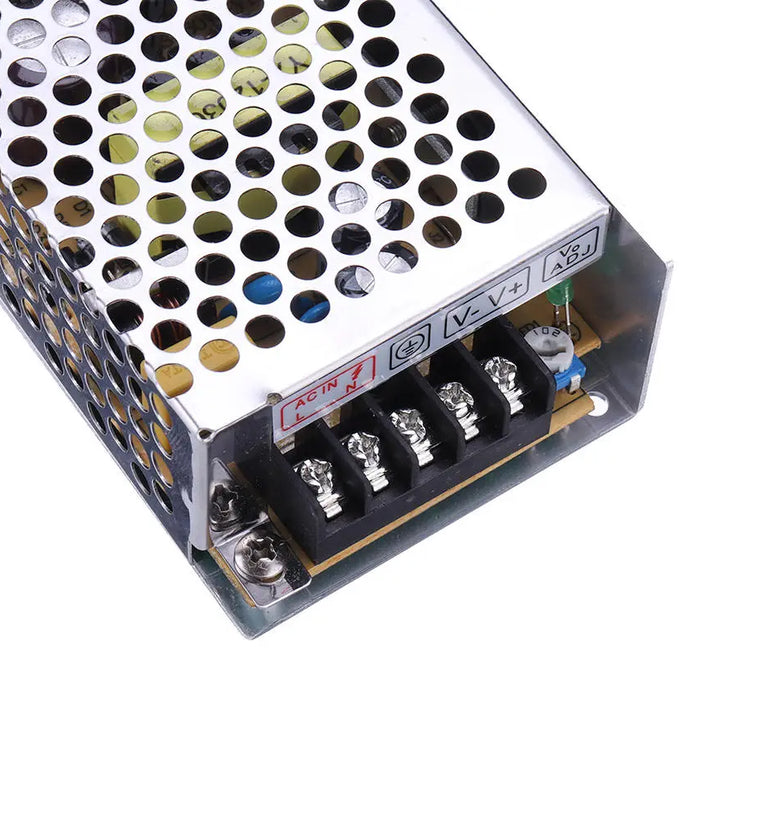

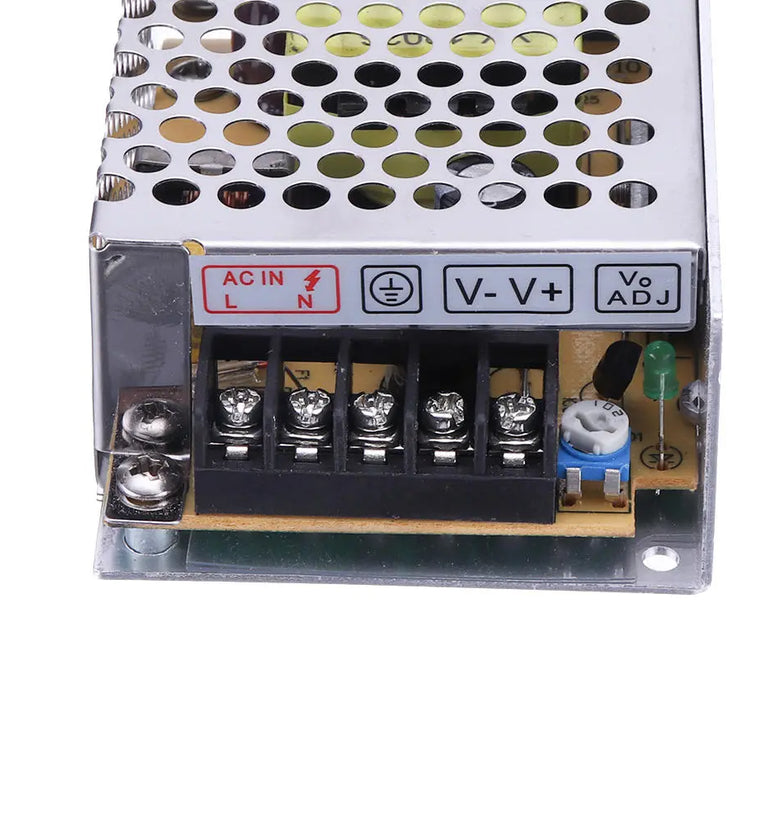

2 x AC 100-240V to DC 12V 5A 60W Switching Power Supply Module
