Description:

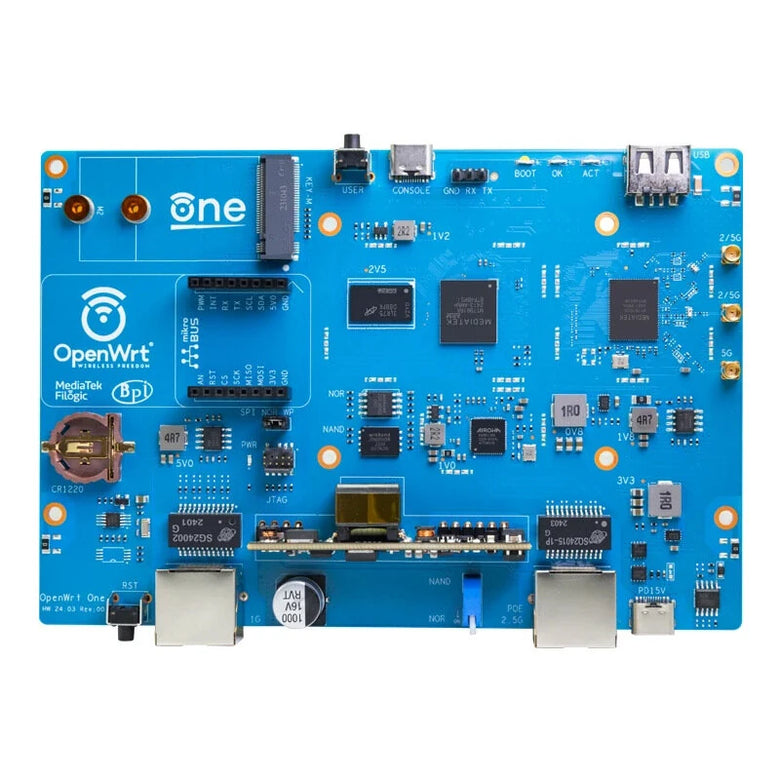

1. The 'OpenWrt One/AP-24.XY' router board based on MediaTek MT7981B (Filogic 820) SoC and MediaTek MT7976C dual-band WiFi 6 chipset.It is the first official development board of the OpenWRT open source community

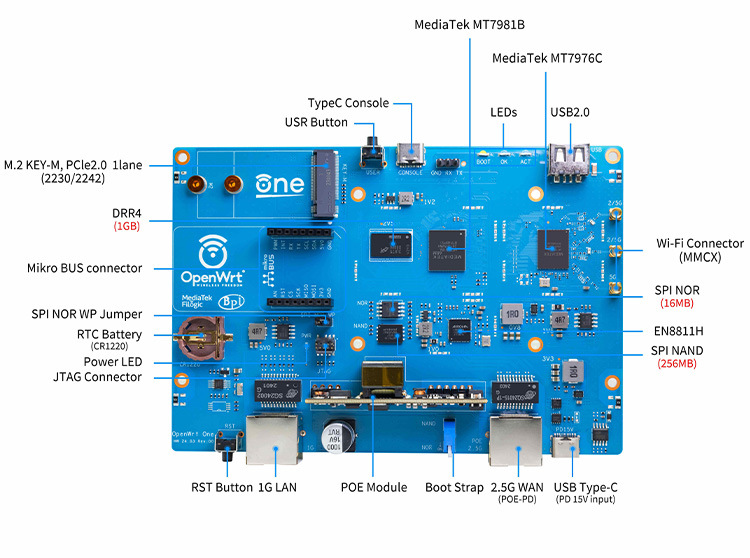

2. OpenWrt One is a device based on the MediaTek Filogic 820 SoC that has WiFi 6, dual-band, 3×3/2×2, 1 x 2.5Gbit WAN, 1 x 1Gbit LAN, 1GB DDR4 RAM, 256 MiB NAND, 16 MiB NOR, M.2 SSD and USB 2.0.
3. OpenWrt One uses Mediatek’s MT7981B SoC with a dual-arm Cortex-a53 core at 1.3 GHz, 1 GB DDR4 RAM and 256 MiB SPI NAND storage. It also integrates 16 MiB of additional protected storage as a system backup, dual storage hardware to ensure that the onboard system is unbrickable, and finally integrated M.2. 2230/2242 NVMe PCIe 2 X1 ports can be used to add external storage. And with a battery holder for an internal clock, OpenWrt One offers a USB 2.0 Type-A and a mikroBUS expansion port to provide more interfaces to a host of technical possibilities.
Specifications:
| SoC controller | MediaTek MT7981B (Filogic 820) dual-core Cortex-A53 processor 1.3GHz frequency |
| Memory | 1GB DDR4 |
| Storage | 128 MB SPI NAND flash memory for U-boot and Linux systems |
| 4 MB SPI NOR flash for write-protected (default) recovery bootloader (can be refreshed for own use via jumpers) | |
| Using two types of flash devices makes the board nearly unbreakables | |
| M.2 2242/2230 interface supports NVMe SSD hard drive (PCIe gen 2 x1) | |
| Network | 1x2.5GbE RJ45 full mouth |
| 1x Gigabit RJ45 terminal | |
| Dual-band WiFI6 wireless network supported by MediaTek MT7976C (2x2 2.4 GHz +3x3/2x2 +zero-wait DFS 5Ghz) | |
| 3x MMCX antenna interface | |
| USB interface | 1x USB 2.0 Type-A host port |
| USB Type-C (device, console) port using Holtek HT42B534-2UART to USB chip | |
| Extensions | MikroBUS extension module socket |
| Debug | Console connected via USB-C port into 3-pin header, 10-pin JTAG/SWD header for main SoC |
| RTC real-time clock | Supports onboard RTC real-time clock |
| Other | Reset and user interface buttons |
| Startup method selector switch: NAND (normal) or NOR (recovery) | |
| 2x PWM LED.2x Ethernet LED (GPIO driver) | |
| EM6324 External hardware watchdog | |
| NXP PCF8S63TS (12C) RTC with CR1220 coin cell battery backup holder | |
| Powered by | 12V USB-PD on USB-C port (may have been changed to brightest 15V) |
| 802.3at/af PoE network power can be created through Banana Pi RT5040 module | |

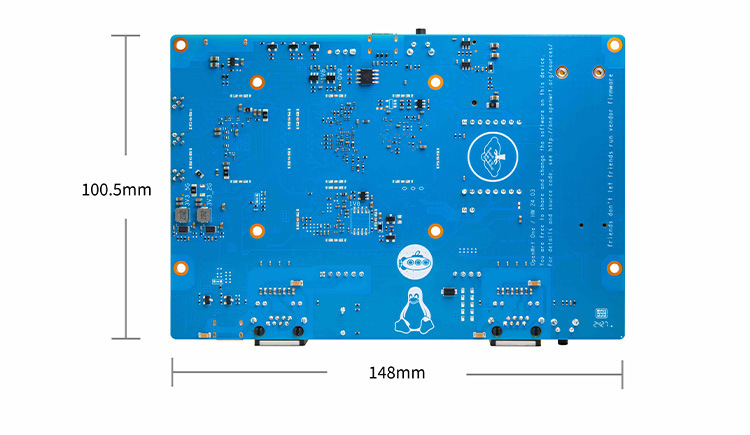

| Dimensions | 148x100.5 mm Compatible with Banana Pi BPI-R4 case design |
Features:
1. Powerful Performance: Equipped with a MediaTek MT7981B dual-core processor @1.3GHz and 1GB DDR4 memory for enhanced computing capabilities.2. High-Speed Connectivity: Supports 2.5GbE and Gigabit Ethernet RJ45 ports for fast wired network connections.
3. Dual-Band WiFi 6: Leverages MediaTek MT7976C WiFi 6 chipset ensuring stable and fast wireless connections with dual bands.
4. Flexible Storage Options: Comes with 128MB SPI NAND, 16MB SPI NOR, and an M.2 slot supporting NVMe SSD for versatile storage expansion.
5. Open Source Compatibility: Fully compatible with OpenWrt, ideal for users who prefer open-source firmware for customization and advanced functionalities.
6. Rich Expansion Interfaces: Includes MikroBUS slot, USB 2.0 Type-A, RTC battery support, allowing for various peripheral expansions and enhancements.
Package Include:
Board Only:
1x Module Board

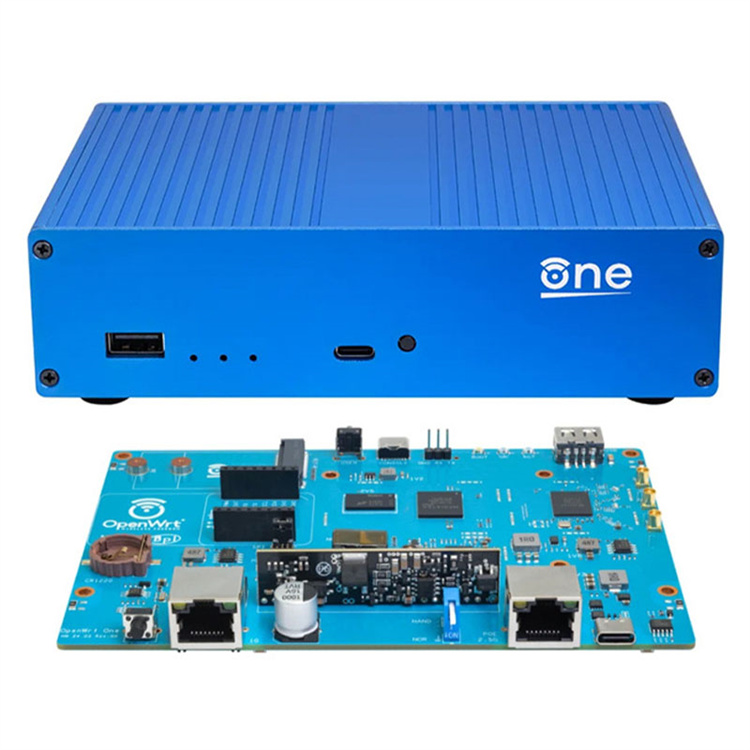

Full Kit(EU Plug):
1x Openwrt One Motherboard+dissipation+RT5400 PoE Module
1x Opennwrt One Shell
3x 3dB Antennas
1x Cable
1x Power Supply(EU Plug)
Full Kit(US Plug):
1x Openwrt One Motherboard+dissipation+RT5400 PoE Module
1x Opennwrt One Shell
3x 3dB Antennas
1x Cable
1x Power Supply(US Plug)
