Module Model: BW16
Package: SMD-16
Module Dimensions: 24mm x 16mm x 3(+0.2)mm
Development Board Dimensions: 80mm x 60mm x 30mm
Antenna Type: IPEX Interface
Wi-Fi Frequency Range: 2400-2483.5MHz or 5180-5825MHz
Bluetooth Version: BT5.0
Bluetooth Frequency Range: 2.402GHz–2.480GHz
Supported Interfaces: UART, GPIO, ADC, PWM, IIC, SPI, SWD
Supply Voltage: 3.0V–3.6V (Typical 3.3V)
Power Supply Current: >450mA
Operating Temperature: -20℃ to 70℃
Storage Conditions: -40℃ to 125℃, <90% RH
Features:
1. Dual-Band Wi-Fi Connectivity: Supports 802.11a/b/g/n 2.4GHz and 5GHz frequency bands, enabling consistent and fast network performance.
2. Integrated Security Engine: Equipped with AES/DES/SHA hardware encryption and TrustZone-M support for enhanced system security and secure boot functionality.
3. Power-Efficient Bluetooth 5.0: Features energy-efficient Bluetooth 5.0 technology, with support for high power output using a shared amplifier module.
4. Flexible Operating Modes: Offers STA, AP, and STA+AP modes, along with Android/iOS one-tap network configuration for simplified setup.
5. Versatile Interface Support: Includes UART, GPIO, ADC, PWM, IIC, SPI, and SWD interfaces, ideal for various application scenarios in IoT projects.
Package Included:

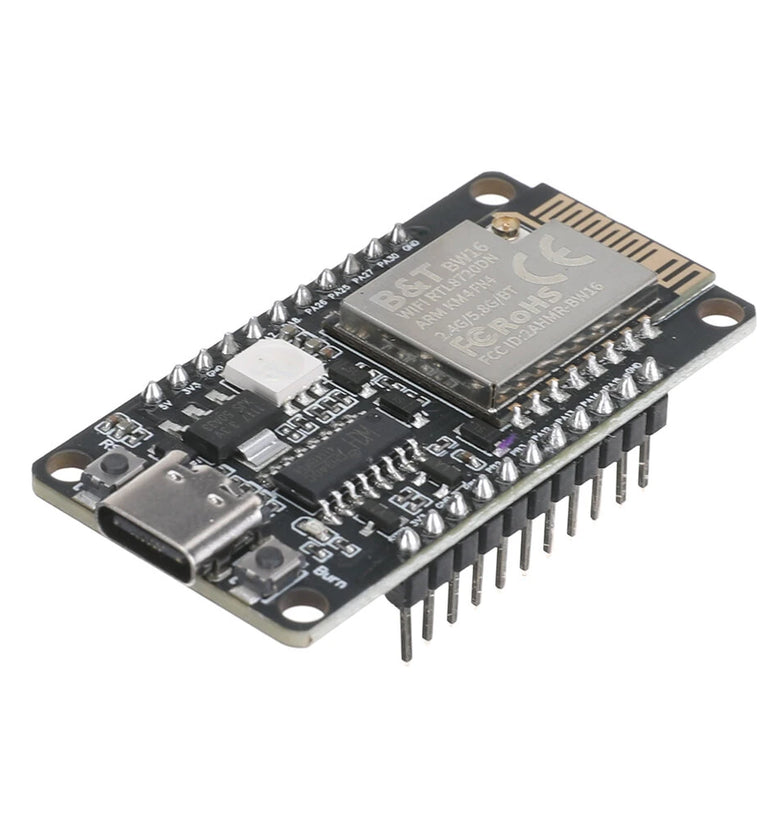

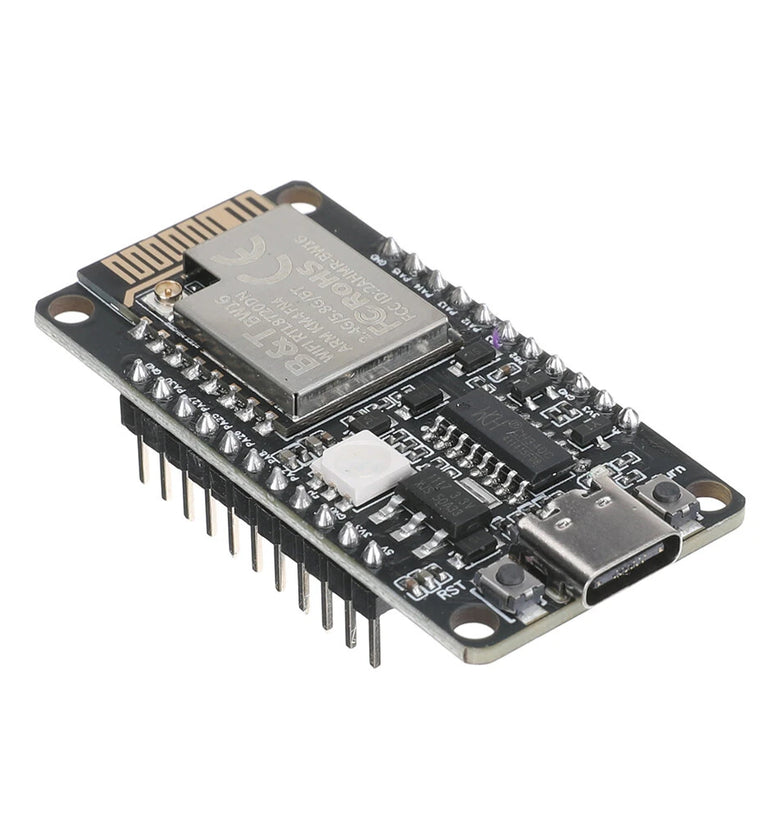

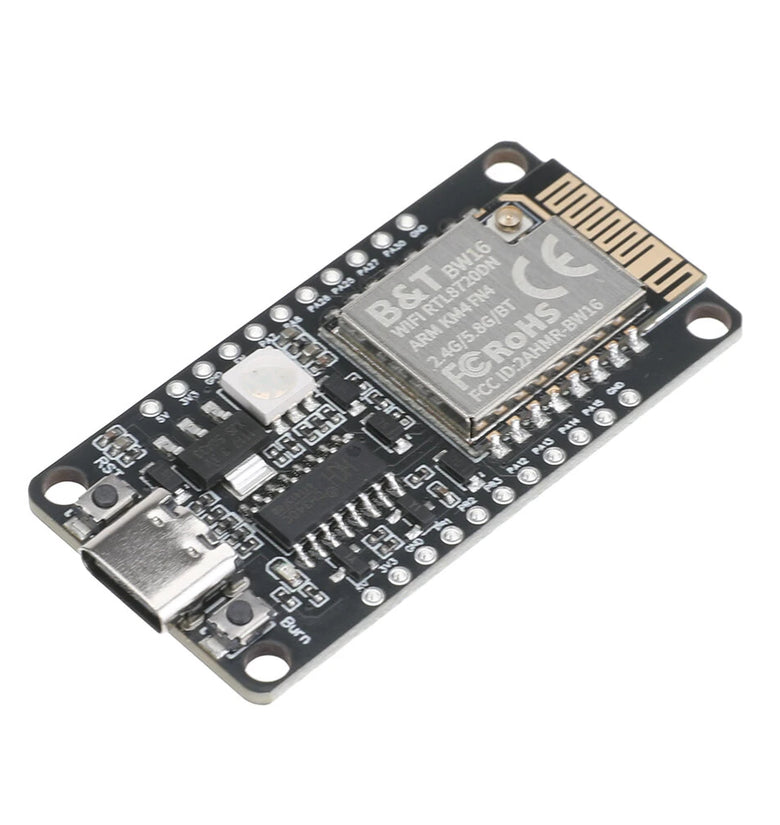

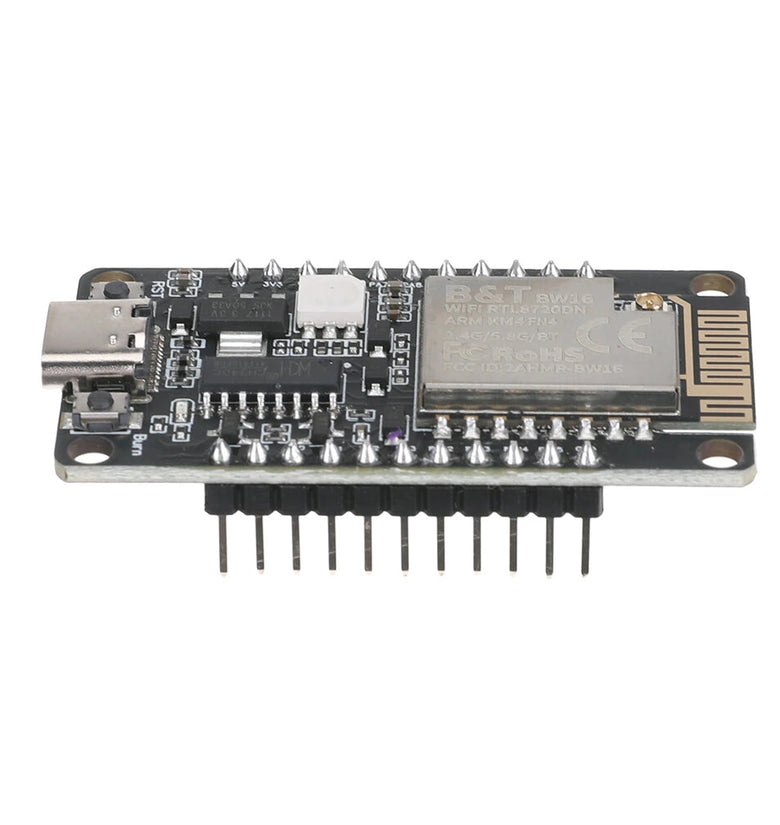

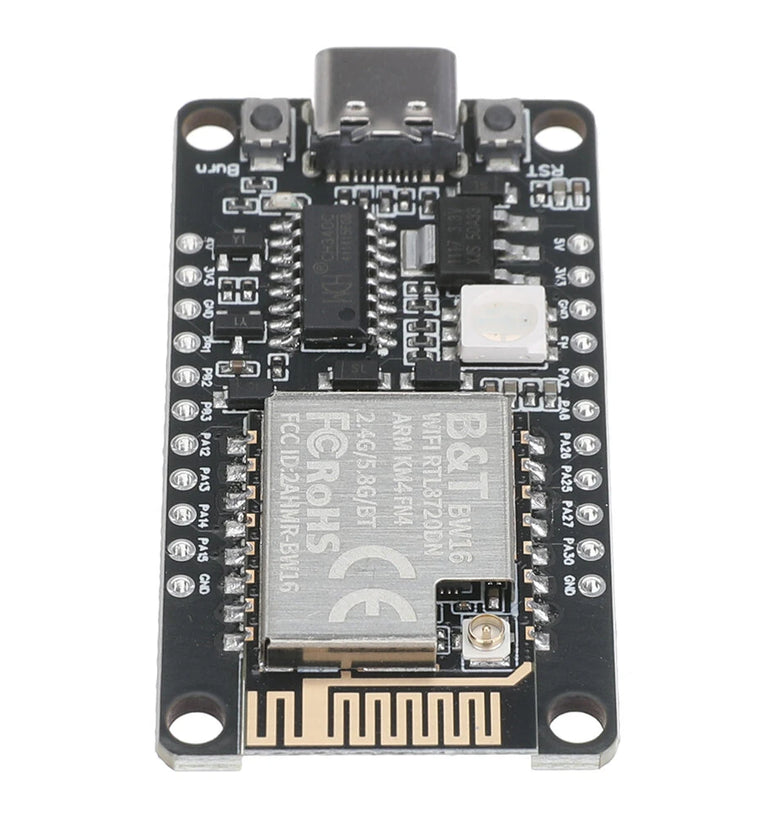

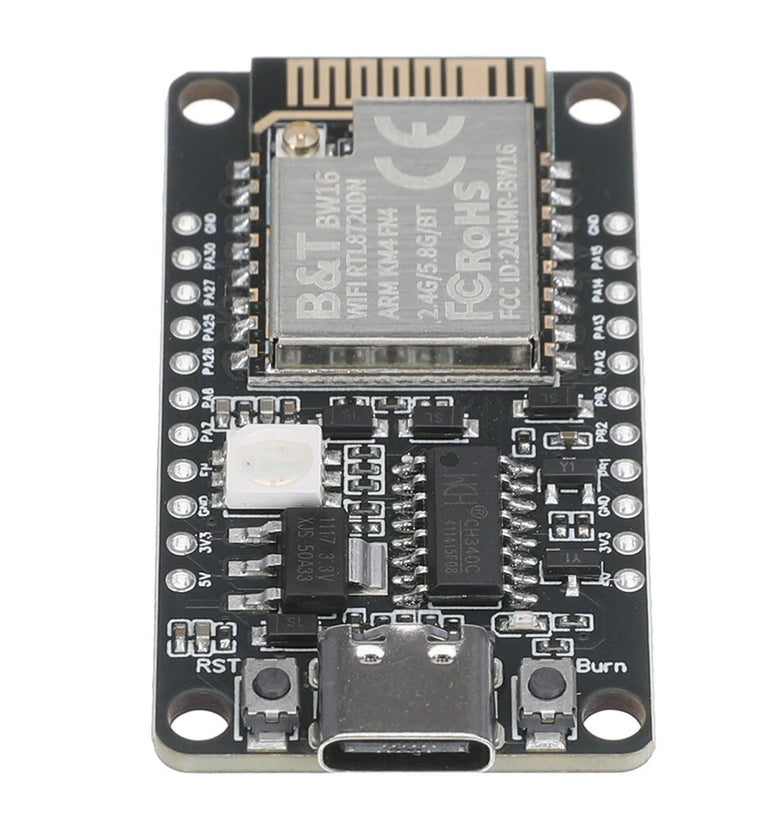

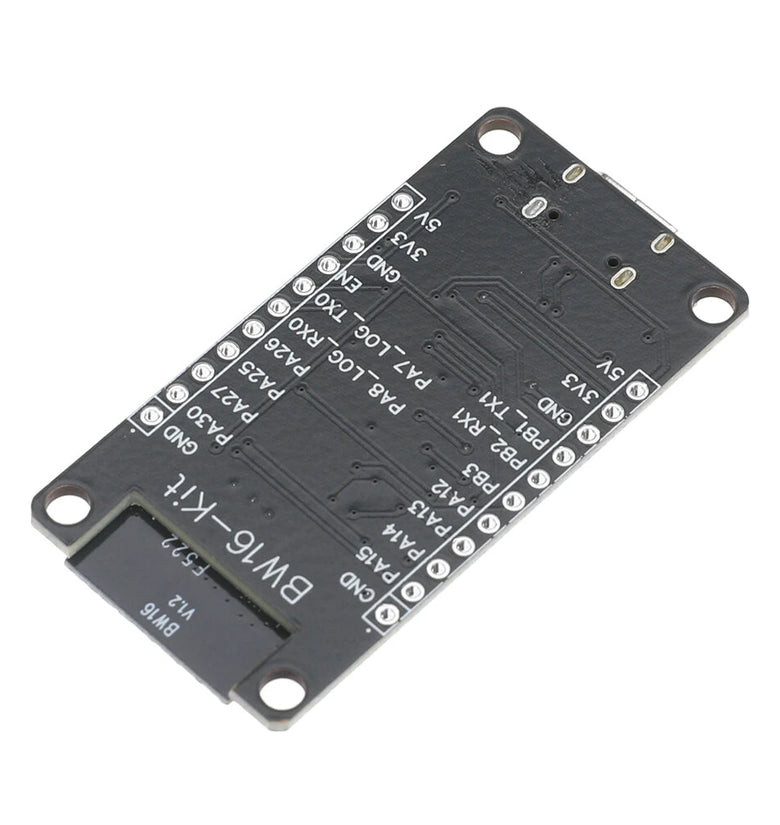

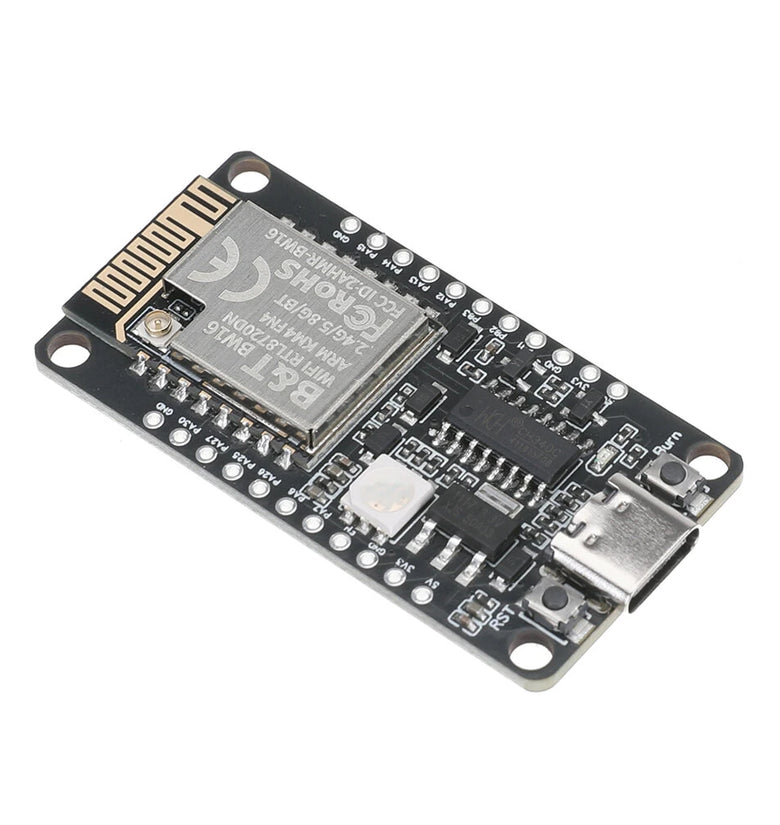

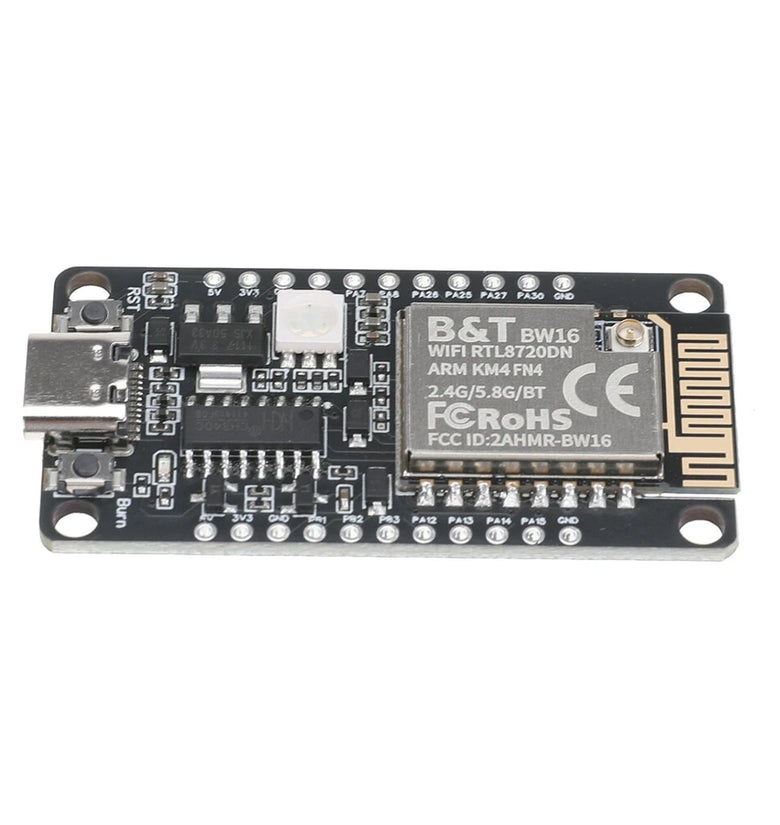

1 x BW16-Kit RTL8720DN Development Board
