Features:

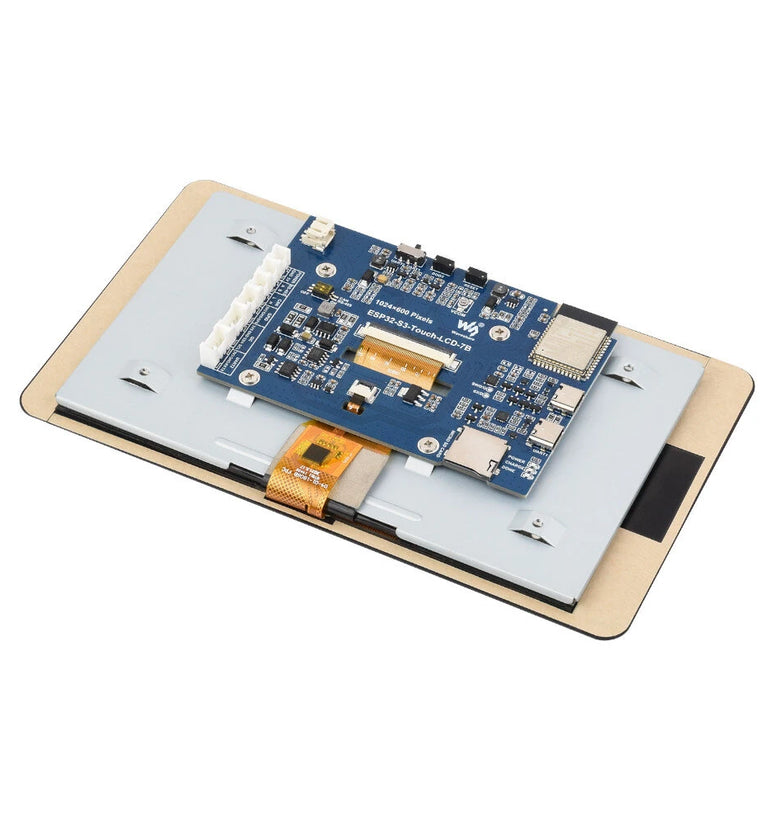

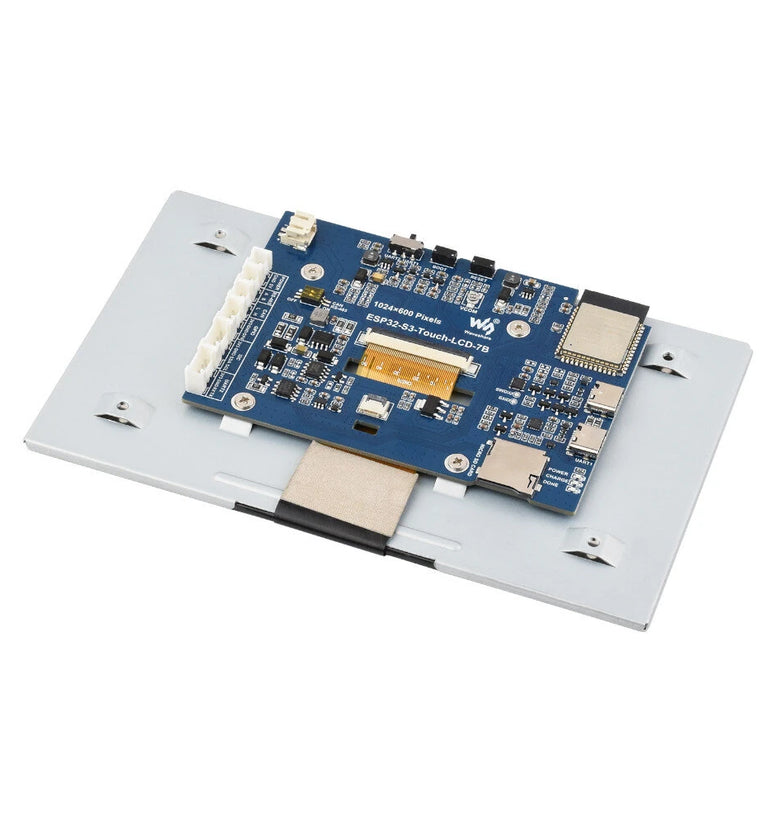

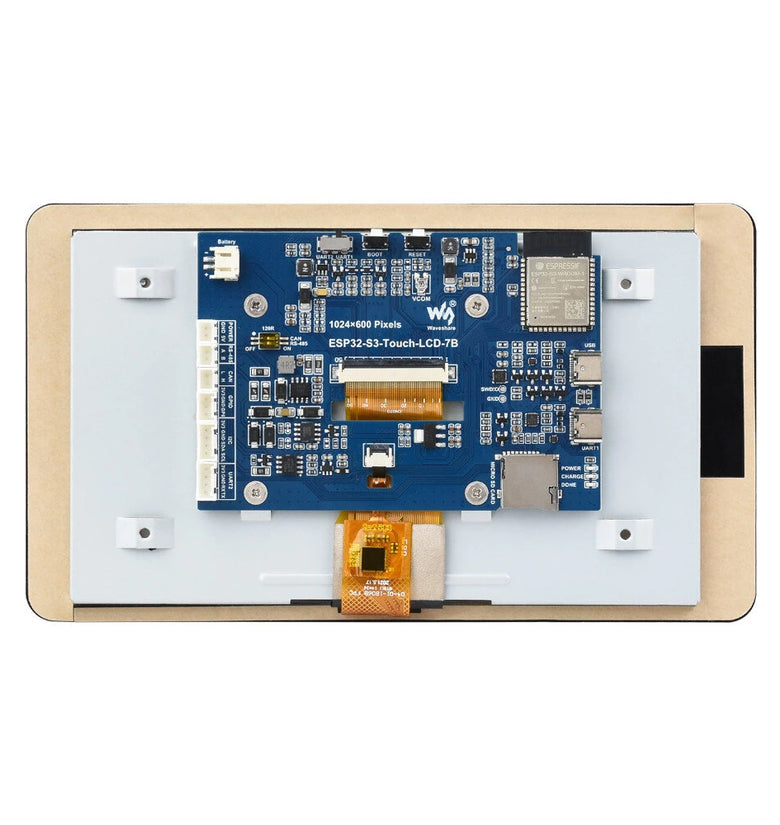

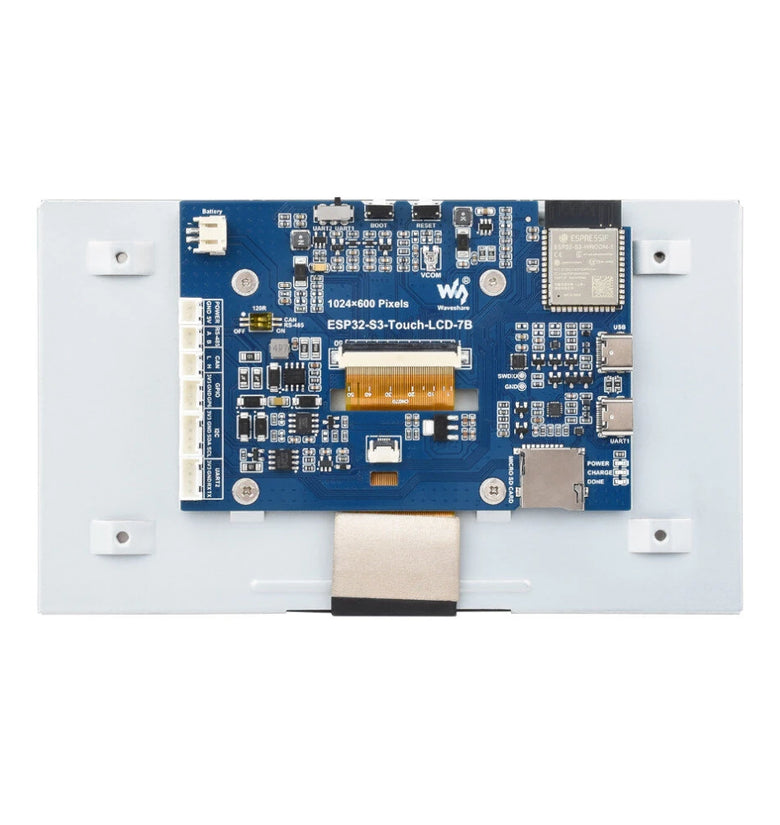

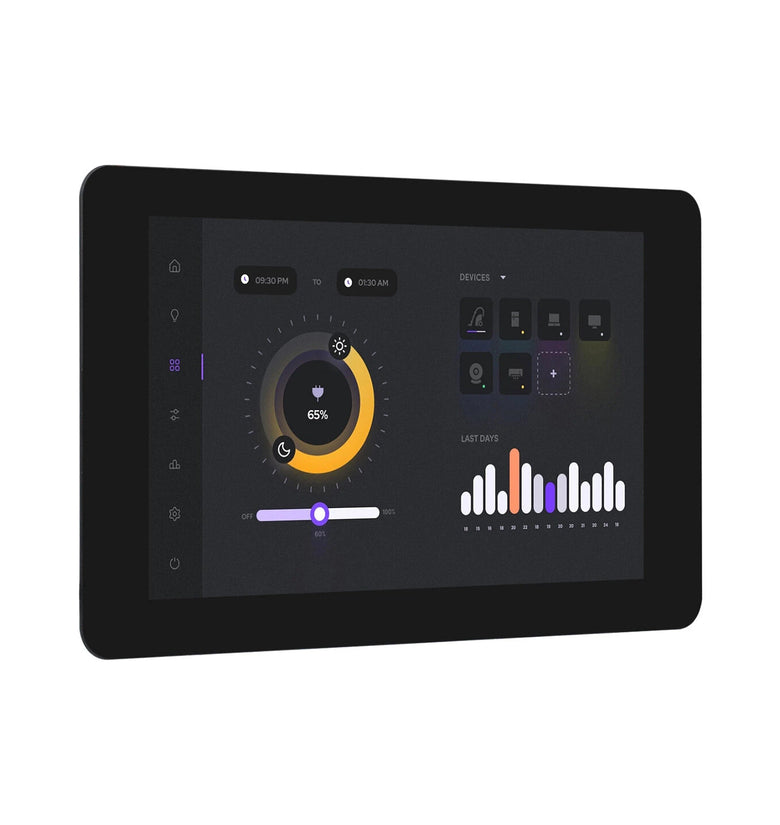

This product is a microcontroller development board that supports 2.4GHz Wi-Fi and Bluetooth BLE 5, integrates high-capacity Flash and PSRAM. Onboard 7inch LCD display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapid development of ESP32-S3 HMI applications.
1. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna3. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM4. Onboard 7inch LCD display, 1024 × 600 resolution, 65K color5. Supports 5-point capacitive touch control via I2C interface, with interrupt support (for touch version only)6. Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port7. LED indicators for easy monitoring of power status and battery charging status8. Supports backlight adjustment and real-time battery voltage monitoring9. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Package includes:
1 x ESP32-S3-LCD-7B/ESP32-S3-Touch-LCD-7B (optional)
3 x HY2.0 2P to 2PIN male cable1 x HY2.0 3P to 3PIN male cable2 x HY2.0 4P to 4PIN male cable1 x Screws pack
