Specifications:

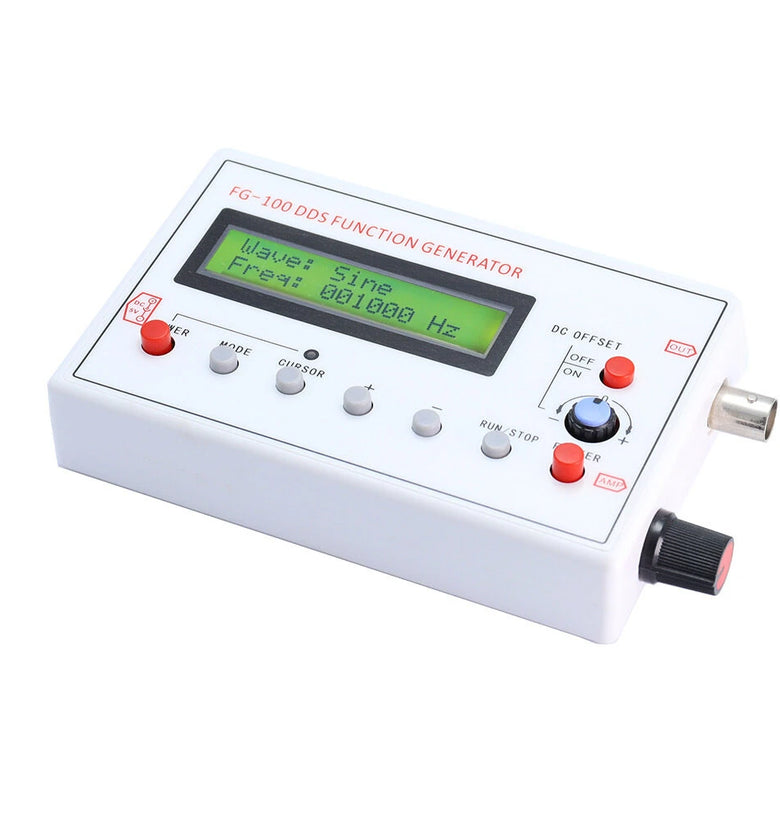

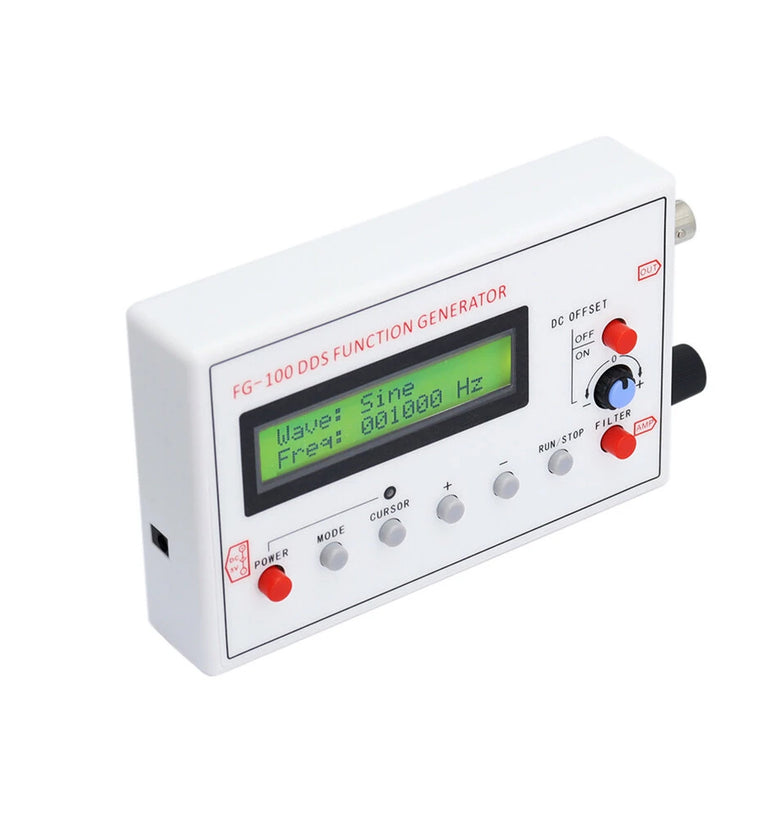

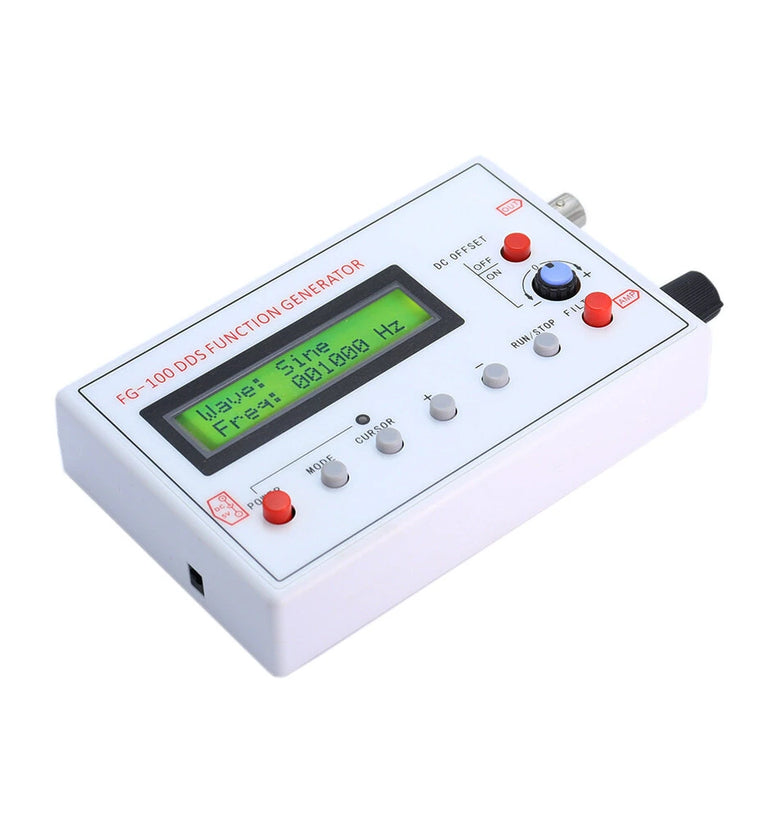

Model: FG-100
Frequency Range:
Sine Wave: 1Hz-500kHz (Flat up to 200kHz, reduced amplitude beyond)
Other Waveforms: 1Hz-20kHz
Resolution: 1Hz
Output Waveforms: Sine wave, square waves, triangle wave, forward sawtooth wave, reverse sawtooth wave, noise wave, ECG
Sine Wave Distortion:
<1% below 1kHz
<0.5% above 1kHz
Output Amplitude: Max ±10V (P-P)
Output Impedance: 50 ohms
DC Offsets: Max ±10V, with shutdown function
Power Supply:
DC 3.5-10V
Recommended: Adapter DC 5V, 3.7V lithium battery
External Dimensions: 125 x 80 x 32 mm
Weight: 0.2kg (including accessories)
Features:
1.Versatile Output Waveforms: The FG-100 function signal generator offers a variety of output waveforms including sine wave, square waves, triangle wave, forward sawtooth wave, reverse sawtooth wave, noise wave, and ECG. This versatility makes it suitable for testing and debugging various electronic circuits and audio amplifiers.
2.Compact and Portable Design: Designed to be compact and lightweight, the FG-100 is easy to carry and handle. Despite its small size, it is feature-rich and includes everything necessary for effective testing, making it an ideal tool for both field and lab environments.
3
