Specifications:
MCU: ESP32-S3 dual-core LX7 microprocessor
Wireless Communication: 2.4GHz Wi-Fi, BLE 5
Flash Memory: 16MB
PSRAM: 8MB
Power Pin: IO04
Peripheral Capabilities: Boot button, infrared transmission and reception
RF Transceiver: CC1101 low-power Sub-1 GHz RF transceiver
Frequency Bands: 300-348MHz, 387-464MHz, 779-928MHz
NFC/RFID Transceiver: PN532 NFC/RFID I2C Transceiver
Display: 1.9 inch ST7789V IPS TFT LCD
Resolution: 170(H) x 320(V)
Power Supply: USB/Battery dual-mode

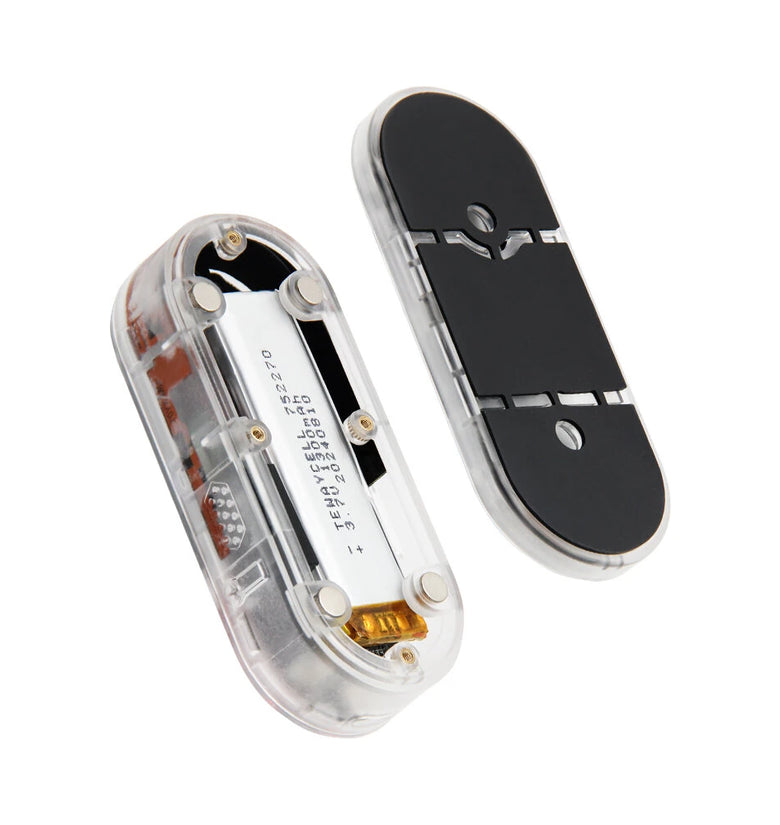

Battery: Built-in 1300mAh LiPo battery

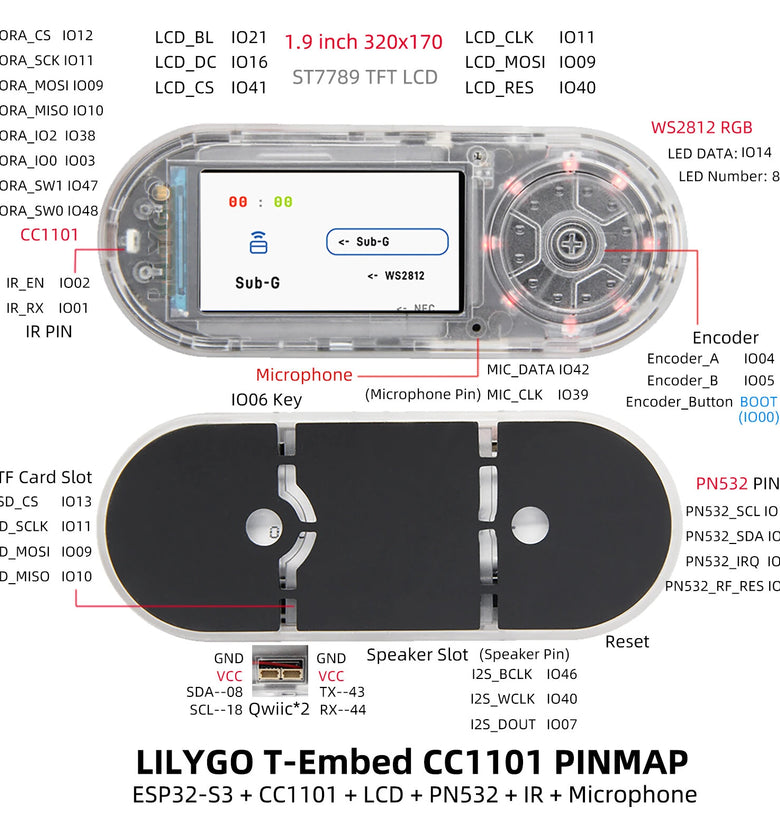

Pinout: Multiple GPIO pins for various peripherals
Microphone Pin: IO06
Infrared Pins: I02 (IR_EN), IO15 (IR_RX)
TF Card Slot Pins: IO13, IO11, IO09, IO10
LCD Pins: IO21, IO16, IO41, IO11, IO09, IO40
Features:
1.Advanced Wireless Capabilities
The T-Embed CC1101 integrates the ESP32-S3 dual-core LX7 microprocessor, featuring robust 2.4GHz Wi-Fi and BLE 5 compatibility. This ensures speedy wireless communication for all your IoT applications.
2.Comprehensive Display Interface
Equipped with a 1.9-inch ST7789V IPS TFT LCD, this module offers a vivid display with a resolution of 170(H) x 320(V). Ideal for real-time status monitor
