Nextion NX3224T028 2.8 Inch HMI Intelligent Smart USART UART Serial Touch TFT LCD Screen Module
;
;
;
;
;
;
;

SKU:

Nextion NX3224T028 2.8 Inch HMI Intelligent Smart USART UART Serial Touch TFT LCD Screen Module

R 927.72



Product type: Electronic Components & Supplies

Weight:

  • Courier Delivery
  •
  • In Stock
  •

    Isaiah 55:8-9 John 3:16 Philippians 4:19
    Trust_Badges
    Payment_Icons
    Buyer Protection and Guarantees Privacy Policy




    Overview:

    Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.
    Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
    It's easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART.

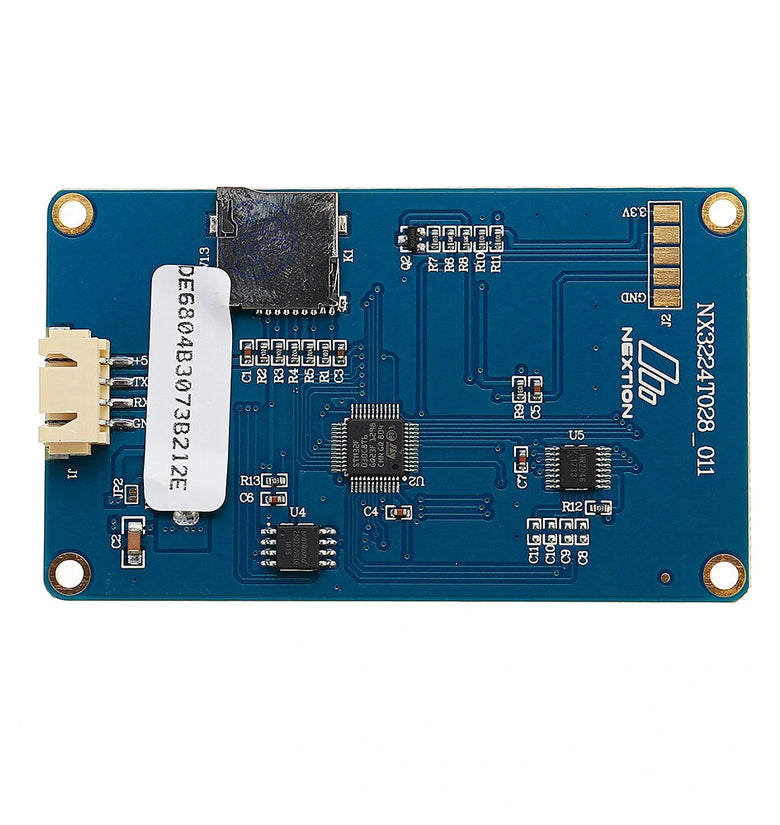

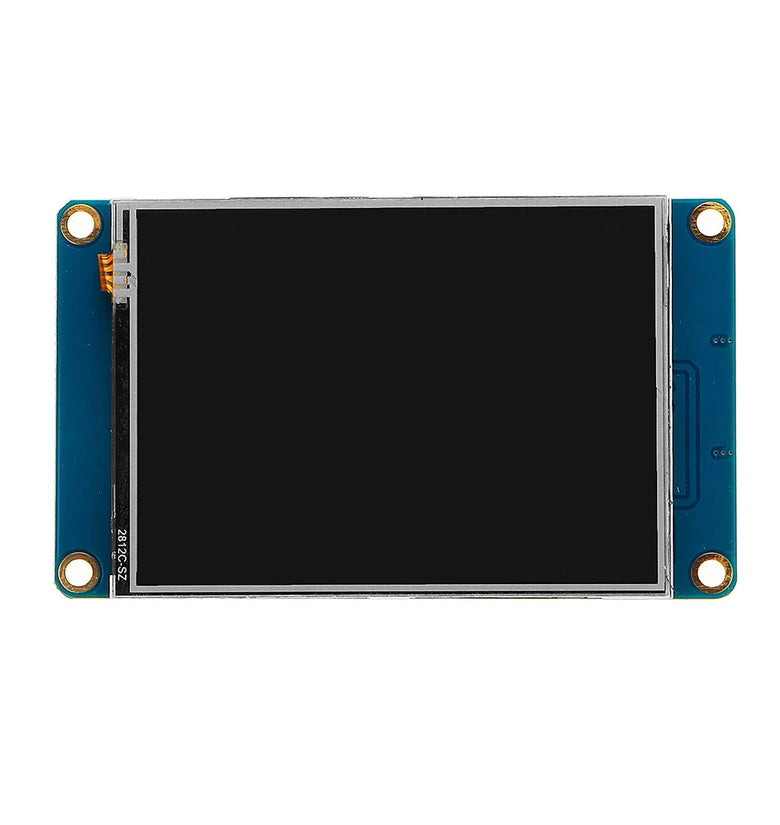

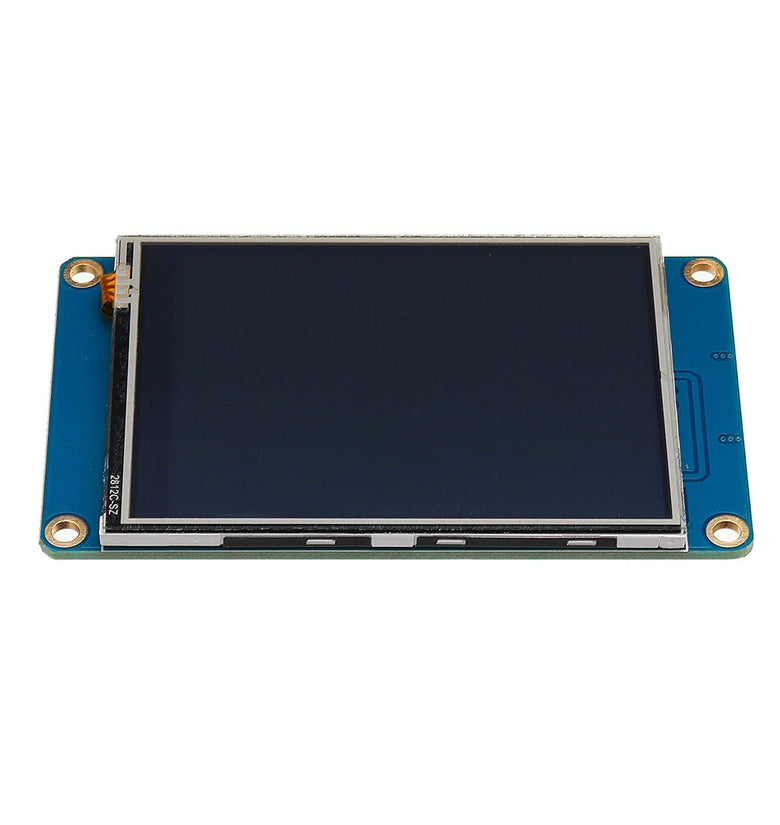

    NX3224T028 is a powerful 2.8'' HMI, which is member of Nextion family. Features include: a 2.8" TFT 320x240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors.

    Features:

    320 x 240 Resolution
    RGB 65K true to life colours
    TFT Screen with integrated 4-wire Resistive Touch Panel

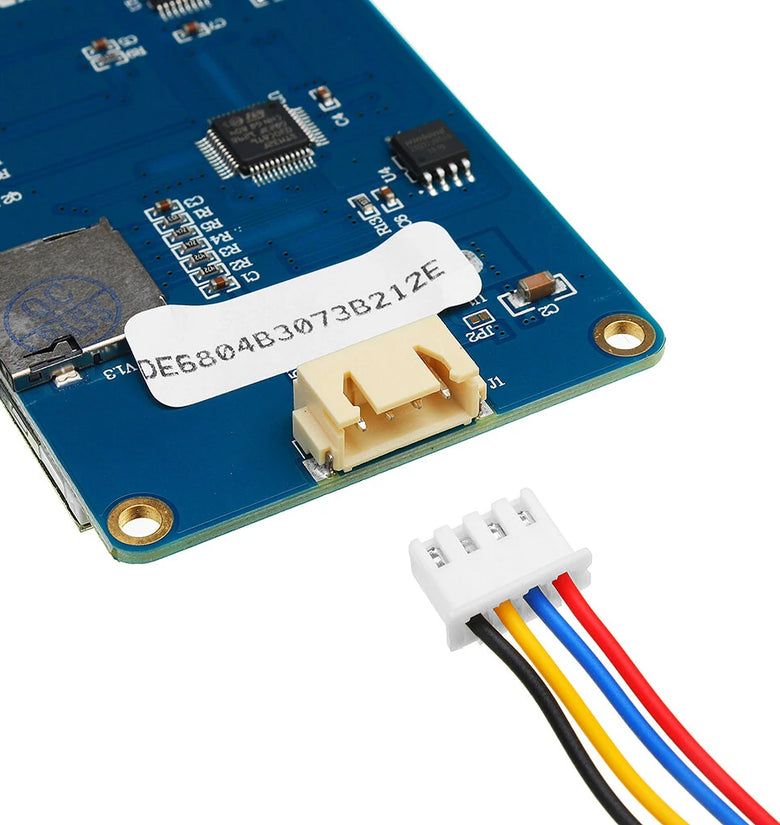

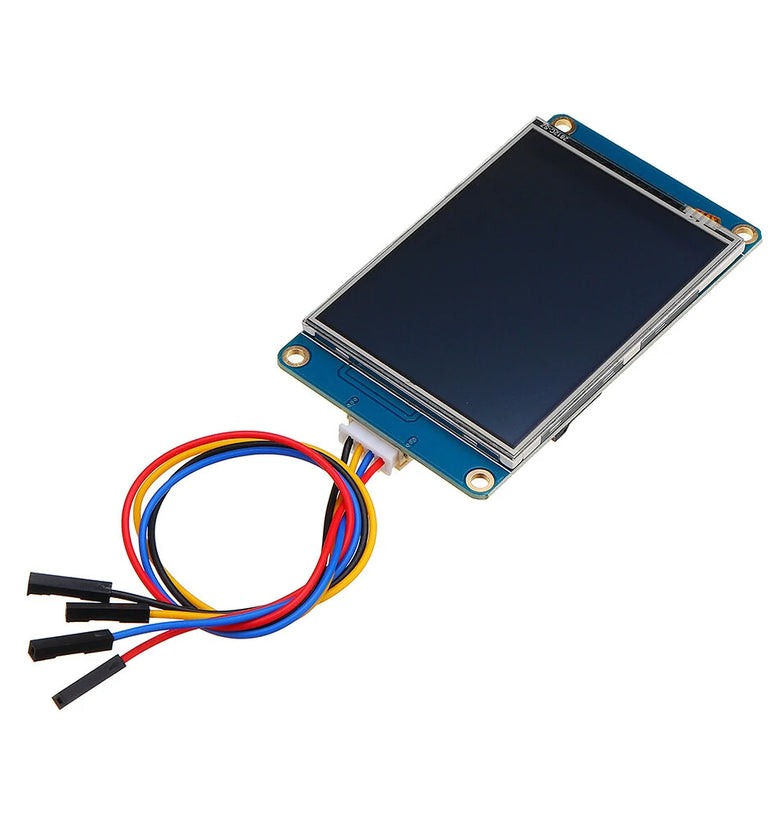

    Easy 4 pin interface to any TTL Serial Host
    4M Flash memory for User Application Code and Data
    On board micro-SD card for firmware upgrade

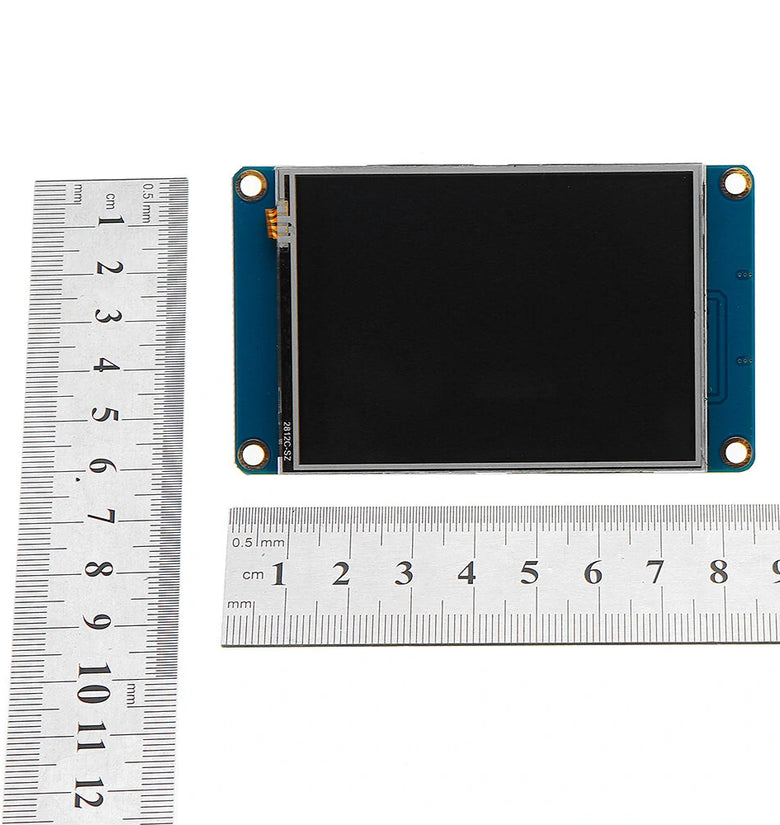

    Visual Area:57.6mm(L)×43.2mm(W)
    Adjustable Brightness:0~180 nit, the interval of adjustment is 1%
    5V65mA power consumption
    Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2.
    Powered directly off the Raspberry Pi, no external power supply is required
    Generic using for all or Raspberry Pi project.


    Display Resolution 320 * 240
    Display Interface Serial
    Screen Type Touch Screen
    Display Controller No
    TFT display interface N/A
    Display Size 2.8’’
    Board Size 85mm*49.8mm
    Expand SD Card Socket
    Touch Screen
    Weight 71g

    Note:

    there are a small power supply test board and a wire for you to test if the electricity supply is enough or not.
    Please see below image how to use it.

    Package included:

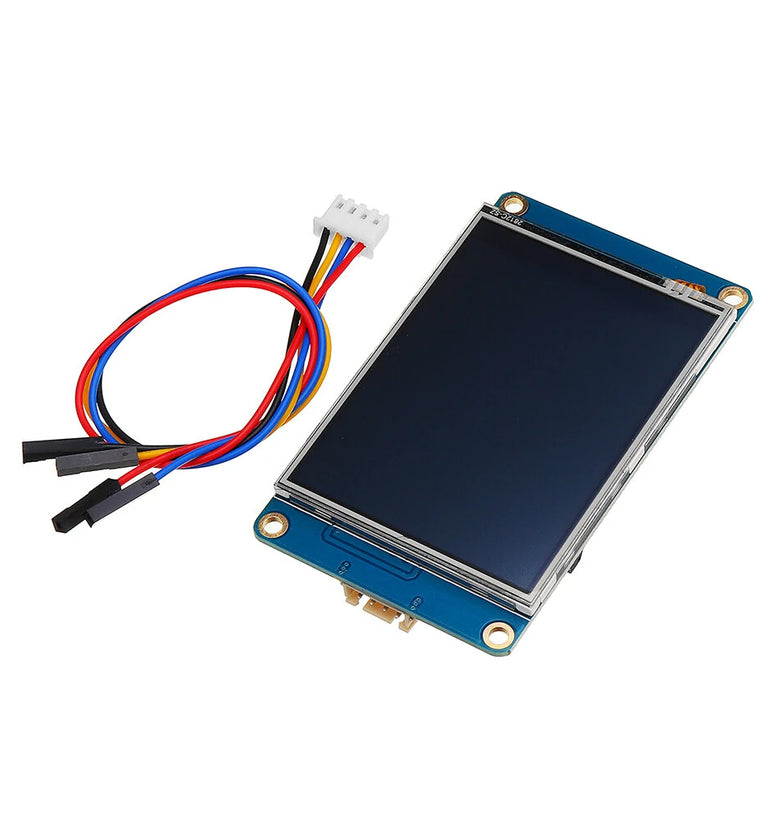

    1 x 2.8 Inch Nextion HMI Intelligent Smart USART UART Serial Touch TFT LCD Screen Module For Raspberry Pi Kits
