Feature:
| Master Chip | Rockchip RK3588(8nm LP process) |
| CPU | • 8-core 64-bit processor • 4 Cortex-A76 and 4 Cortex-A55 with independent NEON coprocessor • Cortex-A76 at 2.4GHz, Cortex-A55 at 1.8GHz |
| GPU | • Integrated ARM Mali-G610 • Built-in 3D GPU • Fully compatible with OpenGL ES1.1/2.0/3.2, OpenCL2.2 and Vulkan 1.2. |
| NPU | Embedded NPU supports INT4/INT8/INT16/FP16hybrid computing with up to 6TOPS |
| PMU | RK806-1 |
| RAM | LPDDR5 496PIN: 16GB |
| Memory | • QSPI Nor FLASH: 16MB • MicroSD card slot • M.2 M-KEYslot: Support NVMe SSD (PCIe 3.0 4Lane) • eMMC Flash Sockets (default) • Onboard eMMC (customizable) (This item not support) Note: Either eMMC socket or on-board eMMC, support: 32GB, 64GB, 128GB, 256GB optional |
| USB | 2*USB3.0, 2*USB2.0 |
| Video | • 2* HDMI2.1, up to 8k@60FPS • 1*MIPI DSI TX 4 Lane |
| Camera | • 2* MIPI CSI 4 Lane • 1*MIPI D-PHY RX 4 Lane |
| Audio | • CODEC: ES8388 • 1* Audio 3.5mm jack with mic • 1*MIC In • 1*HDMI2.1 eAC |
| Ethernet | 1*PCIe 2.5G LAN (RTL8125BG) |
| Wi-Fi+BT Module | • Onboard Wi-Fi 6E+BT 5.3/BLE module: AP6611 • Wi-Fi interface: SDIO3.0 • BT interface: UART/PCM |
| Expansion Port | • Dual-row pin: 2.54mm 40Pin • Supports DC 5V and 3.3V power output • Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces. |
| Button | 1* BOOT key, 1 *On/Off key |
| Power Source | Supports Type-C power supply, 5V @ 5A |
| LED | RGB LED Side Illumination |
| FAN | 5V 2PIN 1.25mm socket |
| RTC | 3V 2PIN 1.25mm socket |
| Debugging | Debug serial UART included in 40PIN expansion port |
| Supported OS | Orangepi OS(Droid), Orangepi OS(Arch), Ubuntu, Debian, Android12 |
Package includes:

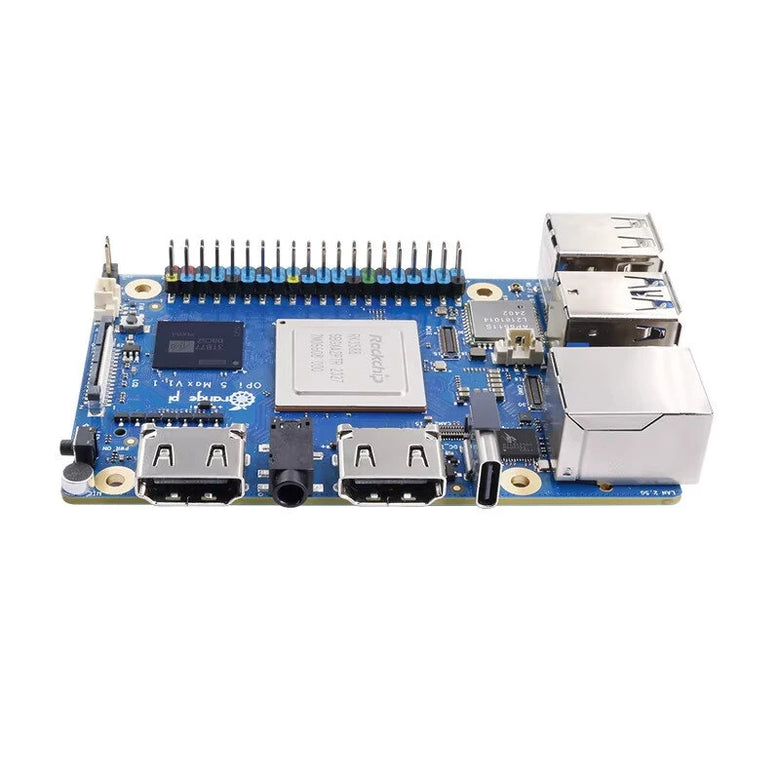

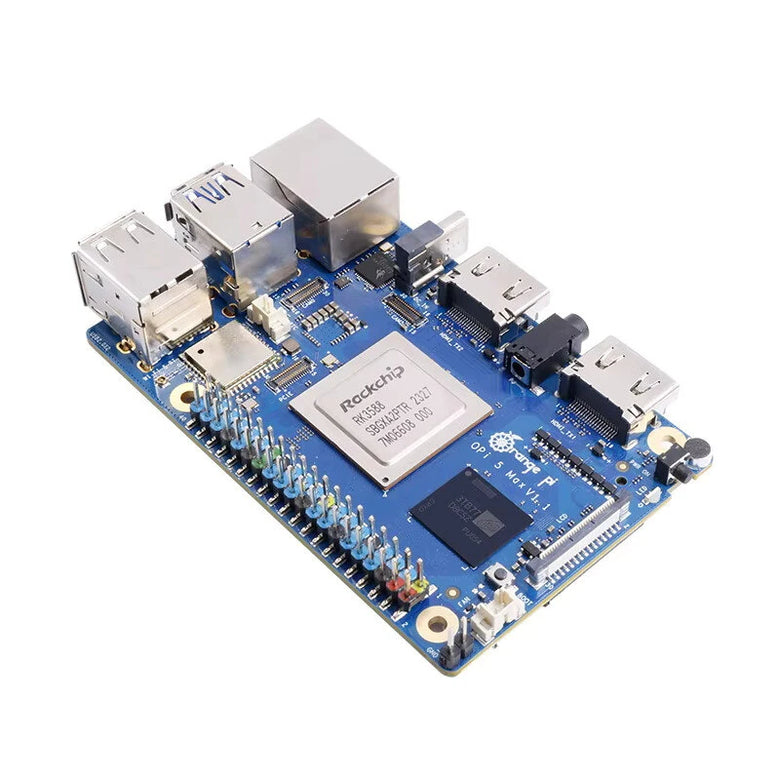

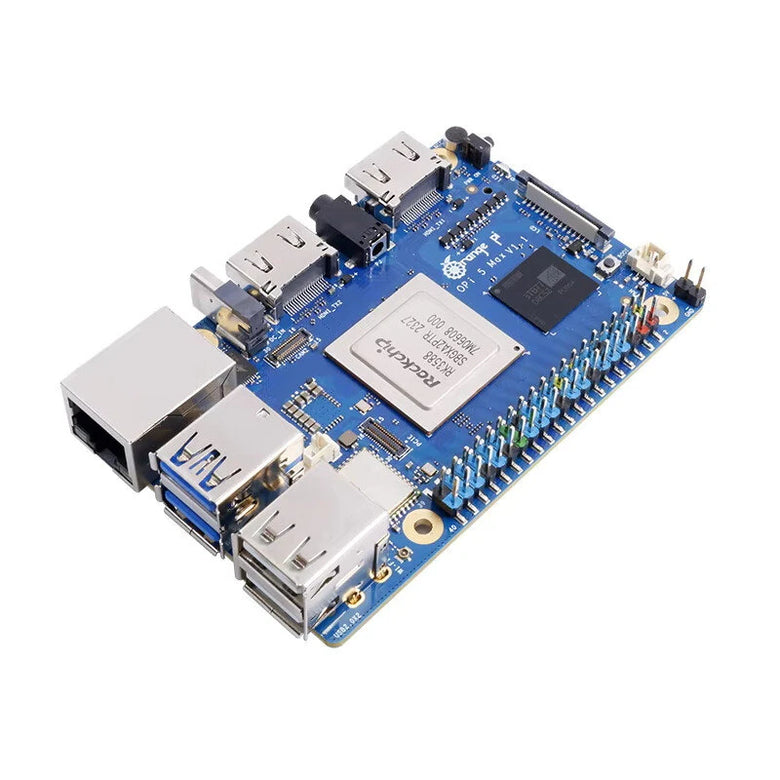

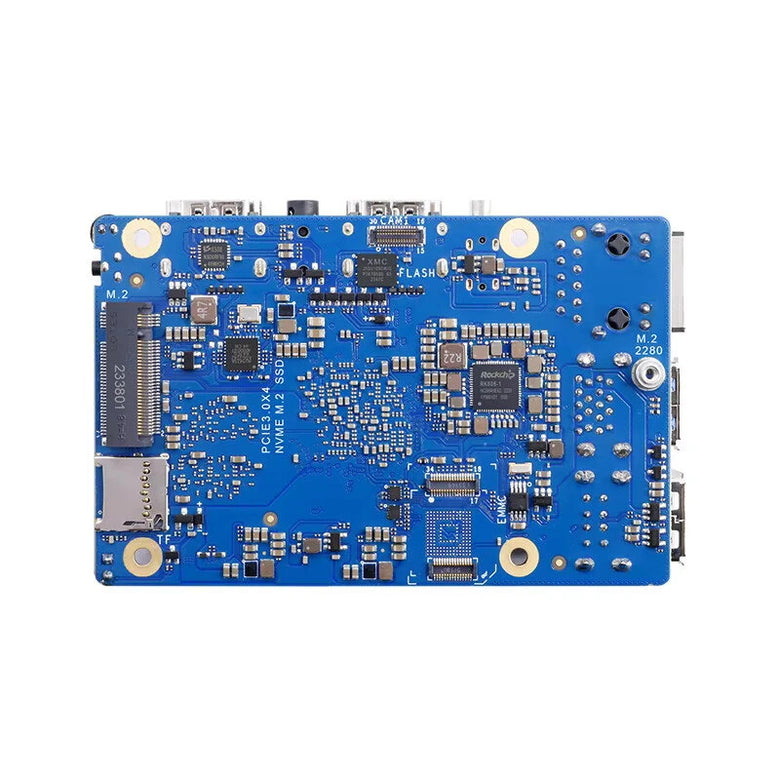

1 x Orange Pi 5 MAX Development Board
