Specification:

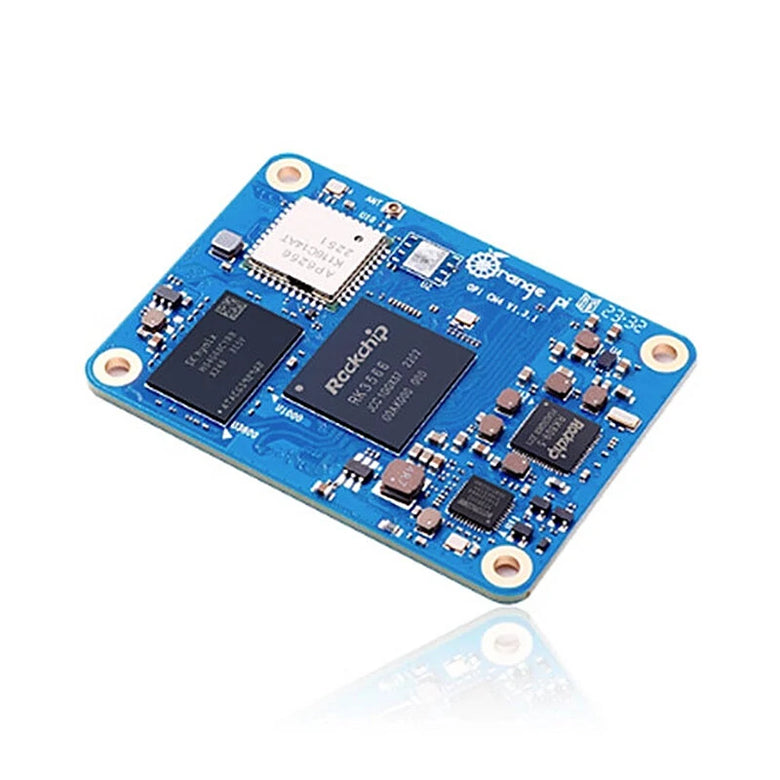

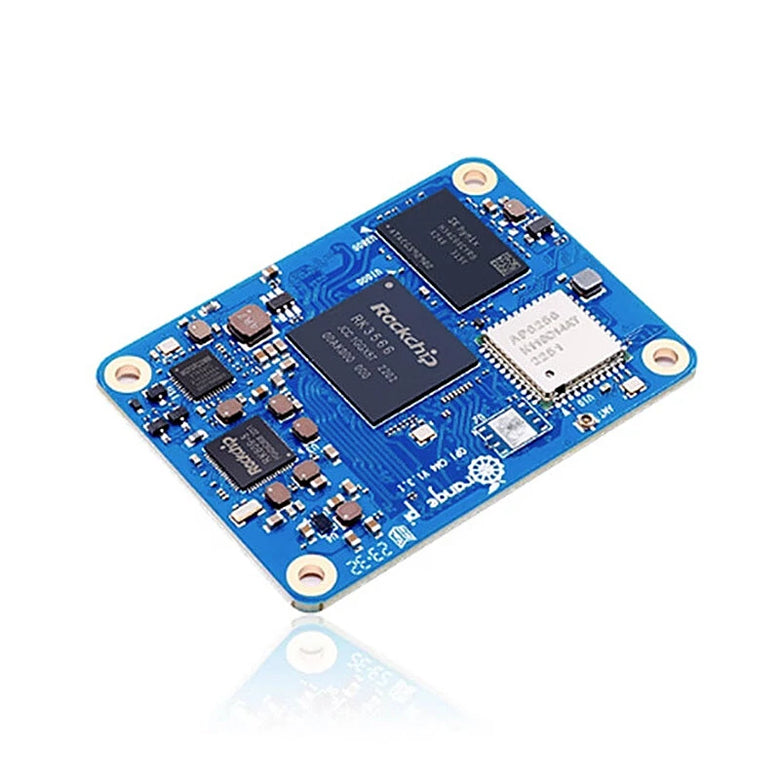

| Product Name | Orange Pi CM4 |
| SoC | RockChip RK3566 |
| CPU | Quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GHz main frequency |
| GPU | • ARM Mali G52 2EE graphics processor • Supports OpenGL ES 1.1/2.0/3.2, OpenCL2.0, Vulkan 1.1 • Embedded high performance 2D acceleration hardware |
| NPU | • Integrated RKNN NPU Al gas pedal, 0.8Tops@INT8 performance • Supports Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/ Darknet architecture model conversion with one click |
| VPU | • 4K@60fps H.265/H.264/VP9 video decoding • 1080P@100fps H.265 video encoding • 1080P@60fpsH.264 video encoding |
| PMU | RockChip RK809-5 |
| RAM | 1GB/2GB/4GB/8GB LPDDR4 RAM options |
| Memory | • On-board eMMC: 64GB • SPI Flash: default empty post |
| Wi-Fi+Bluetooth | Wi-Fi 5+BT5.0, BLE (20U5622) |
| Ethernet transceivers | 10/100/1000Mbps Ethernet ( On-board PHY chip : YT8531C) |
| Interface | 100Pin*2,24Pin*1, contains the following signals: • 10/100/1000Mbps Ethernet MDI signals • 1* HDMI 2.0 interface up to 4K@60fps • 1* 2-lane MIPI DSI display interface • 1*4-lane MIPI DSI display interface • Embedded Display Port (eDP) • 1*4-lane MIPI CSI camera interface • SATA3 or PCIe • USB3.0*1+USB2.0*3 • RESET, MASKROM, RECOVERY • Headphone jack Audio input and output signals • DC 5V input power supply, DC3.3V and 1.8V output power supply |
| Supported OS | Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Betal, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems. |
| PCB dimension | 55* 40mm |
Features:
1. Powerful Processing: The Orange Pi CM4 features a RockChip RK3566 chip with a quad-core Cortex-A55 processor and a powerful Mali G52 GPU, making it suitable for a wide range of applications.
2. Memory Options: Provides various RAM options from 1GB to 8GB to meet different performance requirements.
3. Wireless Connectivity: Equipped with Wi-Fi 5 (802.11ac) and bluetooth 5.0 for wireless communication capabilities.
4. Versatile Interfaces: Offers a wide range of interfaces including HDMI, MIPI DSI, MIPI CSI, SATA3/PCIe, USB, and more, making it adaptable for diverse projects.
5. Operating System Support: Supports multiple operating systems, including Android, Ubuntu, Debian, HarmonyOS, and Orange Pi OS, providing flexibility for developers.
Package Include:
1x Module Board
