Specification:

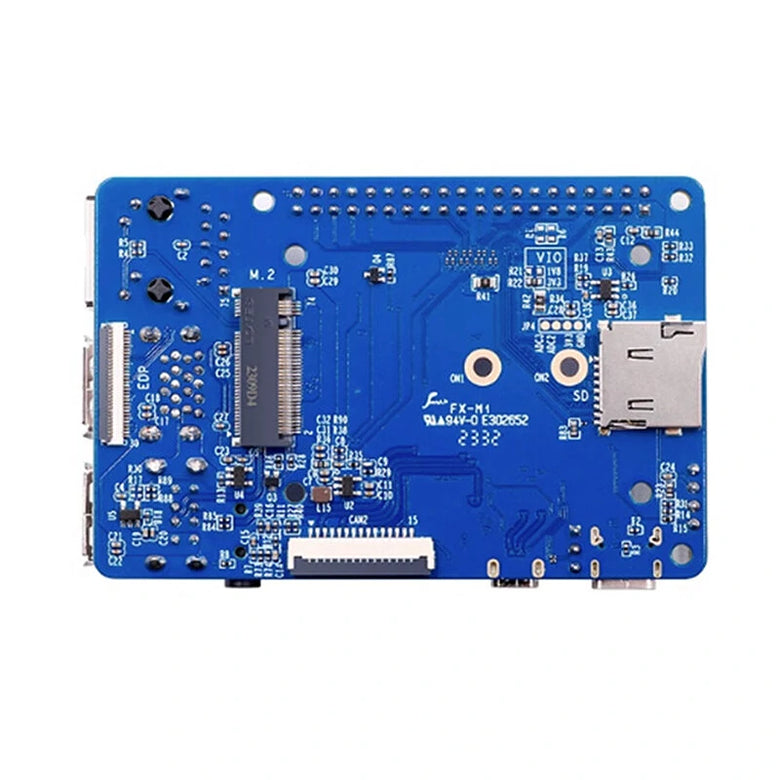

| Product Name | C3667 Orange Pi CM4 Base Board |
| Memory | - M.2 M-KEY Slot: Supports SATA3 or PCIe 2.0 NVME SSDs - TF card slot |
| Ethernet Interface | 10/100/1000Mbps Ethernet RJ45 socket |
| Video output | 1x Micro HDMI TX 2.0, supports up to 4K@60FPS 1x MIPI DSI 2 Lane eDP 1.3 |
| Camera | 2x MIPI CSI 2 Lane |
| USB | 1x USB 2.0 (Supports Device or Host mode) 1x USB 3.0 Host 2x USB 2.0 Host |
| Audio | 3.5mm headphone jack for audio input/output |
| Buttons | 1x MaskROM button 1x RECOVERY button 1x Reset button |
| FAN | 4-pin 2.54mm specification 5V fan interface |
| 40-Pin Interface | Supports GPIO, UART, I2C, SPI, PWM |
| Power | Type-C 5V 3A |
| Supported OS | Android 11, Ubuntu 22.04/20.04, Debian 11/12, open-source HarmonyOS 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH), based on OpenHarmony and other operating systems. |
| PCB Dimensions | 85mm x 56mm |
| Weight | 46 grams |
Features:
1. Storage Options: The base board features an M.2 M-KEY slot that supports both SATA3 and PCIe 2.0 NVME SSDs, providing high-speed storage expansion options.
2. Display Connectivity: Offers versatile display options, including Micro HDMI for 4K@60FPS output, MIPI DSI, and eDP 1.3 support.
3. Camera Support: Equipped with dual MIPI CSI interfaces, making it suitable for camera-related projects and applications.
4. Multiple USB Ports: Provides a variety of USB ports, including USB 2.0 and USB 3.0, for connecting peripherals and external devices.
5. 40-Pin Interface: Features a 40-pin expansion interface supporting GPIO, UART, I2C, SPI, and PWM, enhancing its compatibility with various accessories and sensors.
Package Include:
1x Module Board
