Specifications:
| Model | RK6006/RK6006-BT |
| Input voltage range | 12-68.00V |
| Output voltage range | 0-60.00V |
| Output current range | 0-6.000A |
| Output power range | 0-360W |
| Input voltage measurement resolution | 0.01V |
| Output voltagesetting measurement resolution | 0.01V |
| Output current setting measurement resolution | 0.001A |
| Input voltage measurement accuracy | ±(1%+5 digits) |
| Output voltage accuracy between setting and measurement | ±(0.3%+3 digits) |
| Output currentaccuracybetween setting and measurement | ±(0.5%+5 digits) |
| Output ripple typical | 100mV VPP① |
| Working temperature range | -10℃~40℃ |
| External sensor Temperature range | -10℃~100℃/0℉~200℉ |
| External sensor Temperature accuracy | ±3℃/±6℉ |
| Constant voltage moderesponse time | 2ms（0.1A-5A Load） |
| Constant voltage mode load regulation | ±(0.1%+2 digits) |
| Constant current mode load regulation | ±(0.1%+3 digits) |
| Capacity measurement range | 0-9999.99Ah |
| Energy measurement range | 0-9999.99Wh |
| Capacity and energy statistical error | ±2％ |
| Buck working mode | （input voltage÷1.1）-1② |
| Over temperature protection | System temperature>80℃ |
| Screen brightness setting | 0-5(6 level in total) |
| Screen | 1.54 inch 240*240 color HD display |
| Cooling fan start condition | Output current>4Aor System temperature>45℃ |
| Cooling fan shut down condition | Output current<3.9Aand System temperature<45℃ |
| Weight(with package) | About 0.15kg |
| Product dimension | 79 x 43 x 54mm |
| Support USB communication | yes |
| Support Bluetooth communication: | Only RK6006-BT supports |
| ① Ripple measurement method: noise and ripple are measured at X1 range, AC coupling, 20MHz of bandwidth on your oscilloscope, with a 0.1uF parallel capacitor at the output terminals | |
| ② for example: input voltage is 24V，the max output voltage is 20.8V | |
Features:

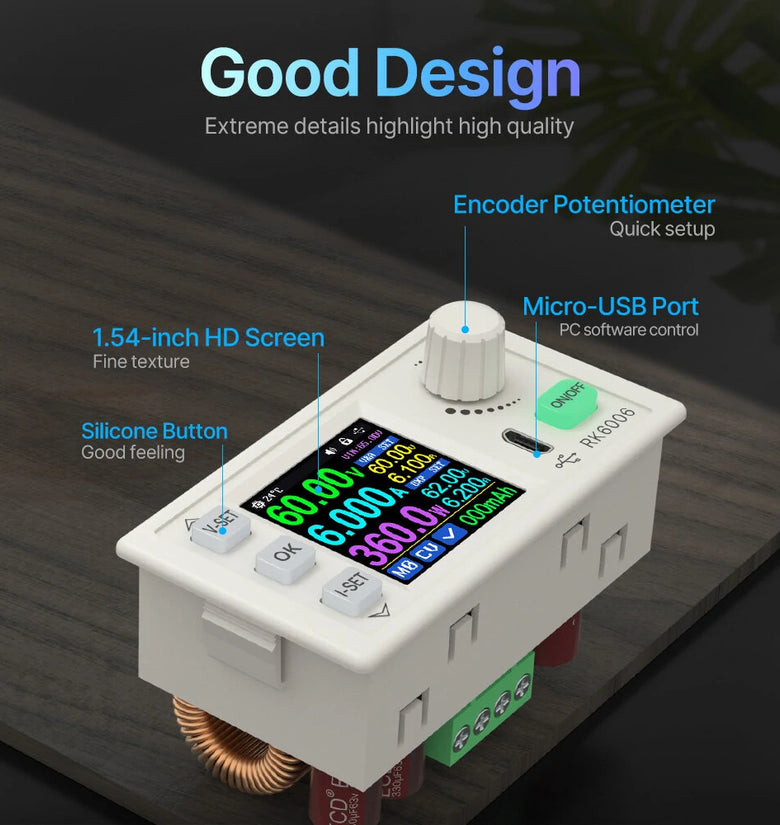

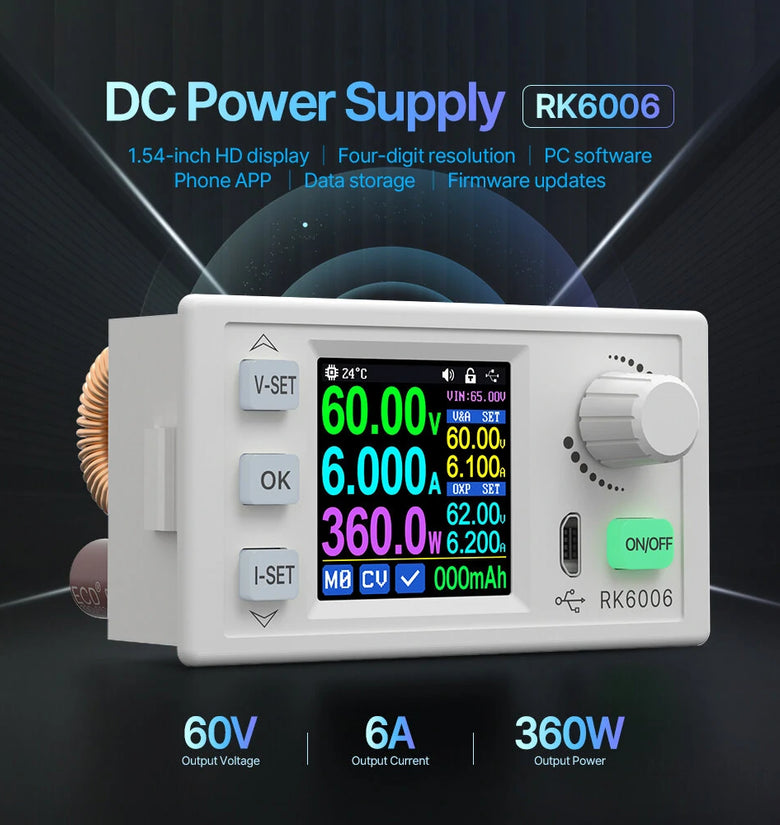

RK6006 supports firmware upgrade, so that new functions can be added, and the product will be more powerfulMore convenient, PC, mobile phone, APP control multiple operation1.54-inch LCD display screen, larger screen, 240*240P higher display resolutionHigher Range, voltage/current higher output. Output voltage 060.00V, output current 0-6.000A, 4-digit display360°Rotating Screen. Maintain the best viewing angle at all times, meet any angle to read measurement data
Note:
1. RK6006 manual, PC software, APP download Link
2. IOS APP download: search 'RUIDENG' in APP STOR
Android app download Link
Package Included:
RK6006
1 x RK6006 USB Communication
1 x 10A Fuse
RK6006-BT
1 x RK6006-BT USB+BT Communication
1 x Bluetooth Board
1 x 10A Fuse
1 x External Temperature Sensor
