Specifications:
Digital I/O Pins: 14
Microcontroller: ATmega328P
Operating Voltage: 5V
PWM Digital I/O Pins: 6
Input Voltage (recommended): 7-12V
Analog Input Pins: 6
Input Voltage (limit): 6-20V
DC Current per I/O Pin: 20 mA
DC Current for 3.3V Pin: 50 mA
Features:
1. The Starter Kit includes a microcontroller board based on the ATmega328P with 14 digital input/output pins, 6 analog inputs, a 16 MHz quartz crystal, a USB connection, and a power jack.
2. The board operates on a 5V supply voltage, which is ideal for most embedded projects and is compatible with most sensors.
3. The kit features a 0.96'' 1602 LCD Display for user interaction and real-time data display.
4. It supports a wide range of input voltage (from 7V to 12V) making it flexible for various power sources.
5. The Starter Kit also includes a PWM digital I/O pins for controlling devices like motors and LEDs.

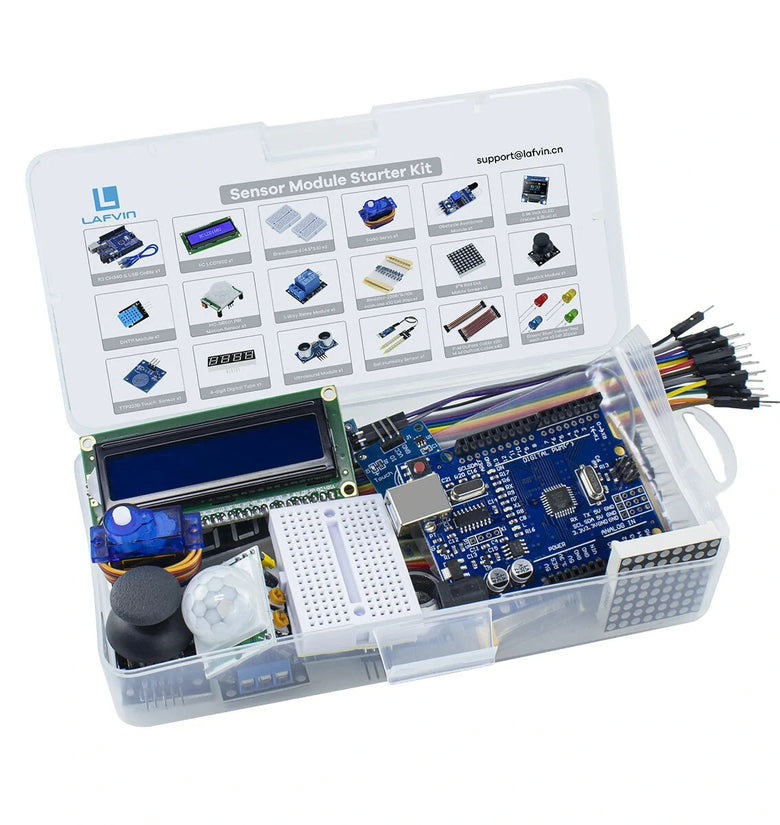

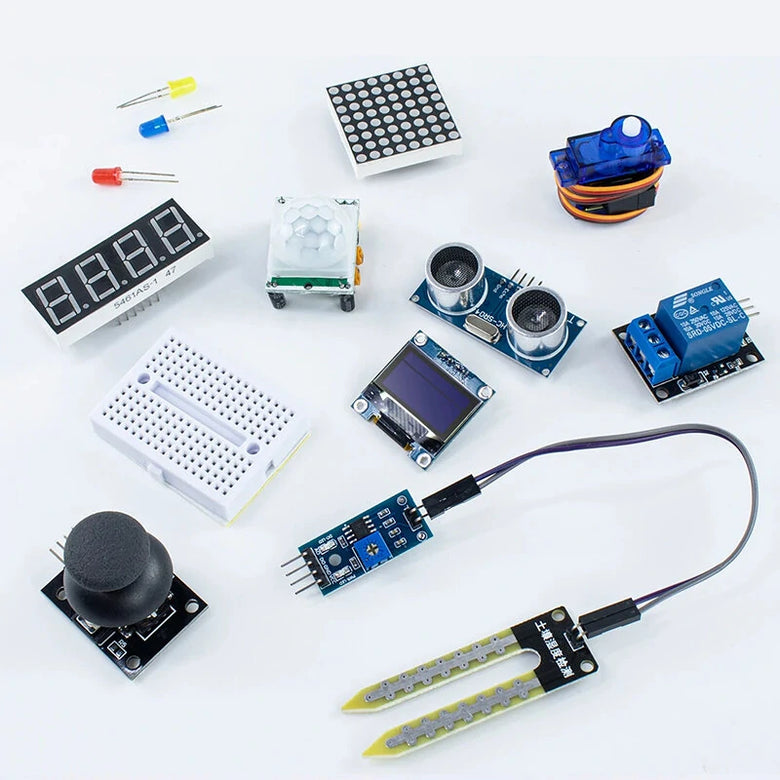

Package Include:
1x R3 CH340
2x Breadboard
1x IIC LCD 1602
1x Ultrasound Module
1x SG90 Servo
1x 1-way Relay Module
1x HC-SR501 PIR Motion Sensor
1x 0.96 OLED
1x 8*8 Red Dot Matrix Screen
1x Joystick Module
1x USB Cable
1x 4-digit Digital Tube
1x TTP223B Touch Sensor
20x F-M Dupont Cable
40x M-M Dupont Cable
10x Resistor-220R/1K/10K(all 30pcs)
1x Soil Humidity Sensor
1x DHT11 Module
1x Obstacle Avoidance Module
5x Green/Blue/Yellow/Red(all 20pcs)
