Specification:

>>>Manual: Click here to open<<<

Brand: Sinlink
Product Name: NC DC Buck Power Supply
Model: XY6015LV
Input Voltage: 6.0~70V
Output Voltage: 0.0~60V
Input Current: 0~15.00A
Maximum Power Output: 0~900W
Maximum Output Voltage: Input Voltage×0.945
Output Ripple Typical Value: 100mv VPP
Voltage Measurement Resolution: 0.01V
Current Measurement Resolution: 0.01A
Output Voltage Measurement Accuracy: ±0.4%+1 Word
Output Current Measurement Accuracy: ±0.5%+3 Word
Input Voltage Measurement Accuracy: ±1%+5 Word
Heat Dissipation Fan Threshold:
Active above: Current >2A or Power >50W or Temperature >50°C
Inactive below: Current <1.5A or Power <45W or Temperature <45°C
Dimensions:
Bare Board: 109*72*37mm
Screen Instrument: 86*45*28mm
Bare Board Package: 142*107*46mm
Bare Board Weight: 153g (without packaging); 180g (with packaging)
Protection Mechanisms:
Over-temperature, under-voltage, over-voltage, over-current, over-power, over-capacity, over-energy, timeout protection.

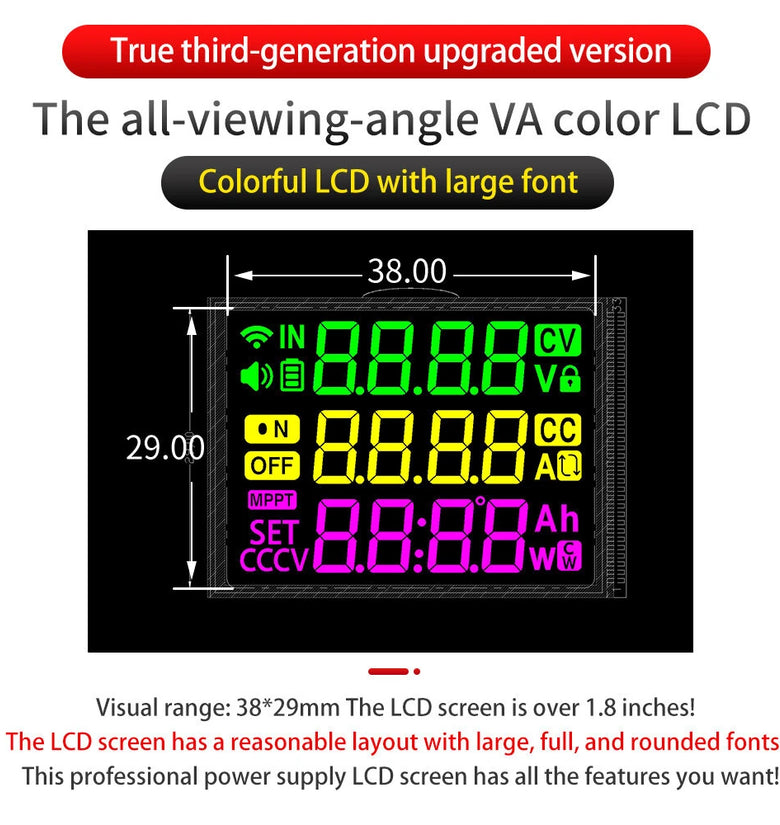

Visual Range: LCD: 38*29mm (over 1.8 inches)

External temper -ature protection: 0-110℃ off by defaultInput overvoltage protection: default 71VInput undervoltage protection: (Adjustable 4.8-71V, default 4.8V)Output overvoltage protection: (65V, default is 65V)overcurrent protection: (Adjustable from 0 tol6.0A, default 16.0A)Over power protection: (0-950 W, default is 950W)Over temperature protection: 60-110 °C, the default is 95 ℃Timeout protection: (Adjustable from 0 to lOOh, off by default)Overcapacity protection: (Adjustable from 0 to 9999Ah, disabled by default)Super energy protection: (Adjustable from 0 to 9999Wh, off by default)

Precautions:1. The input cannot be connected to AC power, nor can it be connected to 220V mains power.

2. The maximum input voltage must not exceed 75V. It is recommended to use within 70V, and the positive and negative terminals must not be connected reversely.

3. The output has no reverse current protection. When connecting the battery, ensure that the power supply's output voltage is always higher than the battery voltage. Alternatively, a diode can be connected in series with the positive output terminal to allow one-way conduction, preventing reverse current from the battery voltage from damagingthe power supply.

4. When connecting the battery to the output terminal, pay attention not to connect the positive and negative terminals reversely.

5. This product is a DC buck power supply. The maximum output voltage = input voltage * 0.945.
Features:

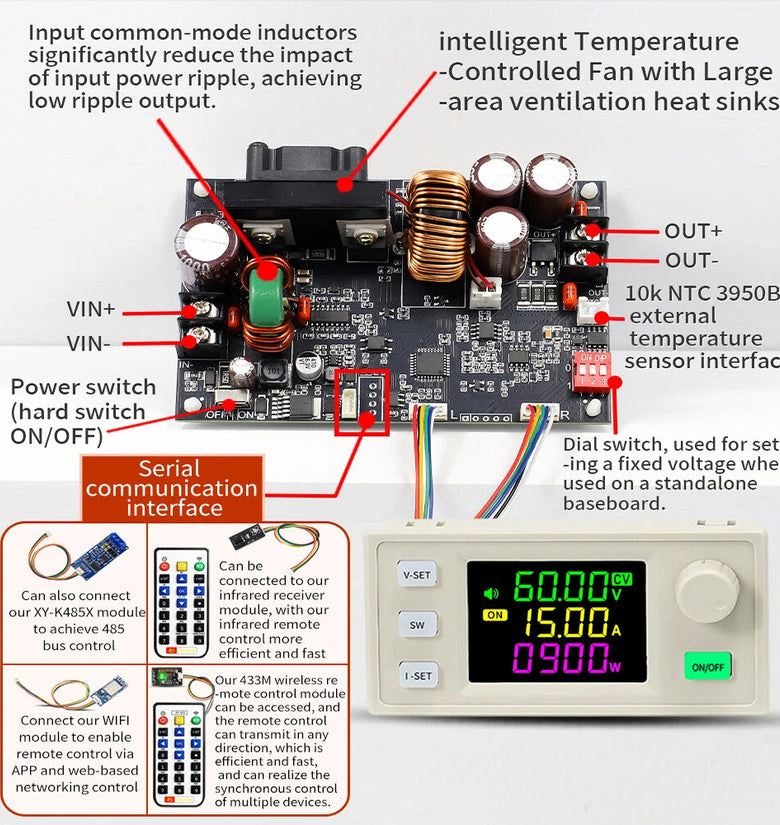

1. Versatile Output Control: Set output voltage through DIP switch and fixed voltage outputs at 5V / 9V / 12V / 24V / 36V / 48V / 60V.

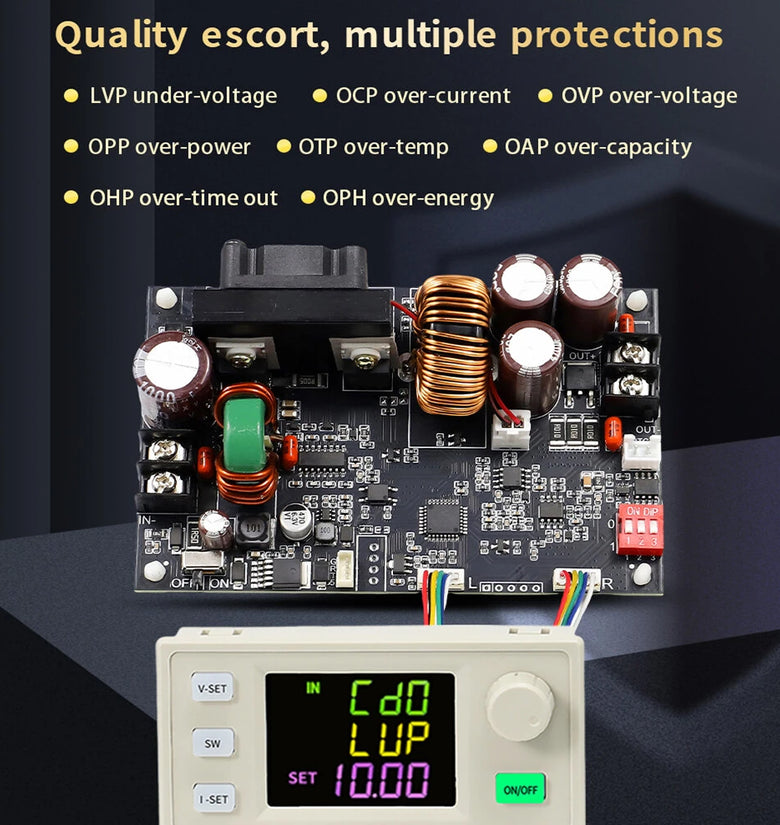

2. Comprehensive Protection: Equipped with multiple safety features including over-temperature, over-voltage, under-voltage, over-current, over-power, over-capacity, over-energy, and timeout protections.

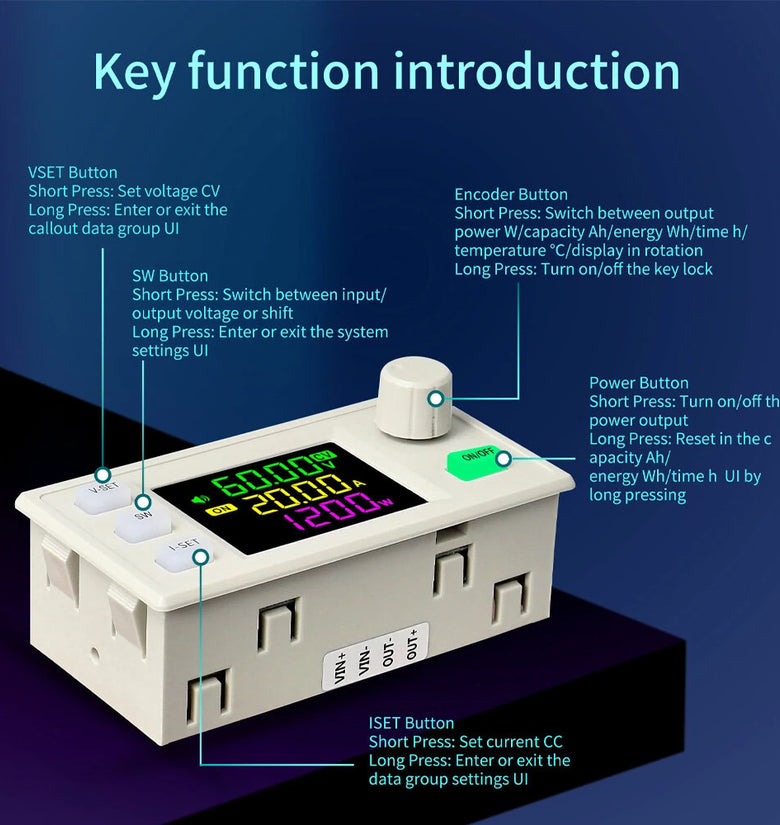

3. Advanced Display: All-viewing-angle VA color LCD with large font for easy reading.
4. MODBUS Protocol: Supports standard MODBUS protocol for serial communication, enabling easy integration and control.
5. Temperature Control: Intelligent temperature-controlled fan for effective heat dissipation.
6. Firmware Upgrade Support: Allows for easy updates, ensuring the device stays current with the latest features and enhancements.

Package Include:
1 x Module Board
1 x LCD Screen Instrument
