Specifications:
- Measuring Range: 0.02m ~ 7.8m
- Measuring Accuracy: ±4cm (0.02m ~ 7.8m)
- Wavelength: 940nm
- Field of View (FOV): 2° ~ 3°
- Communication Interface: Default UART (3.3V TTL signal level); I2C (cascading support, slave address 0x08+module ID); Complementary I/O level output (distance parameter not available)
- Baudrate: UART: 4.8Kbps ~ 3000Kbps (default 921.6Kbps); I2C: up to 400Kbps
- Power Supply: 4.3 ~ 5.2V
- Power Consumption: 100mW (UART active output, 5.0V power supply, 20mA current)
- Weight: 1g
- Operating Temperature: -10°C ~ 60°C
- Dimensions: 18.8mm x 12mm x 10.3mm (L x W x H)

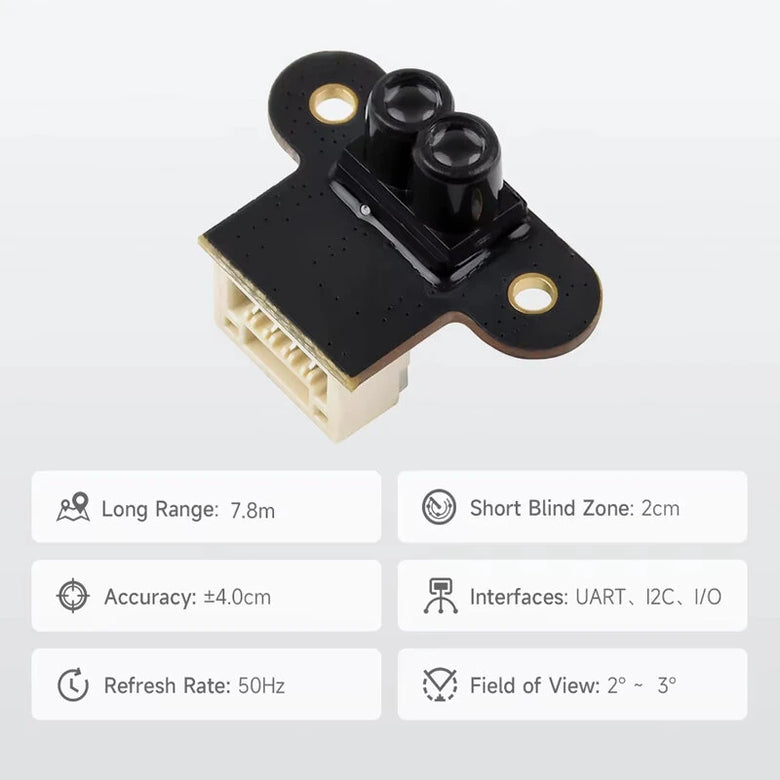

Features:
1. Extended Measuring Range: The TOF Mini Laser Range Sensor boasts a measuring range from 0.02m to 7.8m, making it suitable for a wide array of applications, from close-up inspections to long-distance measurements.
2. High Accuracy: With a typical measuring accuracy of ±4cm, this sensor provides precise distance readings, ensuring reliable performance in diverse environmental conditions.
3. Versatile Communication: Supports both UART (with a default baud rate of 921.6Kbps) and I2C interfaces, enhancing integration flexibility with various microcontroller and communication setups.
4. Compact and Lightweight Design: At just 1 gram and with dimensions of 18.8mm x 12mm x 10.3
